BLK-FD-50 Industrial Freeze Dryer: Engineering, Efficiency, and Production Advantages for Large-Scale Lyophilization

Introduction

Large-scale freeze-drying requires far more than a spacious drying chamber. Industrial users need consistent temperature control, dependable vacuum performance, efficient refrigeration, short batch intervals, safe operation, and a design that can be integrated into an existing production facility. The equipment must also protect the quality of heat-sensitive products while controlling energy use and operating costs. For this reason, the selection of an industrial freeze dryer is a strategic production decision rather than a simple equipment purchase.

The BLK-FD-50 is a compact industrial freeze-drying system developed for large-scale applications in the food, agricultural, pharmaceutical, medicinal-material, biological, and chemical sectors. It combines a 50.5-square-meter freeze-drying area with an intelligent control platform, a cylindrical chamber structure, configurable refrigeration and vacuum systems, and several energy-recovery technologies. Its design is intended to deliver reliable industrial performance without sacrificing flexibility in factory layout or process management.

With a standard loading capacity of approximately 500 kilograms and a liquid loading capacity of up to 1,000 liters, the BLK-FD-50 is positioned between conventional medium-sized systems and very large production installations. This makes it suitable for manufacturers that need significant throughput but also require a comparatively compact, adaptable, and manageable production solution.

The system is manufactured by Jiangsu Bolaike Refrigeration Science and Technology Development Co., Ltd., a Chinese high-tech enterprise specializing in vacuum freeze-drying and refrigeration technology. The manufacturer integrates research and development, engineering, manufacturing, installation, commissioning, and after-sales service. Its experience in refrigeration and freeze-drying equipment supports the development of systems intended for continuous industrial operation and international installation.

This article examines the BLK-FD-50 in detail, including its construction, process capabilities, control systems, energy-saving technologies, manufacturing standards, application range, and advantages over less integrated freeze-drying equipment.

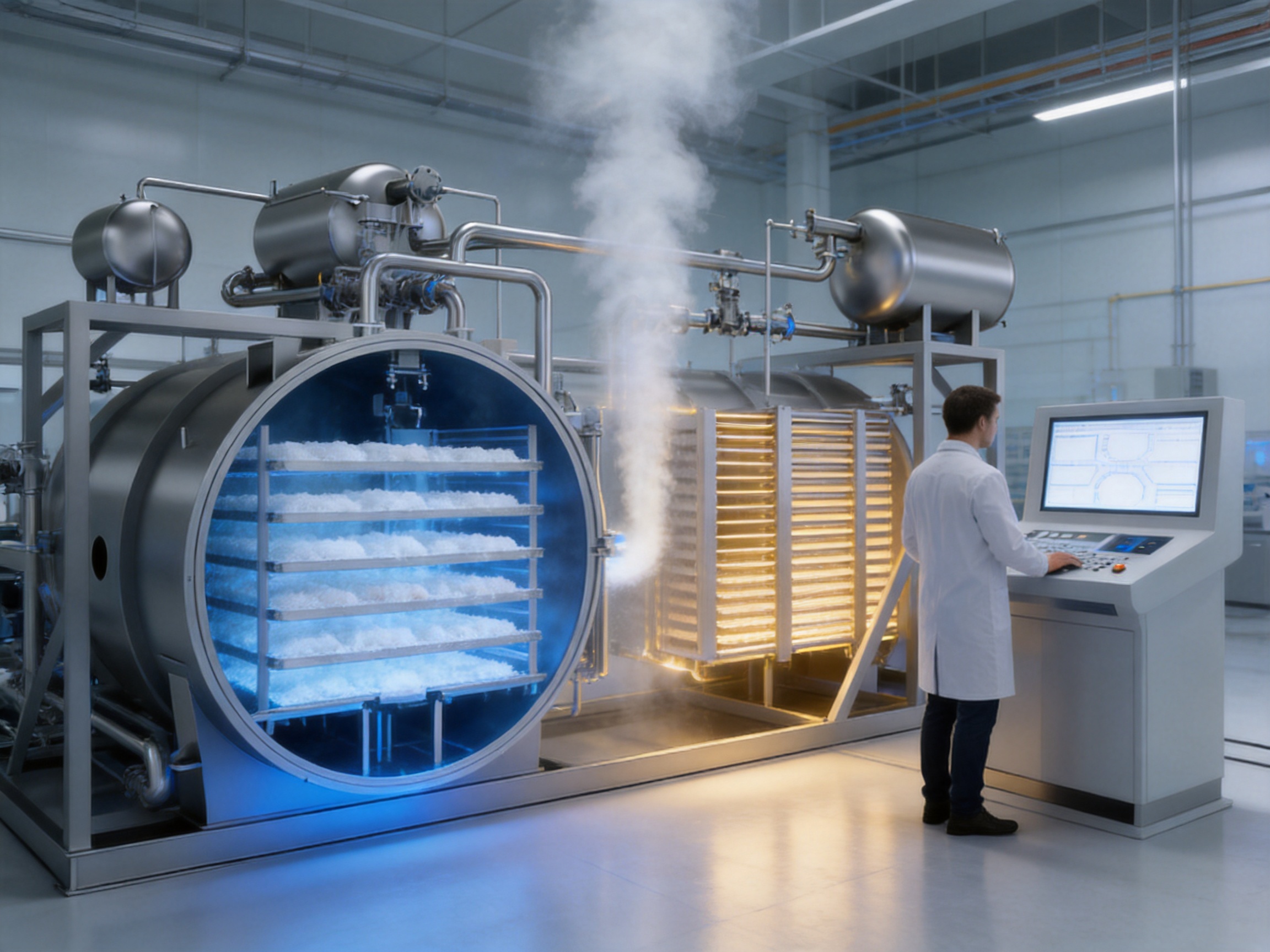

BLK-FD-50

Product Overview and Core Specifications

The BLK-FD-50 is described as compact industrial freeze-drying equipment, but its operating scope is suitable for serious production environments. The system provides a nominal freeze-drying area of 50.5 square meters. This area allows manufacturers to process substantial quantities of material per cycle while maintaining a layout that can be adapted to different factory conditions.

The standard loading capacity is 500 kilograms. Actual throughput depends on product density, moisture content, tray loading height, freezing characteristics, primary drying conditions, secondary drying requirements, and the selected process recipe. The equipment can also accommodate liquid loading of up to 1,000 liters, allowing it to process liquid formulations, extracts, beverages, biological preparations, and other pumpable materials before freezing and drying.

The ultimate vacuum level is specified at no more than 10 pascals. In freeze-drying, vacuum performance directly influences sublimation conditions, product temperature, drying time, and the ability to remove water vapor from the product. A stable vacuum is especially important during primary drying, when large quantities of ice are converted directly into vapor.

One important advantage of this configuration is that the equipment can be adapted to different production strategies. A food processor may prioritize throughput, energy consumption, and product appearance. A pharmaceutical or biological manufacturer may focus more heavily on recipe repeatability, temperature uniformity, vacuum stability, and documentation. The BLK-FD-50 is designed to support these different priorities through configurable mechanical systems and control functions.

Why Freeze-Drying Performance Depends on System Integration

Freeze-drying is a multi-stage process that normally includes freezing, primary drying, and secondary drying. During freezing, the product is cooled until its water becomes ice. During primary drying, the pressure is reduced and heat is introduced in a controlled manner so that ice sublimes without passing through a liquid phase. During secondary drying, residual moisture is removed to achieve the required final water content and storage stability.

Every stage affects the others. If the product is frozen unevenly, the resulting ice structure may be inconsistent. If the shelf temperature is not uniform, some trays may dry too quickly while others remain wet. If the vacuum system cannot maintain the required pressure, vapor removal may become inefficient. If the refrigeration system is undersized or poorly controlled, freezing and condenser performance may be compromised.

For this reason, the BLK-FD-50 is not simply a chamber connected to a vacuum pump. It is an integrated system consisting of a drying chamber, shelves or radiation plates, heat-transfer circuits, refrigeration units, cold-trap functions, vacuum pumps, valves, sensors, control software, and supporting utilities. The interaction of these subsystems determines the practical performance of the machine.

The equipment’s design emphasizes coordinated operation. The intelligent control system can manage the operating status of connected equipment, while variable-frequency refrigeration and vacuum configurations can adjust output according to process demand. This approach helps avoid the inefficiency associated with systems that run every component continuously at full power regardless of the actual production requirement.

Chamber Construction and Structural Reliability

The BLK-FD-50 uses a cylindrical chamber structure. A cylindrical pressure vessel can provide favorable mechanical strength and stable resistance to external atmospheric pressure when the chamber is operated under deep vacuum. Properly engineered cylindrical construction also supports long-term structural reliability in an environment involving repeated vacuum cycles, temperature changes, cleaning, and production loading.

The chamber is constructed from 8-millimeter-thick 304 stainless steel. Stainless steel is widely used in food, pharmaceutical, and biological processing because of its corrosion resistance, cleanability, and compatibility with hygienic production environments. The specified material thickness contributes to structural stability and supports a long service life when the equipment is properly operated and maintained.

The chamber typically accommodates two material trolleys. Manual or automatic trolley configurations can be selected according to the production layout, labor model, and automation plan. Trolleys help operators load and unload trays in an organized manner, reducing handling time and improving repeatability between batches.

Chamber and equipment layout positions can be customized. This is important because industrial facilities differ in ceiling height, access routes, cleanroom zoning, utility locations, floor loading capacity, and material-flow design. A fixed standard layout may create installation difficulties or require expensive building modifications. A configurable arrangement can help the customer integrate the freeze dryer into a new plant or retrofit it into an existing facility.

The use of one-piece radiation plates without welded joints is another structural and process-related feature. Eliminating welded joints in the principal heat-transfer surface can reduce potential weak points, simplify cleaning, and support more consistent thermal performance. The special heat-transfer fluid circuit is designed to keep the temperature deviation between shelves within approximately plus or minus 1 degree Celsius.

Inter-shelf temperature uniformity is critical in commercial freeze-drying. If one shelf is significantly warmer or colder than another, identical trays may experience different drying rates. This can result in variable residual moisture, uneven texture, inconsistent color, or product loss. A narrow temperature deviation helps create a more predictable process environment across the useful loading area.

Vacuum Performance and Pump Configuration

The vacuum system is one of the most important subsystems in a freeze dryer. It must remove air and non-condensable gases, establish the required operating pressure, and help transport water vapor toward the cold trap. The BLK-FD-50 supports different vacuum-pump combinations to match the size of the equipment, process requirements, and desired evacuation speed.

Possible combinations include a screw pump with a Roots pump set, a rotary-vane pump with a Roots pump set, or a water-ring pump with a Roots pump set. Each configuration offers different advantages. Screw pumps can provide continuous, oil-reduced operation and are suitable for demanding industrial service. Rotary-vane pumps are widely used and can deliver strong vacuum performance when properly maintained. Water-ring pumps may be advantageous in applications where vapor handling, robustness, or local utility conditions are important.

A Roots booster can increase pumping capacity and help the system establish the required vacuum more rapidly in a large chamber. The specific configuration should be selected according to the material, vapor load, desired cycle time, operating environment, and maintenance preferences.

The equipment supports power adjustment according to vacuum demand. Rather than operating the vacuum system at a fixed maximum output throughout the entire cycle, the system can respond to changing process requirements. During initial evacuation, greater pumping capacity may be useful. During stable primary drying, the required pumping intensity may differ. Intelligent variable-frequency combinations can reduce unnecessary power consumption while maintaining the process setpoint.

Compared with a basic freeze dryer that uses a single fixed-speed pump, this flexible architecture can offer several practical benefits. It can reduce stress on the pump, improve control over pressure changes, lower operating costs, and provide a more suitable response to different product recipes. It also gives the customer more options when planning future production expansion.

Refrigeration and Cold-Trap Design

Refrigeration performs two essential functions in freeze-drying. First, it lowers the product temperature during the freezing stage. Second, it cools the cold trap or condenser so that water vapor generated during sublimation can be captured as ice before it reaches the vacuum pumps.

The BLK-FD-50 can use a refrigeration unit that supplies cooling to both the cold storage area and the freeze-drying equipment. This integrated approach can simplify plant utility planning and improve the utilization of refrigeration capacity. In larger or multi-unit installations, intelligent variable-frequency refrigeration units can dynamically manage the drying process of several freeze dryers.

Cold-trap performance is essential to protect vacuum equipment and preserve process stability. If the cold trap cannot capture vapor quickly enough, vapor may migrate toward the pump system, increasing the load on pumps and reducing vacuum performance. Proper refrigeration capacity, temperature control, insulation, and defrost management are therefore fundamental to reliable production.

The BLK-FD-50 supports multiple refrigeration panel configurations. External refrigeration systems may be selected when the customer wants easier access to refrigeration components, simplified heat management, or a particular plant arrangement. Built-in refrigeration systems may be preferred when a more compact integrated footprint is required. The availability of both patterns allows the machine to better match site and process requirements.

The manufacturer also promotes residual cold recovery and intelligent refrigeration control as standard or integrated design features. By recovering and reusing available cooling energy, the system can reduce the load placed on compressors. This is particularly valuable in facilities where freeze-drying operates continuously or where several units share a common refrigeration infrastructure.

Heat Transfer and Temperature Uniformity

In freeze-drying, heat must be delivered carefully. Too little heat can extend the cycle and reduce productivity. Too much heat can cause product collapse, melting, loss of structure, or degradation of sensitive components. The goal is controlled heat transfer that supports sublimation while keeping product temperature within the permitted range.

The BLK-FD-50 uses one-piece radiation plates and a specially designed heat-transfer fluid circuit. The system is engineered to maintain inter-shelf temperature deviation within approximately plus or minus 1 degree Celsius. This helps reduce differences between tray positions and supports the repeatability of validated or established recipes.

Electric heating and steam heating are both available. Electric heating can be convenient where electricity is readily available and precise independent control is desired. Steam heating may be more economical or practical at facilities that already operate a central boiler or clean-steam system. The choice can be based on energy pricing, utility availability, plant infrastructure, sanitation requirements, and customer preference.

Heating flexibility is a competitive advantage because the most economical heat source varies by region and industry. A system designed around only one heating method may force the purchaser to make costly utility changes. By supporting both electric and steam options, the BLK-FD-50 can be specified more appropriately for different factories.

In addition to process heating, the equipment can use recovered heat or steam heat in selected applications. The manufacturer reports that heat-recovery technologies can reuse excess heat from the sublimation or heating phase for material drying. Depending on the product and required temperature, this can reduce wasted energy and improve the overall efficiency of the plant.

Energy-Saving Technologies and Operating Cost Control

Energy consumption is one of the most significant operating expenses in industrial freeze-drying. Refrigeration compressors, vacuum pumps, heating systems, water circulation, defrosting, and auxiliary equipment may operate for long periods. A machine that achieves good product quality but consumes excessive energy can become expensive over its service life.

The BLK-FD-50 incorporates several energy-saving concepts. Its residual cold recovery and intelligent control system are designed to reduce energy consumption by approximately 10 to 15 percent compared with traditional equipment in the relevant configuration. Broader system-level materials report potential energy reductions of approximately 20 to 40 percent and single-batch cycle reductions of approximately 15 to 25 percent, depending on the selected configuration, process, product, and operating conditions.

These figures should be evaluated as application-dependent performance targets rather than universal results. Actual savings depend on product moisture, batch size, cycle recipe, ambient conditions, utility costs, maintenance quality, operating schedule, and the performance of the existing comparison equipment. Even so, the combination of recovery technologies and variable-frequency control can provide a practical path toward lower operating costs.

Cold Energy Recovery

Traditional refrigeration designs may use cold energy once and then discharge it, forcing compressors to operate at a continuously high load. The BLK-FD-50 can recycle cold energy from one refrigeration stage to pre-cool the next refrigeration stage. This reduces the demand placed on the compressor and can lower the overall compressor load by approximately 20 to 30 percent under appropriate operating conditions.

Cold recovery is especially valuable in facilities with repeated batches. When production is continuous, the recovered energy from one cycle can contribute to the preparation of the next cycle. The result is a more balanced refrigeration load and less unnecessary cycling of major components.

Heat Recovery

Freeze-drying systems may reject heat generated during refrigeration, compression, or the heating phase. Rather than treating all of this heat as waste, a recovery system can redirect part of it toward material drying or other suitable plant functions.

According to the supplied technical information, when the required material heating temperature is no more than 35 degrees Celsius, the relevant recovery approach may save up to 99 percent of the energy associated with that heating demand under the stated conditions. For materials requiring temperatures below 80 degrees Celsius, approximately 10 percent energy savings may be achieved through waste-heat-enhanced vacuum freeze-drying configurations.

These claims must be evaluated during process engineering because the real result depends on the heat balance, product recipe, ambient conditions, and integration design. Nevertheless, heat recovery gives the purchaser an opportunity to reduce the amount of primary energy required for drying and to improve the total efficiency of the production line.

Heat Pump and Economizer System

The heat pump and economizer system is designed to improve compressor performance. The manufacturer reports a compressor coefficient of performance between 4.8 and 5.9 for this system, with energy efficiency improvements of approximately five to six times compared with traditional freeze-drying equipment under the stated comparison conditions.

A higher coefficient of performance means that more useful heating or cooling effect can be produced for each unit of input energy. In large-scale equipment, even a moderate improvement in compressor efficiency can produce substantial annual savings because refrigeration systems may operate for thousands of hours.

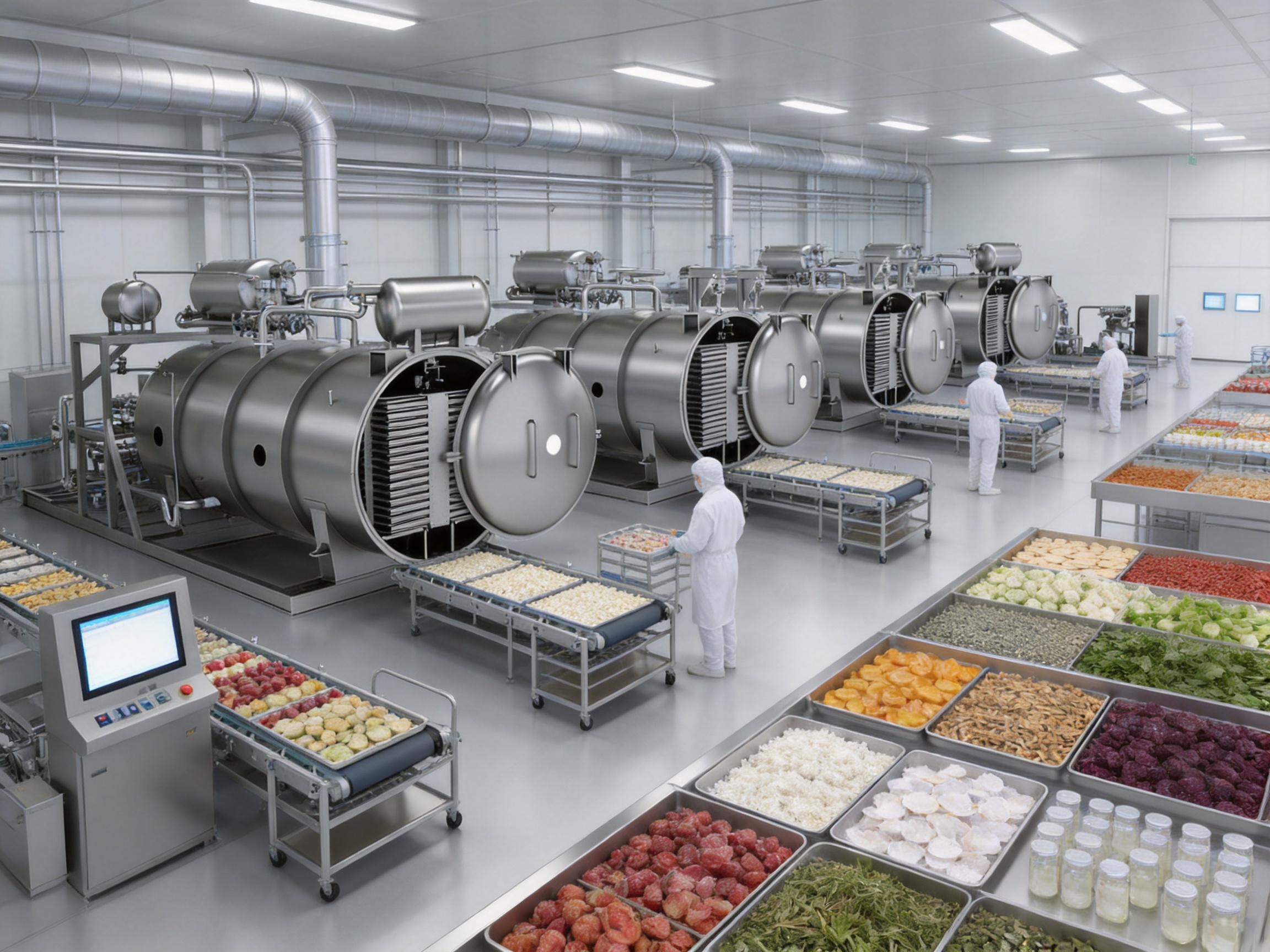

Parallel Operation and Production Continuity

Freeze-drying production can be interrupted when a unit enters defrosting, cleaning, unloading, or maintenance. In a single-machine plant, these periods may stop production completely. For customers with continuous demand, this creates a major scheduling challenge.

The BLK-FD-50 supports parallel operation of multiple units. The manufacturer indicates that two units can achieve the output of three conventional units in certain coordinated production arrangements. This statement reflects the advantage of staggered loading, unloading, drying, and defrosting cycles rather than a simple comparison of chamber size.

In a parallel system, one freeze dryer may be in the final drying stage while another is being loaded or beginning primary drying. When one unit is ready for cold-trap defrosting, other units that remain in operation can jointly undertake vapor capture and help maintain system stability. This creates a controlled defrosting window and reduces the likelihood that a single unit will interrupt the entire production schedule.

Parallel operation can also improve asset utilization. Instead of designing every unit to handle the maximum possible demand independently, the plant can coordinate equipment according to actual batch requirements. Production managers can assign different recipes to different chambers or organize a sequence that matches upstream preparation and downstream packaging capacity.

This configuration can be more competitive than purchasing several isolated freeze dryers with independent utilities. Shared vacuum technology, shared refrigeration capacity, coordinated controls, and staggered production may reduce capital duplication and improve the use of installed equipment.

Intermediate Isolation Valve and Shared Vacuum Technology

The BLK-FD-50 can be equipped with an optional patented intermediate isolation valve. This valve is designed to separate the drying chamber and cold trap under selected operating conditions. By controlling the relationship between these areas, the system can shorten batch intervals and improve the transition between production and defrosting operations.

The partitioned bulkhead with valve provides precise control of water-vapor direction and vacuum status. During normal freeze-drying, it supports the movement of vapor toward the cold trap. During cold-trap defrosting, it helps prevent unwanted vapor backflow toward the drying chamber. This protects product quality and supports safer equipment operation.

Shared vacuum technology is particularly useful in a multiple-unit installation. A common vacuum architecture can allow connected machines to use available pumping capacity more efficiently, provided that the system is correctly engineered with suitable valves, sensors, control logic, and isolation procedures.

Compared with a basic system in which chamber and cold trap remain permanently connected, an isolation-valve design offers greater operational flexibility. It can support more controlled defrosting, reduce the risk of moisture migration, and allow production planning to continue while one section of the system is serviced.

Intelligent Central Control System

The intelligent central control system is intended to provide coordinated management of all connected equipment. Freeze-drying involves multiple variables, including shelf temperature, product temperature, chamber pressure, condenser temperature, refrigeration output, heating output, valve position, pump status, and defrosting conditions. Managing these variables through a unified platform improves visibility and reduces the likelihood of operating conflicts.

A central system can coordinate the drying chamber, refrigeration unit, vacuum pumps, heat-transfer circulation, isolation valves, and related equipment. It can also support recipe management and operational monitoring. The precise functionality depends on the selected control configuration, but the overall objective is to make large-scale freeze-drying more consistent and easier to supervise.

Remote monitoring through a mobile application is supported. Remote access can help authorized personnel review equipment status, receive notifications, and respond more quickly to abnormal conditions. This is useful for facilities with multiple production lines, limited on-site technical staffing, or operations that continue across several shifts.

Multiple language options can be customized. This feature is valuable for international customers because operators, maintenance technicians, quality personnel, and managers may work in different languages. Clear and consistent interface terminology can reduce training time and support safer operation.

Intelligent control also contributes to energy management. Variable-frequency vacuum pumps and refrigeration units can adjust their output according to demand rather than operating continuously at maximum capacity. A control platform can coordinate these adjustments with process stages, helping to balance product requirements and energy consumption.

Manufacturing Quality and Inspection Procedures

Industrial freeze-drying equipment must withstand repeated pressure changes, low-temperature operation, heating cycles, moisture exposure, cleaning, and mechanical handling. Reliable performance depends not only on the final design but also on manufacturing discipline and inspection procedures.

The manufacturer describes five core inspection workflows and 58 inspection procedures intended to verify overall machine craftsmanship. A comprehensive inspection program may cover raw materials, pressure-vessel fabrication, welding or forming processes, surface treatment, component installation, electrical wiring, refrigeration circuits, vacuum lines, control systems, and final performance tests.

Pressure testing is particularly important. The refrigeration system is subjected to a pressure-holding test lasting more than 48 hours according to the supplied information. The entire machine undergoes high-pressure and low-pressure testing, with 48 hours dedicated to high-pressure testing. These procedures are intended to identify leaks, weak connections, sealing problems, or other defects before the equipment reaches the customer’s facility.

Pressure testing is not a substitute for proper operation and maintenance, but it is an important quality-control step. A vacuum leak or refrigeration leak can reduce production performance, increase energy consumption, extend cycle times, and compromise product quality. Detecting such issues during factory testing is more efficient than discovering them after installation.

The use of documented inspection workflows also supports repeatability between machines. Customers investing in multiple units need confidence that equipment delivered at different times will perform within comparable specifications. Standardized inspection can help reduce variation and simplify commissioning.

International Standards and Certifications

The BLK-FD-50 is designed according to international specifications. The supplied information identifies European Union CE certification and compliance with mechanical health and safety standards. CE conformity indicates that the relevant product has been assessed against applicable European requirements within the scope of the declaration and technical documentation.

The equipment is also associated with China Quality Management System certification. A quality-management framework helps organize production processes, inspection methods, corrective actions, document control, supplier management, and customer-service procedures.

For international purchasers, standards and certifications are important during supplier evaluation. They can support internal approval, import procedures, workplace-safety review, and project documentation. However, the final compliance requirements may vary by country, industry, and application. Pharmaceutical and biological facilities may require additional validation, documentation, materials certification, hygienic design review, or regulatory qualification.

Customers should therefore define their compliance requirements during the initial specification stage. The supplier can then confirm the available documents, inspection records, electrical standards, pressure-vessel requirements, automation documentation, and factory-acceptance procedures needed for the project.

Processing Capacity by Material Category

Freeze-drying capacity cannot be expressed accurately through equipment area alone. Two products occupying the same tray area may have very different weights because of differences in density, moisture content, slice thickness, particle size, and loading height. The same equipment can therefore produce different kilogram outputs depending on the material.

For the BLK-FD-50, the supplied processing model is based on a tray area of approximately 50 square meters and a loading height of 35 millimeters. The indicated capacity varies by material density and is intended as a reference for process planning rather than an absolute guarantee for every product.

These ranges illustrate why process trials are important. A manufacturer should conduct pilot testing or engineering validation before confirming commercial throughput. The trial should evaluate freezing time, product temperature, shelf temperature, pressure, primary drying duration, secondary drying requirements, final moisture, rehydration performance, appearance, texture, and microbiological or chemical quality where applicable.

Application Areas

Food and Beverages

Food processing is one of the most important applications for the BLK-FD-50. Freeze-drying can preserve flavor, aroma, color, shape, and nutritional value while producing lightweight products with long shelf life when properly packaged. Potential products include fruits, vegetables, instant meals, coffee ingredients, dairy-based materials, meat products, seafood, sauces, extracts, and functional food ingredients.

The equipment’s liquid loading capacity is relevant to beverage and extract applications. Liquid products can be frozen in trays and then dried under controlled vacuum conditions. The resulting porous structure may allow rapid rehydration, which is valuable for instant foods and beverages.

For food manufacturers, the combination of large shelf area, temperature uniformity, flexible heating, and energy recovery can support commercial output while helping control production costs. Hygienic stainless-steel construction and organized trolley handling can also support cleaning and material-flow requirements.

Fruits and Vegetables

Fruits and vegetables contain substantial moisture and may be sensitive to heat, oxidation, and structural damage. Freeze-drying can help maintain the original shape and produce a crisp texture after drying. The process is used for fruit pieces, vegetable ingredients, powders, snack products, soup components, and emergency food materials.

The final result depends heavily on pretreatment, cutting size, loading thickness, freezing rate, and drying recipe. The BLK-FD-50 provides the controlled shelf environment required to develop repeatable processes for different agricultural products.

Medicinal Materials and Health Supplements

Medicinal herbs, extracts, probiotics, nutritional ingredients, and health supplements may benefit from low-temperature drying. Freeze-drying can reduce exposure to high temperatures that might otherwise affect volatile components or heat-sensitive substances.

Manufacturers in this sector generally require strong control over process documentation, cleaning, materials, and batch traceability. The intelligent control system, configurable process parameters, and international design approach can support these requirements when combined with appropriate validation procedures.

Biological and Pharmaceutical Materials

Biological products and pharmaceutical formulations often require highly controlled drying conditions. The product may be sensitive to temperature, pressure, residual moisture, oxygen exposure, or structural collapse. Shelf uniformity and vacuum stability are therefore essential.

The BLK-FD-50 can serve as a platform for suitable biological or pharmaceutical applications, provided that the final specification includes the required hygienic design, instrumentation, validation, documentation, and regulatory features. The equipment should be evaluated against the customer’s good manufacturing practice and quality-system requirements before purchase.

Chemical Materials

Some chemical materials, specialty formulations, catalysts, and laboratory-derived products require low-temperature solvent or moisture removal. Freeze-drying can be useful when conventional evaporation or hot-air drying would cause degradation, agglomeration, or loss of physical performance.

For chemical applications, the material compatibility of seals, pumps, heat-transfer fluids, chamber surfaces, and exhaust systems must be reviewed carefully. The supplier should receive detailed information about the product composition, solvents, vapor characteristics, safety classification, and required final properties.

Advantages Compared with Conventional Industrial Freeze Dryers

The BLK-FD-50 offers several advantages over less integrated or older-generation freeze-drying systems. Its first advantage is the combination of substantial capacity and compact industrial positioning. It provides more production area than a typical laboratory or pilot unit while avoiding the scale and infrastructure complexity of the largest systems.

Its second advantage is temperature uniformity. One-piece radiation plates and a specialized heat-transfer circuit are designed to maintain shelf-to-shelf deviation within approximately plus or minus 1 degree Celsius. This can help reduce batch variation and product losses.

Its third advantage is system flexibility. Electric or steam heating can be selected. External or built-in refrigeration configurations can be considered. Several vacuum-pump combinations are available. Chamber and equipment positions can be customized. These choices help the system fit different facilities and production strategies.

Its fourth advantage is energy management. Cold recovery, heat recovery, economizer technology, and variable-frequency pumps and refrigeration units are intended to reduce energy waste. Traditional equipment may run pumps and compressors at fixed output, while the BLK-FD-50 can adjust performance according to demand.

Its fifth advantage is production continuity. Parallel operation, shared vacuum technology, and the optional intermediate isolation valve can reduce batch intervals and support staggered production. This is especially important for factories that need stable daily output rather than occasional batch processing.

Its sixth advantage is manufacturing inspection. Pressure holding tests, multiple pressure tests, and a structured inspection program provide additional assurance before delivery. Customers can also request factory-acceptance testing and documentation according to project requirements.

Finally, the manufacturer offers integrated project support. The company’s activities cover research and development, engineering, manufacturing, installation, commissioning, and after-sales service. This can simplify communication compared with purchasing the chamber, refrigeration system, controls, and vacuum equipment from separate vendors.

Manufacturing Strength of the Supplier

Jiangsu Bolaike Refrigeration Science and Technology Development Co., Ltd. was established in 2014 in Changzhou, Jiangsu, China. Its predecessor entered the refrigeration industry in 2003 and began developing vacuum freeze-drying technology at an early stage. This background combines refrigeration experience with specialized knowledge of freeze-drying processes.

The company operates an integrated professional team covering research and development, engineering, sales, installation, commissioning, and after-sales service. This structure is important for industrial projects because the equipment must be designed around the customer’s product, factory utilities, production objectives, and compliance expectations.

The company reports cooperation with universities and research institutions, including the Chinese Academy of Agricultural Sciences, the Jiangsu Academy of Agricultural Sciences, and Jiangnan University. Such partnerships can support process research, product trials, energy-efficiency development, and technology transfer.

The company has obtained more than 100 national invention and utility model patents. Its reported areas of innovation include cold-energy recovery, heat recovery, heat-pump and economizer systems, isolation-valve arrangements, and intelligent equipment control.

The manufacturer has moved into a modern 24,000-square-meter manufacturing base. A dedicated manufacturing facility can support better organization of fabrication, assembly, inspection, testing, and project delivery. It also provides a practical environment for factory acceptance testing before shipment.

The company reports that its products have been exported to more than 30 countries and regions. International experience can help a supplier understand different electrical standards, installation conditions, logistics requirements, operator expectations, and documentation needs. Nevertheless, each export project should still be reviewed individually to ensure that the proposed configuration complies with local regulations.

Installation, Commissioning, and Service Considerations

Successful freeze-dryer performance depends on more than the machine itself. The installation site must provide suitable floor loading, access clearance, drainage, electrical power, cooling water or refrigeration connections where applicable, steam or heating utilities, compressed air if required, ventilation, and environmental conditions within the specified range.

Because the BLK-FD-50 can be customized in layout, the customer should provide accurate facility drawings during the quotation and engineering stage. The supplier should review equipment access routes, door dimensions, ceiling height, trolley movement, maintenance clearances, operator space, and the separation of raw-material and finished-product flows.

Commissioning should include mechanical inspection, electrical verification, vacuum-leak testing, refrigeration testing, temperature mapping, control-system verification, alarm testing, and trial operation. For regulated industries, additional qualification activities may include installation qualification, operational qualification, and performance qualification.

Operator training should cover loading methods, freezing procedures, recipe selection, vacuum operation, defrosting, cleaning, emergency procedures, routine inspection, and maintenance. Maintenance personnel should receive specific training on pumps, compressors, valves, seals, sensors, heat-transfer circuits, and control cabinets.

After-sales support is particularly important for large industrial equipment. The supplier should provide spare-parts recommendations, preventive-maintenance schedules, troubleshooting instructions, remote technical support, and service-response procedures. Customers operating multiple units should also consider keeping critical seals, sensors, filters, pump components, and electrical parts in local inventory.

How to Evaluate the BLK-FD-50 for a New Project

Before ordering the equipment, the purchaser should define the product and process in detail. Important information includes product type, batch weight, liquid or solid form, initial moisture, target final moisture, tray loading height, freezing temperature, allowable product temperature, desired cycle time, required throughput, packaging method, and cleaning procedure.

The customer should also identify available utilities. The choice between electric and steam heating depends on installed capacity, energy prices, process standards, and future expansion plans. The vacuum-pump configuration should be selected according to vapor load, desired evacuation time, maintenance preferences, and environmental conditions.

Energy performance should be evaluated using a complete life-cycle calculation. The calculation should include electricity, steam, cooling water, pump maintenance, refrigeration maintenance, labor, production capacity, downtime, and product yield. A machine with a higher purchase price may provide a better total cost of ownership if it reduces cycle time, energy use, or product loss.

Customers should request a performance specification that clearly defines measurable acceptance criteria. These may include ultimate vacuum, vacuum-leak rate, shelf-temperature uniformity, refrigeration temperature, freezing time, condenser performance, pressure-test results, control-system functions, alarm response, and trial-batch results.

Where possible, product samples should be tested before finalizing the design. Freeze-drying behavior varies significantly between products, and process trials can reveal whether the selected shelf area, pump capacity, refrigeration capacity, and heat-transfer system are appropriate.

Frequently Asked Questions

What type of equipment is the BLK-FD-50?

The BLK-FD-50 is large-scale industrial freeze-drying equipment designed for commercial and production applications. It has a 50.5-square-meter freeze-drying area and is suitable for food, agricultural products, medicinal materials, biological products, chemical materials, and other heat-sensitive materials.

What is the standard capacity of the system?

The standard loading capacity is approximately 500 kilograms, and the liquid loading capacity is up to 1,000 liters. Actual processing output depends on product density, moisture content, loading height, formulation, and the selected freeze-drying recipe.

What vacuum level can the equipment reach?

The specified ultimate vacuum level is no more than 10 pascals. The practical operating pressure used during production depends on the material and process stage.

Can the equipment use both electric heating and steam heating?

Yes. Electric or steam heating can be selected according to the customer’s production requirements, available utilities, energy costs, and process design.

How does the machine improve temperature uniformity?

The system uses one-piece radiation plates without welded joints and a specially designed heat-transfer fluid circuit. The design aims to keep the temperature deviation between shelves within approximately plus or minus 1 degree Celsius.

Can multiple BLK-FD-50 units operate together?

Yes. The equipment supports parallel operation. Multiple units can be connected and operated through staggered loading, drying, unloading, and defrosting cycles to improve production continuity and equipment utilization.

What is the purpose of the intermediate isolation valve?

The optional intermediate isolation valve separates the drying chamber and cold trap under selected conditions. It helps control vapor flow, prevent vapor backflow during defrosting, and shorten batch intervals.

What vacuum-pump configurations are available?

Possible combinations include a screw pump with a Roots pump set, a rotary-vane pump with a Roots pump set, or a water-ring pump with a Roots pump set. The final selection should be based on vapor load, vacuum requirements, maintenance preferences, and site conditions.

Does the system include energy-saving functions?

Yes. The equipment can include residual cold recovery, heat recovery, variable-frequency vacuum pumps, variable-frequency refrigeration units, and a heat-pump and economizer system. The potential energy reduction depends on the product, process, configuration, operating schedule, and comparison equipment.

What materials can be processed?

The equipment can be used for fruits, vegetables, foods, beverages, instant ingredients, medicinal herbs, health supplements, biological products, chemical materials, and other products that benefit from low-temperature vacuum drying.

Is the chamber suitable for hygienic production?

The chamber uses 304 stainless steel with a specified thickness of 8 millimeters. Stainless steel supports cleanability and corrosion resistance, but the final hygienic suitability should be confirmed against the customer’s industry, cleaning method, regulatory standards, and validation requirements.

Can the equipment layout be customized?

Yes. Chamber and unit layout positions can be customized to fit the factory’s access routes, utility locations, floor plan, ceiling height, production flow, and maintenance requirements.

What inspection tests are performed before delivery?

The manufacturer describes five core inspection workflows and 58 inspection procedures. The refrigeration system undergoes a pressure-holding test of more than 48 hours, while the complete machine receives high-pressure and low-pressure testing, including 48 hours of dedicated high-pressure testing according to the supplied information.

Does the system support remote monitoring?

Yes. Remote equipment monitoring through a mobile application is supported. Multiple language options can also be customized for international users.

What should a customer provide before requesting a quotation?

The customer should provide product information, target capacity, batch size, liquid or solid form, moisture content, desired cycle time, heating preference, available utilities, factory layout, regulatory requirements, and any requirements for automation, validation, documentation, or packaging integration.

Conclusion

The BLK-FD-50 is a comprehensive industrial freeze-drying platform designed to balance capacity, process stability, energy efficiency, and production flexibility. Its 50.5-square-meter drying area, 500-kilogram standard loading capacity, 1,000-liter liquid loading capability, and ultimate vacuum level of no more than 10 pascals provide a strong foundation for commercial production.

Its most important technical strengths are the cylindrical stainless-steel chamber, one-piece radiation plates, narrow inter-shelf temperature deviation, configurable heating systems, flexible vacuum-pump combinations, adaptable refrigeration arrangements, intelligent central control, and support for parallel operation. These features distinguish it from simpler freeze dryers that rely on fixed-speed pumps, limited utility options, isolated controls, or inflexible layouts.

The equipment also addresses operating cost through cold recovery, heat recovery, variable-frequency control, and heat-pump technology. When properly matched to the product and production schedule, these technologies can reduce energy consumption, shorten batch intervals, and improve the total cost of ownership.

Manufacturing quality is supported by structured inspection workflows, long-duration pressure testing, international design considerations, and the supplier’s integrated engineering and service capabilities. Jiangsu Bolaike’s experience in refrigeration and freeze-drying, research cooperation, patent portfolio, manufacturing base, and export activity provide a foundation for supporting international industrial projects.

As with any industrial freeze dryer, the final performance depends on correct configuration, process development, installation, commissioning, operator training, and preventive maintenance. Customers should evaluate the BLK-FD-50 through product trials, utility analysis, factory-acceptance testing, and a complete life-cycle cost assessment. When these steps are followed, the system can provide a reliable and scalable solution for large-scale freeze-drying production.

References

1. Product technical specification and application materials for the BLK-FD-50 industrial freeze dryer.

2. Jiangsu Bolaike Refrigeration Science and Technology Development Co., Ltd. Company profile and manufacturing information.

3. General engineering principles for vacuum freeze-drying, sublimation, cold-trap operation, and heat-transfer control.

4. Technical materials concerning cold-energy recovery, heat recovery, heat-pump systems, and variable-frequency refrigeration control.

5. International mechanical safety, pressure-testing, quality-management, and industrial equipment documentation practices.
