Heavy-Duty 200-Square-Meter Freeze Dryer for High-Performance Industrial Production

Industrial freeze-drying demands more than a large chamber and a powerful refrigeration system. Modern producers need stable temperature control, dependable vacuum performance, efficient energy use, rapid batch turnover, hygienic construction, and flexible integration with upstream and downstream processes. The BLK-FD-200 is designed to address these requirements as a heavy-duty large-scale freeze-drying system for food, agricultural products, medicinal materials, biological supplies, chemicals, health products, and other temperature-sensitive materials.

With a freeze-drying area of 202.2 square meters, a standard loading capacity of 2,000 kilograms, and a liquid loading capacity of up to 4,000 liters, this industrial freeze dryer is engineered for high-throughput production. Its cylindrical chamber structure, intelligent control system, energy-recovery technologies, configurable refrigeration architecture, and optional intermediate isolation valve provide a combination of productivity and process security that is difficult to achieve with conventional equipment.

The system is manufactured by Jiangsu Bolaike Freezing Technology Development Co., Ltd., an established Chinese developer and manufacturer of vacuum freeze-drying and refrigeration equipment. The company combines equipment research and development, precision fabrication, engineering, installation, commissioning, and after-sales support within one professional organization. This integrated structure enables the BLK-FD-200 to be customized for different factories, materials, production targets, utilities, and site layouts.

Industrial Freeze-Drying Capacity for Demanding Production Schedules

Freeze-drying, also known as lyophilization, removes water from a frozen product through sublimation under vacuum. The process protects product structure, aroma, color, nutrients, active ingredients, and rehydration performance more effectively than many conventional drying technologies. However, industrial production requires careful coordination of freezing, primary drying, secondary drying, refrigeration, vacuum generation, heat transfer, defrosting, loading, unloading, and cleaning.

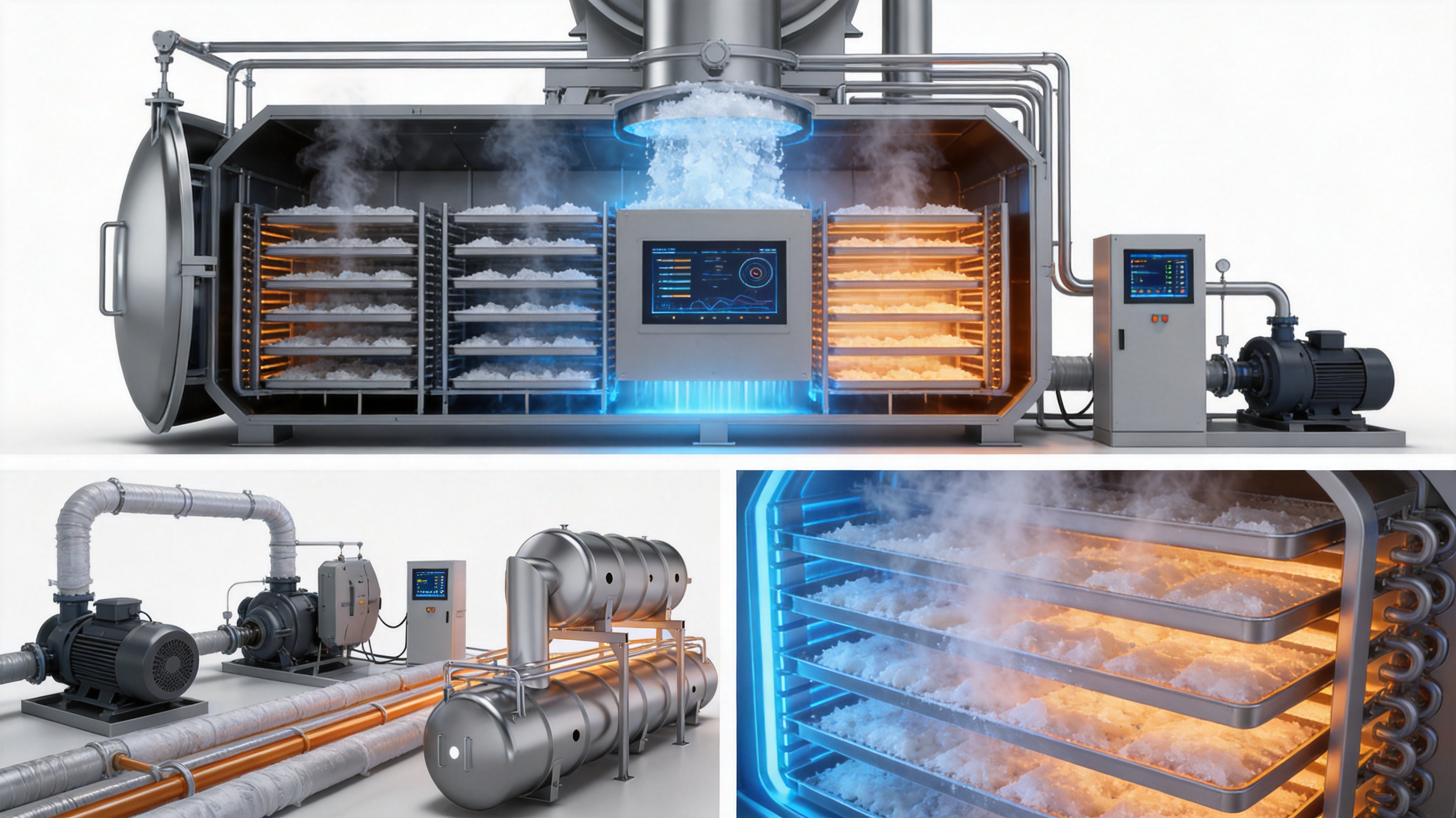

The BLK-FD-200 is built to coordinate these functions in a single high-capacity production platform. Its 202.2-square-meter shelf area offers substantial working space for large production batches, while its 2,000-kilogram standard loading capacity supports continuous supply to commercial markets. Depending on the material, formulation, bulk density, layer thickness, moisture content, and process recipe, the chamber can accommodate different product quantities.

For liquid products, the system offers a liquid loading capacity of up to 4,000 liters. This makes the equipment suitable for liquid food concentrates, extracts, biological preparations, pharmaceutical intermediates, beverage ingredients, and other products that must be frozen and dried in trays or suitable containers. The actual usable capacity is determined by the product’s physical properties and the selected loading configuration.

The equipment can typically accommodate eight sets of material trolleys. Manual and automatic trolley options are available, allowing producers to select a material-handling arrangement that matches labor resources, factory automation targets, and hygiene procedures. The chamber and complete unit layout can also be customized to fit available building space, production flow, utility connections, and maintenance access requirements.

Precise Temperature Uniformity Across a Large Shelf Area

Temperature uniformity is one of the most important factors in freeze-drying. If one shelf area is colder or warmer than another, products may freeze differently, dry at different rates, or experience inconsistent residual moisture. Uneven heat transfer can also lead to longer cycles, damaged structure, reduced yield, and variation between trays.

The BLK-FD-200 uses one-piece radiation plates without welded joints. This construction reduces potential weak points and supports a more stable heat-transfer surface. The special heat-transfer-fluid circuit is designed to maintain inter-shelf temperature deviation within approximately plus or minus 1 degree Celsius. Such uniformity helps the production team apply consistent recipes across a large load.

A one-piece radiation plate can also simplify cleaning and reduce the number of areas where residue or moisture could accumulate. In food, pharmaceutical, and biological applications, smooth and dependable internal surfaces are valuable for sanitation and contamination control. The use of 304 stainless steel, including an 8-millimeter-thick chamber structure, provides strength, corrosion resistance, and a long service life under demanding operating conditions.

Compared with basic freeze dryers that rely on less sophisticated shelf circuits or inconsistent fluid distribution, the BLK-FD-200 is designed to deliver a more balanced thermal environment. This advantage becomes increasingly important as the chamber grows larger. In a small laboratory dryer, a minor temperature difference may affect a limited quantity of product. In a 200-square-meter industrial dryer, the same difference could affect an entire commercial batch.

Engineered Chamber Construction for Long-Term Reliability

The freeze-drying chamber is exposed to repeated vacuum cycles, thermal cycling, refrigeration loads, cleaning procedures, and mechanical stress. A dependable chamber must remain stable under pressure changes and maintain accurate sealing throughout its operating life. The BLK-FD-200 uses a cylindrical chamber structure and heavy-duty stainless-steel construction to support safe and reliable industrial operation.

The chamber uses 8-millimeter-thick 304 stainless steel in key structural construction. This material is widely valued in processing environments because it combines mechanical strength, corrosion resistance, and compatibility with hygienic manufacturing requirements. Its robust structure is intended to withstand repeated production cycles while providing a stable enclosure for shelves, trolleys, sensors, vacuum connections, refrigeration interfaces, and product handling operations.

Heavy construction is especially important for large vacuum equipment. When the internal pressure is reduced, the chamber must tolerate external atmospheric pressure without deformation. Structural stability helps protect shelf alignment, door sealing, instrumentation accuracy, and the long-term performance of the vacuum system. It also reduces the risk that repeated pressure cycles will negatively affect equipment precision.

Before delivery, the complete machine undergoes pressure testing and inspection procedures. These checks are not limited to a visual review. The manufacturing program includes five core inspection workflows and 58 inspection procedures intended to verify workmanship, assembly quality, system integrity, and operational reliability.

Manufacturing Controls and Pressure Testing

Large freeze-drying equipment requires close control over fabrication, welding, assembly, piping, refrigeration, electrical integration, insulation, and final commissioning. A defect in one subsystem can affect the entire production line. For this reason, Bolaike applies staged inspection throughout manufacturing rather than relying only on a final acceptance test.

The inspection program covers key production stages from material preparation to final system verification. Structural components are checked for dimensions and fabrication accuracy. Stainless-steel surfaces and assemblies are reviewed for construction quality. Refrigeration and vacuum piping are inspected for correct assembly, sealing, cleanliness, and connection integrity. Electrical and control components are checked against system requirements before the equipment is released for testing.

The refrigeration system receives a pressure-holding test lasting more than 48 hours. Long-duration testing helps identify slow leaks and weaknesses that may not be visible during a short test. The complete machine also undergoes high-pressure and low-pressure testing. The high-pressure test includes a dedicated 48-hour test period, supporting a more comprehensive assessment of system tightness and pressure resistance.

These procedures provide several practical benefits. They reduce the likelihood of refrigerant leakage, improve vacuum stability, support consistent drying performance, and help prevent unplanned downtime after installation. They also demonstrate that the equipment is manufactured according to a controlled process rather than assembled solely according to individual project requirements.

The BLK-FD-200 is designed according to international specifications. The equipment is associated with EU CE certification requirements for mechanical health and safety, as well as Chinese quality management system certification. Certification and inspection must always be evaluated according to the final configuration, applicable regulations, and the customer’s installation location, but the design approach reflects the needs of global industrial users.

BLK-FD-200

Flexible Refrigeration System Configurations

Different factories have different building arrangements, maintenance preferences, utility conditions, and production plans. A refrigeration system that works well in one facility may be unsuitable in another if it occupies too much space, creates difficult maintenance access, or cannot be expanded. The BLK-FD-200 is therefore available with multiple refrigeration panel configurations.

An external refrigeration system places the main refrigeration components outside the freeze-drying chamber area. This configuration can be useful when the customer has a dedicated equipment room, wants to simplify access for maintenance, or needs to separate heat-generating components from the main production zone. An external arrangement may also support a more organized utility layout in a large factory.

A built-in refrigeration system integrates the refrigeration arrangement more closely with the main equipment. This approach may be suitable when the available site is compact or when the customer prefers a more centralized machine layout. The correct choice depends on plant design, local climate, maintenance policy, heat rejection requirements, and the planned relationship between the freeze dryer and cold-storage facilities.

In addition to the basic configuration choice, refrigeration capacity and control logic can be adjusted to match the material process. Freeze-drying products differ significantly in freezing point, eutectic behavior, moisture content, heat sensitivity, and required cycle time. A properly selected refrigeration system helps the equipment reach the necessary freezing conditions and maintain stable condenser performance throughout sublimation.

Vacuum Pump Combinations for Fast and Stable Vacuum Generation

Vacuum generation is central to the freeze-drying process. The pressure must be reduced to a level at which ice can sublime without passing through the liquid phase. At the same time, the vacuum system must remove water vapor continuously and maintain appropriate pressure while the product receives controlled heat.

The BLK-FD-200 can use different vacuum pump combinations according to the required vacuum level, pumping speed, product load, and process schedule. Available combinations include a screw pump with a Roots pump set, a rotary vane pump with a Roots pump set, or a water ring pump with a Roots pump set.

A Roots pump can increase pumping performance in the operating pressure range used by large freeze dryers. When paired with a suitable primary pump, it can help establish the required vacuum environment more quickly and support vapor removal during drying. Screw pumps may be selected where oil-free or reduced-oil operation and high pumping performance are important. Rotary vane pumps may be appropriate for particular process and cost requirements. Water ring pumps can be considered when plant conditions and process design support their use.

The system can adjust vacuum pump power according to process demand. Rather than operating every pump continuously at maximum output, intelligent variable-frequency combinations can regulate pumping performance in response to the actual vacuum requirement. This approach can reduce unnecessary energy consumption, limit mechanical stress, and provide more accurate control over different stages of the drying cycle.

Compared with a fixed vacuum arrangement, a configurable pump system gives industrial users more flexibility. A producer may require one pumping profile for fruit pieces, another for extracts, and another for biological materials. The equipment can be engineered around those process differences instead of forcing every product to use the same vacuum strategy.

Cold-Trap Performance and Refrigeration Coordination

During sublimation, water vapor travels from the product toward the cold trap or condenser. The cold trap must capture this vapor as ice so that it does not overload the vacuum pump or return to the drying chamber. Stable cold-trap performance is therefore essential for maintaining product quality and preventing process interruptions.

The BLK-FD-200 can use a refrigeration unit that supplies cooling to both the cold-storage system and the freeze-drying equipment. This coordinated arrangement may reduce the number of separate refrigeration systems required at the factory. It can also allow production managers to balance cooling demand between cold rooms, pre-freezing areas, and the freeze dryer.

Intelligent variable-frequency refrigeration units can dynamically manage the drying process of multiple freeze-drying devices. Refrigeration demand changes during freezing, primary drying, secondary drying, and defrosting. Variable-frequency operation allows the system to respond to actual demand rather than continuously running at a fixed output.

This coordinated design can be particularly valuable for factories operating several freeze dryers. Cooling capacity can be managed according to staggered production cycles, reducing peaks in power demand and supporting more stable operation. The final configuration should be selected after reviewing local ambient temperature, cooling water conditions, refrigerant requirements, production schedule, and the number of connected units.

Parallel Operation for Continuous Production

One of the most significant advantages of the BLK-FD-200 platform is its ability to support parallel operation. Multiple freeze dryers can be connected and organized through staggered loading, drying, unloading, and defrosting cycles. This arrangement helps factories maintain production continuity even when one unit is temporarily unavailable for a particular stage.

When one freeze dryer enters the final drying phase and prepares for cold-trap defrosting, other connected dryers may continue operating. The active units can jointly support water-vapor capture and help maintain system stability. This creates a controlled defrosting window for the individual unit and reduces the risk that the entire production system must stop.

Parallel operation can improve equipment utilization. Instead of designing every machine to operate independently at maximum capacity, a factory can coordinate several units as a production group. The result can be a more flexible production schedule, especially when different products require different cycle times.

The product information indicates that two units can potentially achieve the output of three conventional units when the system is correctly configured and operated. This claim depends on process conditions, scheduling, material characteristics, and equipment integration, but the underlying concept is important: intelligent coordination can increase effective capacity without simply adding more machines.

Shared vacuum technology is another option for multi-unit systems. A partitioned bulkhead with a valve can separate the drying chamber from the cold trap during operating conditions such as freeze-drying and cold-trap defrosting. This allows more precise control of water-vapor direction and vacuum status.

By preventing water-vapor backflow, the isolation arrangement helps protect product quality and system safety. It also supports shorter batch intervals by enabling a unit to perform certain maintenance or defrosting functions without disrupting every connected dryer. The optional intermediate isolation valve is therefore valuable for facilities seeking higher throughput and greater operational flexibility.

Energy-Recovery Technology for Lower Operating Costs

Energy consumption is one of the largest ongoing expenses in industrial freeze-drying. Refrigeration compressors, vacuum pumps, heating systems, defrosting systems, controls, and auxiliary equipment may operate for long periods. Any reduction in wasted cooling or heat can have a significant effect on production economics.

The BLK-FD-200 incorporates energy-saving technologies intended to reduce operating costs. Depending on the specific design and production conditions, the equipment is promoted as capable of reducing energy consumption by approximately 20% to 40%, while the standard product description indicates a 10% to 15% reduction compared with traditional equipment. Actual savings depend on product formulation, cycle design, ambient conditions, equipment utilization, heat recovery configuration, and operating practices.

The system can also shorten a single-batch cycle by approximately 15% to 25% under suitable conditions. Shorter cycles increase available annual capacity and may reduce labor and utility costs per kilogram of finished product. Cycle-time improvements should be validated through product trials because drying behavior varies substantially among materials.

Cold-Energy Recovery

Traditional refrigeration arrangements may use cold energy once and then discharge it while compressors continue operating under a high load. The BLK-FD-200 can recycle cold energy from one part of the refrigeration system to pre-cool another refrigeration circuit. This approach can reduce the overall compressor load by approximately 20% to 30% in suitable applications.

Cold-energy recovery is valuable because refrigeration systems often produce different temperature levels at different process stages. Recovering energy that would otherwise be rejected allows the system to make better use of the same electrical input. It may also reduce temperature fluctuations and improve the responsiveness of the refrigeration control system.

Heat Recovery

Freeze-drying also creates opportunities for heat recovery. Excess heat from the sublimation and heating stages is often discharged. The BLK-FD-200 can recycle recovered heat or steam heat for material drying when the process permits. This reduces the amount of new energy that must be supplied by electric heaters or steam systems.

For material heating temperatures of 35 degrees Celsius or lower, the company describes a potential energy-saving rate of up to 99 percent in the relevant heating function. When the required material heating temperature is below 80 degrees Celsius, approximately 10 percent energy savings may be achieved through waste-heat-enhanced operation. These figures depend on system design, process conditions, heat availability, insulation, and the precise definition of the energy-saving baseline.

Heat Pump and Economizer System

A heat pump and economizer system is available to improve compressor performance. The system is designed to increase the compressor coefficient of performance to approximately 4.8 to 5.9. A higher coefficient of performance means that the system can provide more useful heating or cooling output for each unit of electrical energy consumed.

In practical terms, the heat pump and economizer arrangement can improve energy efficiency by approximately five to six times compared with certain traditional freeze-drying configurations. The final benefit depends on the temperature lift, refrigerant circuit, operating load, and environmental conditions, but the technology provides a strong foundation for reducing the total cost of ownership.

Electric or Steam Heating According to Factory Requirements

Industrial factories differ in their available utilities. Some sites have reliable steam generation and existing steam distribution, while others prefer electric heating because it is easier to control, install, and maintain. The BLK-FD-200 supports electric or steam heating according to the customer’s production requirements.

Electric heating can provide precise temperature adjustment and straightforward integration with automated control systems. It may be suitable for facilities that do not have a steam boiler or that prioritize modular installation. Steam heating can be advantageous when a factory already operates a central steam system or when steam is available at a competitive cost.

Choosing between electric and steam heating requires an evaluation of utility prices, available capacity, process temperature, local regulations, maintenance resources, and sustainability objectives. Bolaike can customize the heating arrangement as part of the overall equipment design rather than treating the heating system as an independent accessory.

Accurate shelf temperature control remains important regardless of the heating source. The heat-transfer-fluid circuit and one-piece radiation plates are intended to distribute thermal energy consistently across the chamber. This helps reduce the possibility of overheating sensitive products or leaving some areas insufficiently dried.

Intelligent Central Control for Production Management

Modern freeze-drying equipment must be more than a mechanical chamber. Operators need to monitor temperatures, pressures, refrigeration conditions, pump status, heating output, alarm conditions, valve positions, and recipe stages from a central interface. The BLK-FD-200 includes an intelligent central control system capable of managing the operational status of connected equipment.

A centralized control system can coordinate multiple freeze dryers, vacuum pumps, refrigeration units, heating systems, valves, and auxiliary components. It can help operators organize staggered production sequences, identify abnormal conditions, and review important process information. Central control is particularly useful when several units operate in parallel or share refrigeration and vacuum resources.

Remote monitoring through a mobile application is supported. Remote access can help production managers review equipment status, receive notifications, and respond more quickly to potential problems. Remote monitoring does not replace on-site safety procedures or qualified maintenance personnel, but it can improve visibility when supervisors are responsible for a large facility or multiple production lines.

Multiple language options are available for customization. This supports international customers and multinational production teams. Clear control interfaces reduce training difficulties and make it easier for operators from different backgrounds to follow standard operating procedures.

Control-system customization may include recipe management, alarm logic, data recording, user permissions, production reports, and interfaces with factory management systems. The exact software functions should be confirmed during technical discussions because different industries may require different data records and validation procedures.

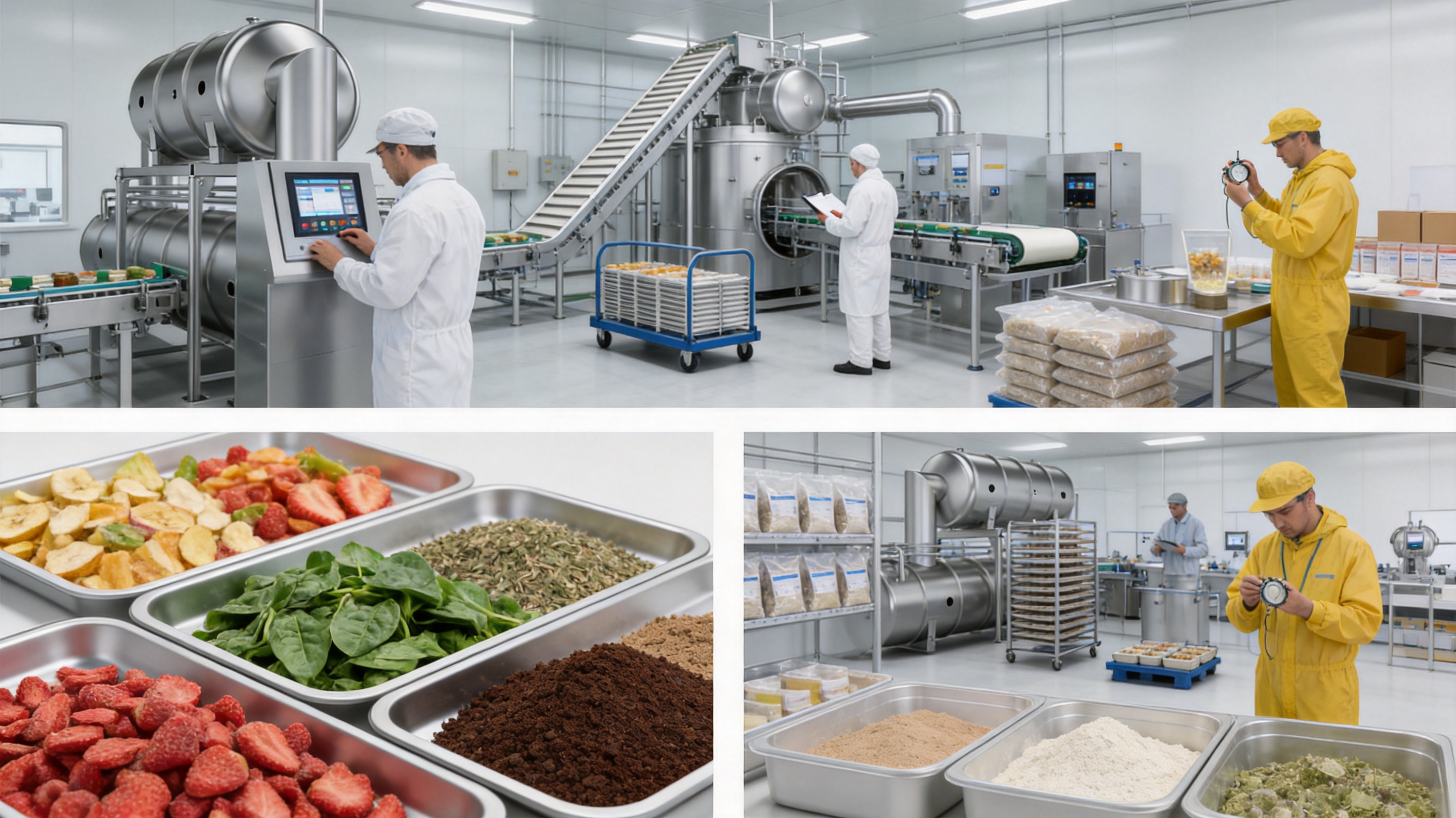

Applications Across Multiple Industries

The BLK-FD-200 is suitable for a wide range of materials that benefit from low-temperature vacuum drying. Its large capacity and flexible process control make it particularly appropriate for industrial producers that need to preserve quality while increasing output.

Food and Beverage Ingredients

Freeze-dried foods can retain natural flavor, color, aroma, nutrients, and porous structure. The BLK-FD-200 can be used for fruits, vegetables, meat products, prepared meals, coffee ingredients, dairy-based products, seasonings, soup components, beverage powders, and other food materials. The large chamber supports commercial batch production, while controlled heating helps protect products that are sensitive to high temperatures.

Fruits and vegetables are often processed in pieces, slices, granules, or prepared purees. Product density and layer thickness influence the final capacity. Based on a tray area of approximately 200 square meters and a loading height of 35 millimeters, the processing quantity may vary by material category and density. Lower-density fruits and vegetables may require a different loading mass than denser food or solution-based products.

Instant Coffee and Beverage Products

Freeze-drying is widely used for premium instant coffee because it can preserve aroma and produce a porous granule that rehydrates quickly. The BLK-FD-200 can serve as a core drying unit within a fully automatic instant coffee freeze-drying production line. Such a line may integrate extraction, concentration, freezing, granulation, freeze-drying, screening, packaging, and quality inspection.

The equipment’s vacuum stability, heat-transfer uniformity, and large liquid loading capability are valuable for coffee producers seeking consistent granule structure and aroma retention. The complete line design should be adapted to the coffee formulation, extract concentration, granule size, target moisture, and required annual output.

Medicinal Materials and Health Products

Medicinal herbs, botanical extracts, enzymes, probiotics, nutritional ingredients, and health supplements may be sensitive to heat and oxidation. Freeze-drying can help preserve active components and improve storage stability. Precise control of freezing and drying conditions is important because different extracts may have different collapse temperatures and moisture-removal characteristics.

For these applications, hygienic construction, traceable process data, cleaning procedures, and validated operating recipes are essential. The BLK-FD-200 can be configured to support the customer’s quality system and production requirements, subject to the applicable regulatory framework.

Biological and Chemical Materials

Biological supplies, laboratory products, microbial preparations, chemical intermediates, and specialty materials may require low-temperature drying to protect their functional properties. The system’s low ultimate vacuum level, customizable heat-transfer control, and flexible pump combinations enable process engineers to develop suitable drying programs.

Material trials are recommended before full-scale production. Laboratory and pilot data can determine freezing behavior, shelf temperature profiles, chamber pressure, endpoint criteria, and appropriate secondary-drying conditions. The industrial machine can then be configured around the validated process window.

Batch Capacity and Product-Dependent Throughput

Rated equipment capacity should not be confused with guaranteed throughput for every material. Freeze-drying performance depends on the amount of free water, product thickness, density, freezing point, formulation, container geometry, desired residual moisture, and acceptable cycle time.

For a 200-square-meter tray area and a loading height of 35 millimeters, the BLK-FD-200 may process different quantities in different categories. A denser food product may reach a higher loading mass than a porous fruit or vegetable product. A liquid concentrate may require additional consideration because its solids content and freezing behavior affect the drying rate.

Production engineers should assess the following factors before selecting a final cycle:

Product formulation and solids concentration.

Initial and final moisture content.

Freezing point and eutectic temperature.

Maximum allowable product temperature.

Tray dimensions and filling depth.

Target residual moisture and water activity.

Required annual production and batch frequency.

Available pre-freezing and cold-storage capacity.

Loading and unloading labor or automation requirements.

The BLK-FD-200’s customizable configuration allows the system to be adapted after these factors have been evaluated. This engineering approach is more reliable than selecting equipment based only on chamber volume or nominal shelf area.

Advantages Compared with Conventional Industrial Freeze Dryers

The BLK-FD-200 offers several advantages over conventional or less integrated industrial freeze-drying systems. First, its large working area and high loading capacity support commercial-scale production. Second, its one-piece radiation plates and specialized heat-transfer circuit are designed to improve temperature uniformity across the chamber.

Third, the system offers multiple vacuum pump combinations and intelligent variable-frequency control. This provides greater flexibility than a single fixed pump arrangement. Fourth, the optional intermediate isolation valve and shared vacuum technology can reduce interruptions during defrosting and support more efficient multi-unit operation.

Fifth, the equipment incorporates cold-energy recovery, heat recovery, and heat-pump technology. These functions can reduce the energy required per batch and improve the economics of long-term operation. Sixth, the cylindrical chamber and thick 304 stainless-steel construction support durability and structural reliability.

Seventh, the central control system enables unified management, remote monitoring, and multiple-language customization. This is particularly valuable for large factories with several connected systems. Finally, the manufacturer can customize chamber layout, unit position, heating source, refrigeration configuration, trolley arrangement, automation level, and production-line integration.

The overall competitive advantage is not based on one individual component. It comes from integrating mechanical strength, process uniformity, vacuum performance, refrigeration coordination, energy management, control intelligence, and engineering service into one industrial platform.

Manufacturing Strength of the Equipment Supplier

Jiangsu Bolaike Freezing Technology Development Co., Ltd. was established in 2014 in Changzhou, Jiangsu, China. Its development is connected with Changzhou Zhongleng Refrigeration Equipment Co., Ltd., which entered the refrigeration industry in 2003 and began developing vacuum freeze-drying technology at an early stage.

The company specializes in the research, development, manufacture, and sale of vacuum freeze-drying and refrigeration equipment. Its solutions serve food, fruits and vegetables, medicinal herbs, health supplements, biological products, chemical materials, and other industries.

Bolaike operates an integrated team covering research and development, engineering, sales, installation, commissioning, and after-sales service. This structure helps customers communicate with one technical organization throughout the project lifecycle. It also enables the manufacturer to consider production requirements, site conditions, equipment fabrication, installation, and operator training as parts of one complete solution.

The company has developed partnerships with universities and research institutions, including the Chinese Academy of Agricultural Sciences, the Jiangsu Academy of Agricultural Sciences, and Jiangnan University. These relationships support research into drying technology, product processing, heat transfer, refrigeration, and process optimization.

With more than 100 national invention and utility model patents, the company has developed technologies related to freeze-drying, energy recovery, heat pumps, refrigeration control, and production-line integration. Its manufacturing base covers approximately 24,000 square meters and is intended to support modern production, assembly, testing, and equipment delivery.

The company reports that its freeze-drying equipment can achieve energy savings of approximately 20% to 30% in suitable applications and that its products have been exported to more than 30 countries and regions. These international projects provide experience with different climates, factory standards, utility systems, and customer expectations.

Installation, Commissioning, and After-Sales Support

Large-scale freeze-drying equipment must be installed correctly to achieve its designed performance. The foundation, chamber position, refrigeration connections, vacuum piping, electrical supply, drainage, ventilation, steam or electric heating, cold storage, and material-handling routes must be coordinated before delivery.

Bolaike’s engineering service can support site planning, equipment positioning, installation, commissioning, and operator training. The customer should provide accurate information about factory dimensions, door heights, floor loading, utility capacity, ambient conditions, water quality, power supply, steam pressure, and production flow at the design stage.

Commissioning normally includes mechanical inspection, electrical checks, vacuum testing, refrigeration testing, temperature verification, control-system testing, and trial operation. Product trials can then be used to confirm process recipes and evaluate capacity, drying time, residual moisture, rehydration, appearance, and other quality indicators.

After-sales support is important because a freeze dryer is a long-term production asset. Routine maintenance may include vacuum pump service, refrigeration inspection, gasket replacement, sensor calibration, valve inspection, cleaning, defrosting-system checks, and software or control-system support. A preventive maintenance plan can reduce unexpected downtime and protect the equipment’s operating efficiency.

Recommended Selection and Project Evaluation Process

Customers considering the BLK-FD-200 should begin by defining the product and production objectives. The required capacity should be expressed in kilograms per batch, liters per batch, batches per day, and annual production rather than only in chamber area.

The next step is to provide representative product samples for process testing. Testing should evaluate freezing characteristics, drying behavior, shelf temperature, chamber pressure, cycle duration, endpoint detection, and final product quality. If several products will be processed, each major product category should be evaluated.

Site planning should then determine whether the customer prefers external or built-in refrigeration, electric or steam heating, manual or automatic trolleys, independent or shared vacuum systems, and single-unit or parallel operation. Energy-recovery options should be assessed according to the factory’s existing heating and refrigeration systems.

Finally, the project team should review documentation, inspection requirements, certification needs, installation conditions, training, spare parts, maintenance, and acceptance criteria. A clear technical specification helps ensure that the supplied equipment meets the intended production requirements.

Q&A

What is the freeze-drying area of the BLK-FD-200?

The freeze-drying area is 202.2 square meters. This large shelf area is designed for industrial batch production and can support different loading configurations according to the product and process.

How much material can the equipment process?

The standard loading capacity is 2,000 kilograms, while the liquid loading capacity can reach 4,000 liters. Actual capacity depends on product density, formulation, tray filling height, moisture content, and the selected drying cycle.

What vacuum level can the system reach?

The ultimate vacuum level is 10 Pa or lower. The actual operating pressure used during production is determined by the material, process recipe, sublimation behavior, and required product quality.

Can the freeze dryer process both solid and liquid materials?

Yes. The system can process solid materials such as fruits, vegetables, herbs, and prepared foods, as well as liquid products such as extracts, concentrates, biological formulations, and coffee solutions. The loading arrangement and process recipe must be adapted to each material.

How does the equipment improve temperature uniformity?

The system uses one-piece radiation plates without welded joints and a specialized heat-transfer-fluid circuit. The design is intended to keep inter-shelf temperature deviation within approximately plus or minus 1 degree Celsius under suitable operating conditions.

What heating options are available?

Electric heating and steam heating are available. The appropriate option depends on the customer’s utility supply, operating cost, process requirements, installation conditions, and sustainability objectives.

Can multiple BLK-FD-200 units operate together?

Yes. The system supports parallel operation of multiple freeze dryers. Staggered loading, drying, unloading, and defrosting cycles can improve production continuity. Shared vacuum technology and optional isolation valves can help reduce interruptions between batches.

What is the purpose of the intermediate isolation valve?

The optional intermediate isolation valve separates the drying chamber and cold trap during suitable operating conditions. It helps control water-vapor direction, prevent backflow, and allow defrosting or other operations to take place with less impact on connected equipment.

What vacuum pump combinations can be selected?

Available combinations include a screw pump with a Roots pump set, a rotary vane pump with a Roots pump set, and a water ring pump with a Roots pump set. The final selection depends on the required vacuum level, pumping speed, product process, maintenance policy, and energy target.

Does the system include energy-saving technology?

Yes. The equipment can incorporate cold-energy recovery, heat recovery, heat-pump and economizer technology, and variable-frequency control of vacuum and refrigeration systems. Actual savings depend on process conditions and the final system configuration.

What materials are used for the chamber?

The chamber uses 304 stainless steel, including an 8-millimeter-thick structural design. This provides strength, corrosion resistance, and suitability for demanding food, pharmaceutical, biological, and chemical processing environments.

How is equipment quality inspected before delivery?

The manufacturing program includes five core inspection workflows and 58 inspection procedures. The refrigeration system undergoes more than 48 hours of pressure holding, and the complete machine is subjected to high-pressure and low-pressure testing, including a dedicated high-pressure test period.

Can the chamber layout be customized?

Yes. Chamber and unit positions can be customized according to building dimensions, material flow, maintenance access, refrigeration configuration, trolley arrangement, and production-line requirements.

Is remote monitoring available?

Remote monitoring through a mobile application is supported. This can help authorized personnel review operating status and respond to alarms or process notifications, while on-site operators remain responsible for safe operation and maintenance.

What industries can use this freeze dryer?

The BLK-FD-200 can be used in food, fruits and vegetables, instant coffee, medicinal materials, health supplements, biological products, chemical materials, and other industries that require controlled low-temperature vacuum drying.

Conclusion

The BLK-FD-200 is a high-capacity industrial freeze dryer developed for producers that require stable performance, flexible configuration, and efficient large-scale operation. Its 202.2-square-meter freeze-drying area, 2,000-kilogram standard loading capacity, 4,000-liter liquid loading capacity, and ultimate vacuum level of 10 Pa or lower provide a strong foundation for commercial production.

The equipment distinguishes itself through one-piece radiation plates, controlled heat-transfer-fluid circulation, robust 304 stainless-steel construction, configurable vacuum pump combinations, external or built-in refrigeration options, electric or steam heating, intelligent central control, and parallel production capability. Energy-recovery technologies, heat pumps, economizers, and variable-frequency operation can further reduce operating costs when properly matched to the production process.

Beyond the machine itself, the manufacturer provides a complete engineering capability that includes research and development, precision fabrication, inspection, installation, commissioning, process support, and after-sales service. Its experience in refrigeration and vacuum freeze-drying, patent portfolio, international projects, research partnerships, and modern manufacturing base support the development of customized industrial solutions.

For food processors, instant coffee manufacturers, agricultural-product companies, pharmaceutical-material producers, and biological or chemical manufacturers, the BLK-FD-200 provides a scalable platform for improving product quality and production efficiency. A detailed process evaluation and site-specific engineering review should be completed before final selection, but the system offers the capacity, control, and manufacturing foundation required by demanding modern freeze-drying operations.
