BLK-FD-125
Industrial freeze drying has become an important processing technology for food, agricultural products, medicinal materials, biological supplies, chemicals, health products, and other temperature-sensitive materials. By removing water through sublimation under vacuum, freeze drying can preserve product structure, aroma, color, nutritional value, active ingredients, and rehydration performance more effectively than many conventional drying methods.
As production volumes increase, manufacturers require more than a basic vacuum chamber. They need a complete industrial system that can deliver stable temperature uniformity, reliable vacuum performance, high throughput, energy efficiency, process repeatability, convenient maintenance, and long service life. The BLK-FD-125 high-capacity freeze drying system is designed to address these requirements with a large drying area, intelligent control, advanced refrigeration and vacuum configurations, energy recovery technology, and a manufacturing process focused on quality assurance.
With a freeze-drying area of 125.1 square meters, a standard loading capacity of 1,250 kilograms, and a liquid loading capacity of 2,500 liters, this model is suitable for large-scale production environments. Its circular chamber structure, integrated radiation shelves, dedicated heat-transfer circuits, optional isolation-valve technology, and parallel operation capability help manufacturers achieve efficient and consistent production while controlling operating costs.
This article examines the equipment’s technical specifications, design advantages, manufacturing standards, energy-saving systems, production applications, quality-control procedures, and suitability for different industrial users.
The BLK-FD-125 is a large-scale vacuum freeze-drying machine developed for continuous or high-volume batch production. It is intended for companies that require a larger chamber and higher output than laboratory or medium-sized freeze dryers can provide.
The system is based on a 125.1-square-meter freeze-drying area. This large working area allows manufacturers to process substantial quantities of material in a single batch. The standard loading capacity is 1,250 kilograms, while the liquid loading capacity reaches 2,500 liters. These figures make the system suitable for high-output applications involving fruits, vegetables, prepared foods, extracts, medicinal materials, biological products, and other materials whose quality depends on gentle moisture removal.
Technical Parameter | Specification |
Equipment Model | BLK-FD-125 |
Product Category | Large-Scale Freeze Drying Equipment |
Freeze-Drying Area | 125.1 square meters |
Standard Loading Capacity | 1,250 kilograms |
Liquid Loading Capacity | 2,500 liters |
Ultimate Vacuum Level | 10 Pa or lower |
Loading Height Reference | 35 millimeters |
Shelf Temperature Uniformity | Within plus or minus 1°C between shelves |
Heating Options | Electric heating or steam heating |
Material | 304 stainless steel, including 8-millimeter structural components in specified areas |
The equipment is designed according to international technical requirements and may be configured for different factory layouts, production processes, heating methods, refrigeration arrangements, and automation requirements. This flexibility is important because industrial freeze-drying plants vary considerably in building dimensions, product characteristics, utility availability, and production scheduling.
Freeze drying is a complex process involving freezing, primary drying, secondary drying, vacuum control, heat transfer, vapor capture, refrigeration, and product unloading. Increasing the chamber size does not simply mean making every component larger. A larger system creates additional engineering challenges that influence product quality and operating reliability.
One major challenge is temperature uniformity. If one shelf or one area of the chamber is warmer or colder than another, products may dry at different rates. Some portions may remain wet while other portions become overheated. This can lead to inconsistent moisture content, uneven rehydration, color variation, structural collapse, or degradation of sensitive components.
A second challenge is water vapor management. During sublimation, a large quantity of vapor must move from the product toward the cold trap without causing pressure instability or vapor backflow. The vacuum system, chamber geometry, isolation valves, condenser capacity, and control software must work together to maintain an appropriate pressure environment.
A third challenge is energy consumption. Freeze drying is traditionally more energy-intensive than many other drying technologies because it requires low temperatures, deep vacuum, long process cycles, refrigeration, and controlled heating. For a large industrial plant, even a modest improvement in refrigeration load, heating efficiency, or cycle time can create significant annual savings.
The BLK-FD-125 addresses these challenges through integrated mechanical design, dedicated fluid circuits, intelligent control, energy recovery, configurable vacuum and refrigeration systems, and documented manufacturing inspection procedures.

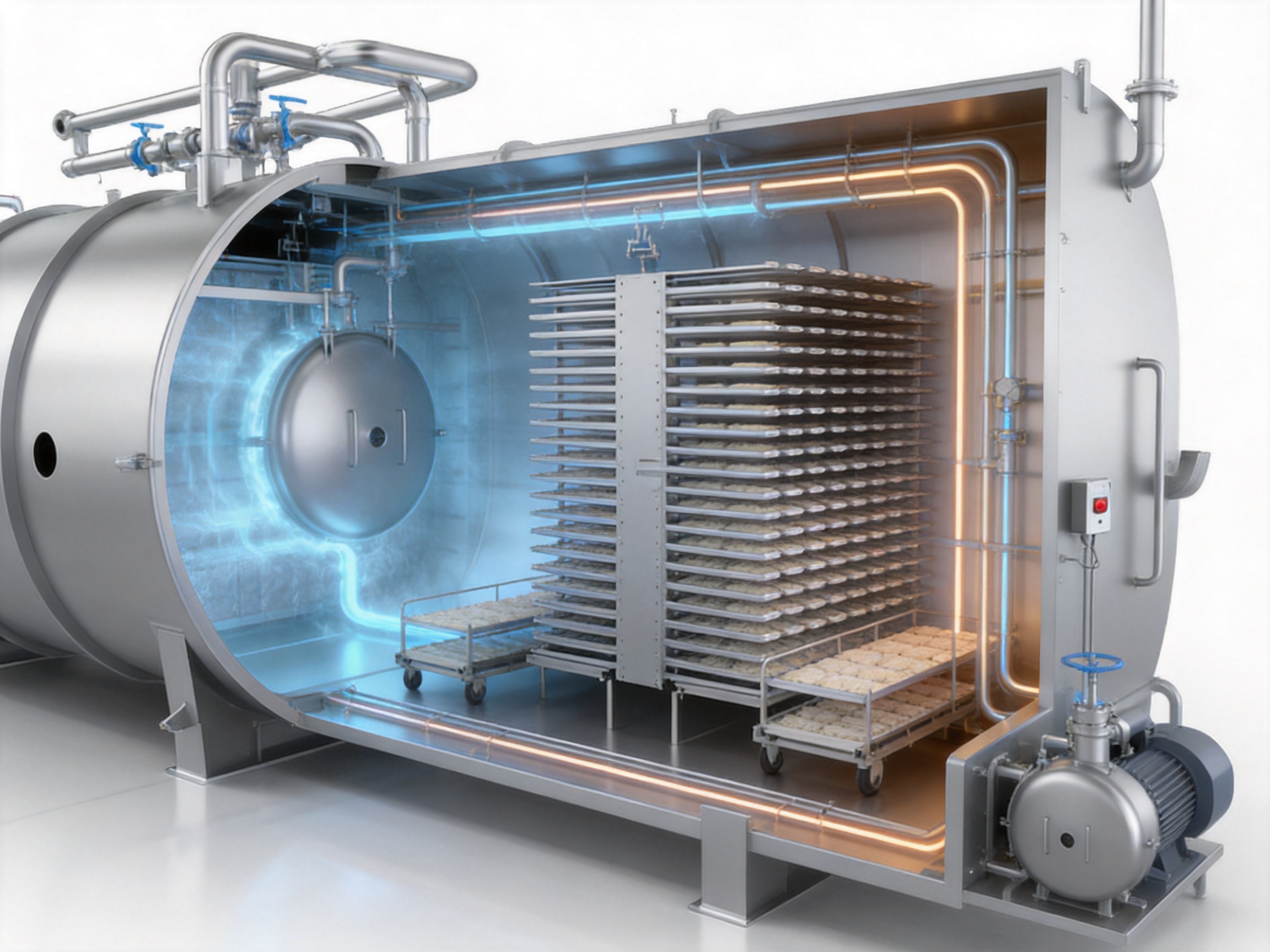

The circular chamber structure is one of the main design characteristics of the system. Chamber geometry affects internal airflow, vapor movement, pressure distribution, mechanical strength, cleaning access, and the placement of shelves and material trolleys.
A circular structure can provide stable mechanical performance under vacuum conditions because the pressure load is distributed across a curved surface. This is particularly important for large chambers that repeatedly experience changes between atmospheric pressure and deep vacuum. A robust structure helps protect the chamber from deformation and supports long-term operational reliability.
The chamber is designed to work with a residual cold energy recovery system and an intelligent control system. According to the specified design performance, the integrated configuration can reduce energy consumption by approximately 10% to 15% compared with conventional equipment under comparable operating conditions. Actual performance depends on the product, process recipe, ambient conditions, loading pattern, utilities, and operating schedule.
The layout of the chamber and auxiliary units can be customized. Customers may define the positions of the chamber, refrigeration units, vacuum pumps, control cabinets, material handling areas, and service access points according to their factory plan. This is an advantage over standardized equipment that may require substantial building modification or create inefficient material-flow routes.
Selected structural parts are constructed from 8-millimeter-thick 304 stainless steel. This material is widely used in food, pharmaceutical, chemical, and biological processing because it combines corrosion resistance, cleanability, mechanical strength, and compatibility with hygienic production environments.
The use of thick stainless-steel components supports structural stability and long service life. It also helps the equipment withstand repeated thermal cycling, vacuum loading, cleaning operations, and the mechanical demands associated with large material trolleys.
The system typically accommodates four sets of material trolleys. Manual or automatic trolley configurations can be selected according to the customer’s production model, labor plan, and automation strategy. Trolley design and loading arrangements influence both batch efficiency and operator safety.
Heat transfer is essential during primary and secondary drying. The product must receive enough controlled energy to sustain sublimation without exceeding its critical temperature. For this reason, shelf construction and heat-transfer-fluid circulation are central to freeze-dryer performance.
The BLK-FD-125 uses radiation shelves fabricated as single integral panels rather than welded spliced sections. This construction avoids unnecessary welded joints across the shelf surface and supports a more consistent heat-transfer path. An integral panel can also reduce the risk of local deformation and improve the stability of repeated heating and cooling cycles.
The heat-transfer-fluid circuit uses a dedicated loop design. This arrangement is intended to distribute heating or cooling more consistently across the shelves and reduce temperature differences between levels. The specified inter-shelf temperature variance is maintained within plus or minus 1°C under suitable operating conditions.
Stable shelf temperature provides several benefits. It helps establish repeatable drying curves, reduces variation between trays, supports more accurate process validation, and improves the uniformity of moisture removal. For food products, it can help preserve appearance and rehydration behavior. For medicinal or biological materials, it can contribute to the controlled preservation of sensitive compounds.
The system can be configured with electric heating or steam heating. Electric heating may be appropriate for facilities that prioritize installation simplicity, precise electrical control, or limited steam availability. Steam heating may be preferred by plants that already operate a central steam system or require integration with existing process utilities.
The choice of heating method should be based on local energy prices, available utilities, required temperature ranges, plant infrastructure, maintenance resources, and the product process. Offering both options allows the equipment to serve a wider range of factories and production environments.
Freeze drying requires a stable low-pressure environment. The BLK-FD-125 is designed to achieve an ultimate vacuum level of 10 Pa or lower. The actual operating pressure used during a production cycle depends on the formulation, loading depth, shelf temperature, condenser conditions, and process recipe.
Large chambers require vacuum systems that can evacuate air efficiently and manage vapor loads throughout the cycle. A single type of pump may not be ideal for every application. Therefore, the system can combine different vacuum pump technologies, including screw pumps with Roots pump sets, rotary vane pumps with Roots pump sets, or water-ring pumps with Roots pump sets.
A Roots pump can increase pumping capacity in the appropriate pressure range, while the primary pump provides the initial evacuation and supports the required base pressure. The combination selected should be matched to chamber volume, product vapor load, process duration, operating environment, and maintenance preferences.
The vacuum system may also use variable-frequency control. Adjusting pump power according to actual demand can prevent unnecessary operation at full capacity. During different stages of a freeze-drying cycle, the required pumping load changes. Intelligent adjustment can therefore reduce energy consumption while maintaining suitable vacuum conditions.
Intelligent vacuum regulation helps coordinate pump operation with chamber pressure, product temperature, vapor generation, and process stage. Rather than treating the pump as a device that simply runs continuously at maximum output, the control system can adjust the operating combination according to demand.
This approach may provide several advantages:
It can shorten the time required to establish the initial vacuum environment.
It can help stabilize chamber pressure during periods of high vapor release.
It can reduce unnecessary electrical consumption during lower-load stages.
It can support different material recipes without requiring the same fixed pump setting for every product.
It can reduce mechanical wear associated with inefficient operating patterns.
Vacuum pump selection and control should always be validated against the actual material and production cycle. Products with high moisture content, high loading density, or difficult vapor-release characteristics may require a different configuration from low-moisture or porous products.
Refrigeration is responsible for pre-freezing products, maintaining low temperatures, condensing water vapor, and supporting the cold trap. The refrigeration system must be designed for the required temperature range, vapor load, batch duration, ambient conditions, and plant utility configuration.
The BLK-FD-125 can be supplied with different refrigeration panel configurations. An external refrigeration system can be used where the customer prefers separate equipment-room installation, simplified chamber access, or a specific plant layout. A built-in refrigeration system may be selected where compact integration and centralized equipment packaging are more important.
A single refrigeration unit can supply cooling to both cold-storage areas and freeze-drying equipment simultaneously. This arrangement can help coordinate cooling demand across the facility. In installations with multiple freeze dryers, intelligent variable-frequency refrigeration units can dynamically manage the drying requirements of different devices.
When multiple freeze dryers operate together, the refrigeration system can be organized to match staggered production schedules. This may help prevent unnecessary peaks in cooling demand and improve the utilization of refrigeration capacity.
Refrigeration reliability depends on component quality, piping design, welding quality, pressure testing, insulation, control logic, and commissioning. The manufacturing process includes extended pressure-holding tests for the refrigeration system. The specified procedure includes more than 48 hours of pressure holding for the refrigeration circuit.
The entire machine also undergoes high-pressure and low-pressure testing. A dedicated high-pressure test is conducted for 48 hours as part of the inspection process. These tests are intended to identify potential leakage, connection defects, sealing problems, or other weaknesses before the equipment reaches the customer’s production site.
Extended testing is especially valuable for large-scale systems because a small defect in a large refrigeration circuit can cause significant downtime after installation. Detecting such issues during manufacturing reduces commissioning risk and supports more reliable delivery.
Batch changeover time can affect the total productivity of a freeze-drying plant. After one batch has been unloaded, the chamber and related systems may require preparation before the next batch can begin. An optional patented intermediate isolation valve can help reduce batch changeover intervals.
The valve separates relevant sections of the system and helps maintain control over the drying chamber and cold trap. This can make it easier to manage transitions between drying operation, cold-trap defrosting, loading, and unloading.
The partitioned bulkhead with valve is used to separate the drying chamber from the cold trap. It enables controlled management of water vapor direction and vacuum status under different operating conditions. During freeze drying, it supports the intended vapor path toward the cold trap. During cold-trap defrosting, it helps prevent water vapor from returning to the drying chamber.
Preventing vapor backflow is important for product quality and system safety. Uncontrolled moisture movement can increase chamber pressure, reintroduce water into the product, extend drying time, and compromise a completed batch. A controlled isolation arrangement creates a more stable operating window for both drying and defrosting.
For many industrial manufacturers, increasing capacity does not necessarily mean purchasing one extremely large machine. A group of coordinated freeze dryers can provide greater scheduling flexibility, process separation, maintenance options, and production redundancy.

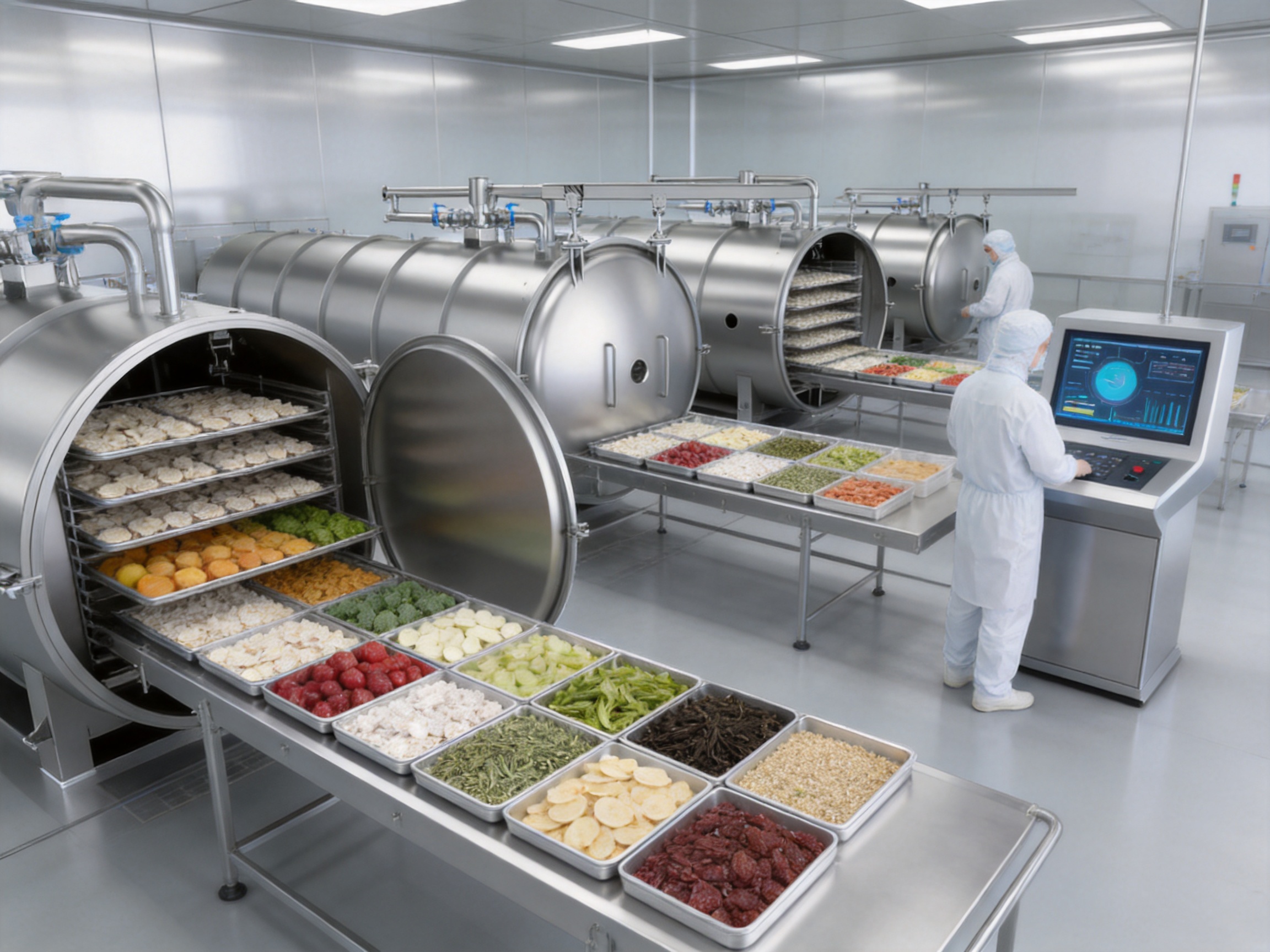

The BLK-FD-125 supports parallel operation of multiple units. The stated production concept indicates that two units can achieve an output capacity comparable to three units under an appropriate staggered operating schedule. Actual results depend on material, cycle time, defrosting time, loading and unloading efficiency, and process organization.
Parallel operation works by connecting multiple freeze dryers within a coordinated production system. Units can be loaded and unloaded at different times, allowing production to continue while another unit is completing a later process stage or undergoing cold-trap defrosting.
In a parallel system, production is organized through staggered feeding and unloading cycles. When one freeze dryer enters the final drying stage and becomes ready for cold-trap defrosting, other units may remain in primary or secondary drying. These operating units can jointly undertake vapor capture and help maintain overall system stability.
This arrangement creates a more reliable defrosting window for the unit that has completed its drying stage. It can reduce interruptions to the overall production sequence and make better use of shared refrigeration and vacuum technologies.
Parallel operation may be particularly attractive for facilities producing multiple product types or serving customers with different delivery schedules. Individual units can be assigned to different recipes, cleaning cycles, or loading patterns while the remaining units continue operating.
Energy efficiency is a major factor in the total cost of ownership of industrial freeze-drying equipment. Electricity is consumed by refrigeration compressors, vacuum pumps, heating systems, control systems, cooling-water equipment, and auxiliary components. A well-designed system must reduce waste without compromising product quality or process stability.
The equipment incorporates several energy-saving concepts, including residual cold energy recovery, heat recovery, intelligent variable-frequency control, heat-pump technology, compressor economization, and coordinated operation of multiple units.
Energy-Saving Feature | Primary Function | Potential Benefit |
Cold energy recovery | Reuses available refrigeration capacity for pre-cooling or subsequent cooling demand | Reduces compressor load and improves refrigeration efficiency |
Heat recovery | Reuses heat generated during refrigeration or other process stages | Reduces heating energy requirements |
Variable-frequency vacuum pumps | Adjusts pump power to actual vacuum demand | Reduces unnecessary electricity consumption |
Variable-frequency refrigeration | Matches refrigeration output to process requirements | Limits operation at excessive capacity |
Heat-pump and economizer system | Improves compressor operating efficiency | Raises coefficient of performance and lowers operating cost |
Parallel system control | Coordinates multiple machines and staggered production | Improves equipment utilization and continuity |
Traditional refrigeration designs may use cold energy once and then discharge it. The cold recovery system is designed to reuse available cold energy from the refrigeration system to pre-cool the next refrigeration system or process demand.
By recovering cold energy, the system can reduce the continuous high-load operation of compressors. The stated design performance indicates that compressor load may be reduced by approximately 20% to 30% in suitable conditions. The actual result depends on the process sequence, ambient conditions, equipment configuration, and control parameters.
Cold energy recovery can be particularly beneficial in factories with frequent batch production, multiple freeze dryers, or substantial pre-freezing requirements. It can also contribute to more stable refrigeration operation by reducing sudden changes in demand.
During freeze drying, heat generated during refrigeration or released during certain process stages may otherwise be discharged. A heat-recovery system can transfer usable heat to material heating or another appropriate process requirement.
For materials requiring heating temperatures of 35°C or lower, the supplied technical information indicates that energy savings can be especially significant under suitable operating conditions. When the required material heating temperature is below 80°C, the system may also reduce energy consumption by approximately 10% in suitable applications.
Heat recovery must be carefully controlled because product temperature is a critical quality parameter. The system should deliver only the necessary amount of heat and should respond accurately to the process recipe. Proper sensors, control valves, heat exchangers, and software logic are essential.
The heat-pump and economizer system is designed to improve compressor efficiency. Its stated coefficient of performance is between 4.8 and 5.9, depending on operating conditions. A higher coefficient of performance means that more useful heating or cooling effect can be obtained from each unit of electrical input.
Compared with conventional freeze-drying equipment, the system is designed to improve energy efficiency by several times in appropriate operating ranges. The precise result should be confirmed through a site-specific energy assessment because factors such as ambient temperature, load, product composition, cycle duration, and utility conditions have a substantial influence on final energy consumption.
The intelligent central control system is designed to manage the operating status of connected equipment. It can coordinate the drying chamber, refrigeration units, vacuum pumps, heating system, valves, sensors, material process stages, and safety functions.
Centralized control is important for large installations because individual components cannot be managed effectively in isolation. Vacuum pressure, shelf temperature, cold-trap temperature, refrigeration load, defrosting status, and heating output must be coordinated throughout the entire process.
The control system can support recipe-based operation. Operators may define process stages such as freezing, pressure reduction, primary drying, secondary drying, pressure stabilization, heating transitions, and cycle completion. Recipes can be adjusted for different products and loading conditions, subject to process validation.
Remote equipment monitoring through a mobile application is supported. Remote access can help authorized personnel review operating status, receive alarms, monitor key parameters, and respond more quickly to abnormal conditions. Multiple language options can also be customized for different users and international installations.
Industrial freeze dryers require safeguards for pressure, temperature, refrigeration, electrical operation, door status, pump operation, and valve sequencing. The central control system helps prevent incorrect operating steps and provides alarms when measured values move outside defined limits.
Safety functions should be configured according to the final equipment design, local regulations, factory procedures, and customer risk assessment. Operators should receive training in normal operation, emergency procedures, cleaning, maintenance, and process-record management.
The performance of a large freeze dryer depends not only on its design but also on the quality of its manufacturing. Large stainless-steel chambers, integrated shelves, refrigeration circuits, vacuum piping, control cabinets, insulation, and material handling components must be fabricated and assembled accurately.
The manufacturer applies five core inspection workflows and 58 inspection procedures to verify overall machine craftsmanship. These procedures are intended to cover important stages from component preparation and structural fabrication to assembly, pressure testing, electrical inspection, control-system verification, and final commissioning.
Detailed inspection is especially important because industrial equipment problems are often caused by small defects that accumulate across multiple subsystems. Examples include uneven shelf assembly, insufficient weld quality, incorrect sensor placement, inadequate insulation, vacuum leakage, improper valve sequencing, or control wiring errors.
Stainless-steel fabrication requires accurate cutting, forming, welding, polishing where applicable, dimensional inspection, and surface cleaning. The chamber and shelves must be manufactured to tight tolerances so that doors, seals, trolleys, shelves, valves, and internal components operate correctly.
Appropriate fabrication procedures help reduce deformation and improve the consistency of chamber sealing. The use of 304 stainless steel in specified structural areas provides a balance of strength, corrosion resistance, and cleanability for industrial applications.
Refrigeration inspection includes pressure testing, connection verification, leak detection, component checks, control checks, and performance evaluation. The extended pressure-holding procedure provides time to identify slow leaks that may not be visible during a short test.
High-pressure and low-pressure testing of the complete machine further supports system reliability. Testing should be performed using approved procedures and appropriate safety controls, with records retained as part of the equipment documentation.
Electrical inspection covers cabinet assembly, cable identification, grounding, component installation, sensor wiring, protective devices, control-panel operation, and communication functions. Software and hardware should be tested together to verify that pumps, valves, compressors, heaters, alarms, and safety interlocks respond correctly.
Factory acceptance testing can provide customers with greater confidence before shipment. Depending on the project, acceptance may include visual inspection, dry-run testing, vacuum testing, temperature verification, alarm testing, control demonstrations, and review of technical documents.
The actual processing capacity of a freeze dryer varies according to material density, solids content, moisture content, loading thickness, tray arrangement, freezing characteristics, and required residual moisture. A capacity figure should therefore be treated as a process reference rather than a universal result for every product.
For the BLK-FD-125, the reference calculation is based on a tray area of approximately 125 square meters and a loading height of 35 millimeters. The supplied production model indicates different capacity ranges for food, solution-based materials, and fruits and vegetables.
Material Category | Reference Processing Capacity per Chamber | Important Consideration |
Food products | Approximately 3,000 to 4,000 kilograms | Depends on density, formulation, moisture, and loading pattern |
Solution-based materials | Approximately 2,500 to 3,000 kilograms | Depends on solids content, fill depth, and freezing behavior |
Fruits and vegetables | Approximately 2,000 to 2,500 kilograms | Depends on cut size, natural moisture, density, and product geometry |
These reference ranges should be confirmed through material testing or a process-development study before final equipment selection. A manufacturer may evaluate sample materials to determine freezing time, primary-drying behavior, secondary-drying requirements, heat-transfer performance, and final moisture content.
The BLK-FD-125 is suitable for a broad range of industrial materials. Its large capacity and configurable process systems make it appropriate for manufacturers that require flexible freeze-drying production.
Freeze-dried foods can include coffee, fruit pieces, vegetables, prepared meals, dairy-based products, meat products, seafood, soups, sauces, and snack ingredients. The process can preserve flavor and structure while producing products with low moisture and long storage potential when correctly packaged.
Fruits and vegetables contain substantial moisture and may have irregular shapes and varying densities. Freeze drying can preserve color, aroma, flavor, and porous structure. Products can often be rehydrated more effectively than materials dried through high-temperature methods.
Medicinal herbs, botanical extracts, and health-product ingredients may contain temperature-sensitive compounds. Controlled low-temperature drying and vacuum operation can help protect product characteristics, provided that the process is developed and validated for the specific material.
Biological products may require carefully controlled freezing, drying, storage, and packaging conditions. The equipment’s precise shelf control, vacuum regulation, and recipe management can support process development for suitable biological materials.
Some chemical materials require moisture removal without excessive heat exposure. Freeze drying may be appropriate for selected formulations, catalysts, intermediates, and specialty compounds. Compatibility between the product, chamber materials, seals, heat-transfer fluids, and cleaning agents should be evaluated before production.
The BLK-FD-125 is differentiated from conventional large freeze-drying equipment through the combination of capacity, temperature control, configurable utility systems, energy recovery, intelligent operation, and manufacturing inspection.
First, the integrated shelf design and dedicated circulation loops support more consistent temperature distribution. This can help reduce variation between shelves and improve batch uniformity.
Second, the system offers multiple vacuum-pump configurations rather than a single fixed arrangement. This gives users greater flexibility in matching the pump system to product vapor load, plant requirements, and energy objectives.
Third, variable-frequency control allows vacuum and refrigeration output to be adjusted according to demand. Conventional systems that operate pumps and compressors continuously at fixed high capacity may consume more energy during low-load process stages.
Fourth, cold-energy recovery and heat-recovery systems can reduce wasted thermal energy. These technologies are especially valuable in high-volume production, where repeated cycles magnify the cost of energy losses.
Fifth, optional isolation-valve and shared-vacuum technologies support staggered operation and more efficient batch transitions. This can improve equipment utilization and reduce interruptions caused by defrosting.
Sixth, the chamber, heating method, refrigeration arrangement, and equipment positions can be customized. Such flexibility allows the system to fit a wider range of factory layouts and production strategies than a completely standardized machine.
Finally, the manufacturing process includes extensive inspection and pressure-testing procedures. Strong quality assurance is essential for customers that depend on continuous operation and cannot tolerate frequent unplanned shutdowns.
Before installing a large freeze dryer, the customer should evaluate building height, floor loading, equipment access, maintenance clearances, electrical supply, steam availability if applicable, cooling-water requirements, drainage, ventilation, product flow, personnel movement, and finished-product packaging areas.
The position of the drying chamber and auxiliary systems should support a logical material path. Raw material should move efficiently from preparation and freezing to loading, drying, unloading, inspection, and packaging. Poor layout design can reduce the benefits of high-capacity equipment by creating bottlenecks outside the chamber.
Maintenance access should be considered during the design phase. Operators and service personnel need sufficient space to inspect pumps, refrigeration components, valves, electrical cabinets, sensors, seals, filters, and heat-transfer circuits.
The plant should also determine whether manual or automatic trolley handling is more appropriate. Manual systems may be suitable for certain production scales or facility layouts. Automatic handling may improve labor efficiency and reduce repetitive work in high-throughput plants.
Utilities must be verified before commissioning. Electrical capacity, steam pressure, cooling-water conditions, ambient temperature, drainage, and network infrastructure may influence final performance. A detailed technical survey can reduce installation delays and ensure that the machine operates according to its design specifications.
Regular maintenance is necessary to preserve freeze-dryer performance. Maintenance schedules should cover vacuum pumps, refrigeration compressors, heat exchangers, valves, seals, sensors, filters, electrical components, control software, trolley wheels, shelf surfaces, and chamber doors.
Vacuum pumps should be inspected according to their type and operating hours. Oil-based pumps require appropriate oil management, while dry screw pumps require inspection of filters, seals, and lubrication systems where applicable. Roots pumps should be operated within their specified pressure range and maintained according to the manufacturer’s instructions.
Refrigeration systems require monitoring of operating pressure, temperature, refrigerant condition, compressor performance, condenser cleanliness, and control signals. Any evidence of leakage or abnormal pressure should be investigated promptly.
Shelf temperature sensors and chamber pressure sensors should be checked periodically. Accurate sensors are essential for process repeatability and product quality. Calibration records should be maintained, particularly for food, pharmaceutical, biological, or regulated applications.
Cleaning procedures should be compatible with stainless steel, seals, sensors, insulation, and product requirements. Operators should prevent excessive water ingress into electrical areas and should follow validated cleaning instructions where applicable.
The manufacturer of the BLK-FD-125 specializes in the research, development, and production of large-scale freeze-drying and refrigeration equipment. Its technical capabilities cover design, fabrication, engineering, sales, installation, commissioning, and after-sales support.
The company was established in 2014 in Changzhou, Jiangsu, China, building on refrigeration-industry experience that began in 2003. This background combines refrigeration knowledge with long-term development in vacuum freeze-drying technology.
Its equipment is designed for food, agricultural products, medicinal herbs, health supplements, biological products, chemical materials, and other industrial sectors. This broad application experience can help customers select suitable chamber sizes, heating methods, refrigeration configurations, pump systems, automation levels, and production layouts.
The company operates an integrated professional team that includes research and development, engineering, sales, installation, commissioning, and after-sales service. This integrated structure can improve communication between design and production teams and help customers receive more consistent technical support throughout a project.
Long-term cooperation with universities and research institutions, including agricultural science and food-technology organizations, supports continued development of freeze-drying processes and equipment technologies. The company has also obtained more than 100 national invention and utility-model patents.
The manufacturing base covers approximately 24,000 square meters. Its products are exported to more than 30 countries and regions, demonstrating experience in international equipment delivery, technical communication, and customer support.
The BLK-FD-125 is designed according to international specifications. The equipment information identifies European CE certification and compliance with mechanical health and safety standards, as well as certification under the China Quality Management System.
Internationally oriented design can help customers evaluate the equipment against recognized expectations for safety, quality, documentation, and sustainability. Certification does not replace the customer’s responsibility to comply with local installation, electrical, pressure-vessel, food, pharmaceutical, environmental, and workplace-safety regulations, but it provides an important foundation for project review.
Quality-management certification supports controlled production procedures, document management, inspection records, corrective actions, and continuous improvement. For large industrial equipment, systematic quality management is essential because the final machine consists of many connected parts and processes.
The best configuration depends on the product and the factory rather than on capacity alone. Customers should provide information about product type, batch size, initial moisture, target residual moisture, loading thickness, freezing method, expected cycle time, required throughput, available utilities, cleaning requirements, and automation goals.
The vacuum system should be selected according to chamber size and vapor load. Food products with high moisture content may require strong vapor-handling capacity. Materials with lower moisture or smaller loads may benefit from a more energy-conscious pump arrangement.
The heating method should match available utilities. Steam heating can integrate well with an existing industrial steam network, while electric heating may provide straightforward installation and precise control where sufficient electrical capacity is available.
The refrigeration configuration should reflect the factory layout and production schedule. External refrigeration may be suitable for a dedicated equipment room, while built-in refrigeration may be preferable when compact integration is important.
For plants planning future expansion, parallel operation should be considered during the initial design. Space, utility capacity, control architecture, and material flow can be prepared for additional units even if only one machine is installed initially.
The BLK-FD-125 is a high-capacity industrial freeze-drying system designed for manufacturers that require large batch volumes, stable process control, energy-conscious operation, and flexible configuration.
Its 125.1-square-meter freeze-drying area, 1,250-kilogram standard loading capacity, 2,500-liter liquid capacity, and ultimate vacuum level of 10 Pa or lower provide a strong foundation for industrial production. Integrated radiation shelves and dedicated heat-transfer circuits help maintain inter-shelf temperature uniformity within plus or minus 1°C.
The circular chamber structure, 304 stainless-steel construction, customizable equipment layout, electric or steam heating options, and manual or automatic trolley compatibility make the system adaptable to different factories and applications.
Its vacuum and refrigeration systems can be configured according to production requirements. Variable-frequency control, cold-energy recovery, heat recovery, heat-pump technology, and economizer functions contribute to lower operating costs and more efficient use of utilities.
Parallel operation and shared vacuum technology support staggered production, shorter interruptions, and more effective use of connected equipment. The central control system provides coordinated management, remote monitoring, multilingual customization, and recipe-based operation.
Most importantly, the equipment is supported by a manufacturing process that includes five core inspection workflows, 58 inspection procedures, extended refrigeration pressure holding, and high-pressure and low-pressure tests. These measures help ensure that a large and complex freeze-drying system reaches the customer with reliable structural, refrigeration, vacuum, and control performance.
For companies seeking a scalable solution for food, agricultural products, medicinal materials, biological products, chemicals, and other temperature-sensitive materials, this model offers a combination of capacity, precision, energy efficiency, customization, and international manufacturing capability.
The equipment has a 125.1-square-meter freeze-drying area, a standard loading capacity of 1,250 kilograms, and a liquid loading capacity of 2,500 liters. Actual material throughput depends on product density, moisture content, loading thickness, freezing behavior, and drying requirements.
The specified ultimate vacuum level is 10 Pa or lower. The recommended operating pressure during production depends on the material, process recipe, vapor load, shelf temperature, and cold-trap conditions.
Yes. The system can be configured for electric heating or steam heating. The preferred option should be selected according to the factory’s utilities, energy costs, control requirements, and existing infrastructure.
The radiation shelves use single integral panels without welded splicing across the main shelf structure. A dedicated heat-transfer-fluid loop is also used to support stable circulation. The specified inter-shelf temperature variance is within plus or minus 1°C under suitable operating conditions.
Yes. The system supports parallel operation of multiple units. A staggered feeding and unloading strategy can allow one unit to undergo defrosting while other units continue drying, improving production continuity and equipment utilization.
Possible combinations include a screw pump with a Roots pump set, a rotary vane pump with a Roots pump set, or a water-ring pump with a Roots pump set. The final configuration should be selected according to product vapor load, required vacuum performance, plant conditions, and maintenance preferences.
Yes. The equipment can incorporate cold-energy recovery, heat recovery, variable-frequency vacuum and refrigeration control, and a heat-pump and economizer system. These technologies are designed to reduce compressor load, reuse available heat, and lower unnecessary energy consumption.
The equipment can be used for food products, fruits and vegetables, medicinal herbs, health supplements, biological supplies, chemical materials, extracts, and other suitable temperature-sensitive materials. Each product requires process testing and recipe development before commercial production.
The manufacturing process includes five core inspection workflows and 58 inspection procedures. The refrigeration system undergoes more than 48 hours of pressure-holding testing, and the entire machine is subjected to high-pressure and low-pressure testing, including a dedicated 48-hour high-pressure test.
Yes. The positions of the chamber and auxiliary units can be customized according to the customer’s factory layout, production flow, maintenance requirements, heating method, refrigeration arrangement, and automation plan.
Remote monitoring through a mobile application is supported. Authorized users can monitor operating status and receive information about equipment conditions. Multiple language options can also be customized.
A customer should provide the product type, expected batch size, initial moisture, target residual moisture, loading thickness, required throughput, desired cycle time, available heating and cooling utilities, factory layout, automation requirements, and any applicable hygiene or regulatory standards.
1. Technical specification sheet for BLK-FD-125 large-scale freeze-drying equipment.
2. Industrial vacuum freeze-drying process and equipment design documentation.
3. Manufacturer-provided information on radiation shelves, heat-transfer circuits, vacuum pump configurations, and refrigeration systems.
4. Manufacturer-provided energy-recovery and heat-pump system descriptions.
5. Manufacturer-provided quality-control procedures, pressure-testing requirements, and inspection workflow information.
6. General principles of lyophilization, sublimation drying, vacuum control, and heat-transfer engineering.
7. International mechanical safety and quality-management requirements applicable to industrial processing equipment.
8. Product-specific process-development principles for food, agricultural, medicinal, biological, and chemical freeze drying.
9. Technical guidance for industrial refrigeration, vacuum pumping, thermal-fluid circulation, and energy-efficiency evaluation.
10. Equipment installation, commissioning, maintenance, and operational best-practice documentation.
2026/05/28
2026/05/28
2026/05/28
2026/05/28
Custom Industrial Lyophilizer Freeze Dryer Manufacturers
English
русский
Español
Français
Deutsch
عربى
