BLK-FD-200 Large-Scale Freeze Dryer: Engineering High-Capacity, Efficient, and Reliable Production

Large-scale freeze-drying operations require far more than a large chamber. Industrial users need stable temperature control, dependable vacuum performance, high product consistency, short batch intervals, efficient energy use, and equipment that can operate safely for many years. The BLK-FD-200 is designed to address these requirements as a heavy-duty industrial freeze dryer with a nominal freeze-drying area of 202.2 square meters, a standard loading capacity of 2,000 kilograms, and a liquid loading capacity of up to 4,000 liters.

Manufactured by Jiangsu Bolaike Freezing Technology Development Co., Ltd., the BLK-FD-200 is intended for demanding applications in food processing, fruits and vegetables, medicinal materials, biological products, health supplements, chemicals, and other industries that require the preservation of structure, flavor, nutrients, color, and active ingredients. Its design combines a cylindrical chamber, high-quality stainless-steel construction, intelligent controls, flexible refrigeration and vacuum configurations, and energy-recovery technologies.

The equipment is also suitable for production environments where expansion, customization, and continuous operation are important. Multiple units can be connected in parallel, different heating methods can be selected, chamber and unit positions can be customized, and trolley configurations can be adapted to manual or automatic handling requirements. These features make the BLK-FD-200 more than a standard freeze dryer: it is a scalable production platform designed around the process requirements of modern industrial manufacturers.

1. The Role of Large-Scale Freeze Drying in Modern Manufacturing

Freeze drying, also called lyophilization, removes water from a frozen product through sublimation under vacuum. Unlike conventional hot-air drying, the process does not depend primarily on high temperatures to evaporate liquid water. Instead, the product is frozen, pressure is reduced, and controlled heat is supplied so that ice changes directly from a solid to a vapor.

This process can protect sensitive materials that would otherwise be damaged by conventional drying. Fruits, vegetables, instant coffee, herbs, microorganisms, pharmaceutical intermediates, biological materials, and other products may lose flavor, color, nutritional value, activity, or physical structure when exposed to excessive heat. Freeze drying helps reduce these risks by using low-temperature processing and carefully managed vacuum conditions.

At small scale, a freeze dryer may be used for laboratory development or pilot production. At industrial scale, however, the equipment must maintain uniform conditions across hundreds of square meters of shelf area. Heat transfer, vapor removal, product loading, refrigeration capacity, vacuum stability, defrosting, sanitation, material handling, and control-system performance all become closely connected.

The BLK-FD-200 is engineered for this type of environment. Its 202.2-square-meter freeze-drying area provides a large working surface for high-volume production. A standard loading capacity of 2,000 kilograms supports industrial batch sizes, while the 4,000-liter liquid loading capacity gives processors flexibility when handling liquid formulations, extracts, purees, coffee solutions, and other products that require pre-freezing or controlled filling.

Large-scale capacity is valuable only when product quality remains consistent. For this reason, the BLK-FD-200 places particular emphasis on shelf temperature uniformity, chamber strength, vacuum performance, and process control. These elements help reduce the difference between material positioned near the center of the chamber and material positioned near the chamber walls or at different shelf levels.

2. Core Technical Specifications

The main specifications of the BLK-FD-200 establish its position as a large industrial freeze-drying system rather than a pilot or medium-sized machine. The equipment is designed for users that need substantial batch throughput while retaining control over the process conditions required by sensitive products.

Specification	BLK-FD-200 Performance	Production Significance
Freeze-drying area	202.2 m²	Provides a large surface area for industrial batch processing
Standard loading capacity	2,000 kg	Supports high-volume production of prepared materials
Liquid loading capacity	4,000 L	Suitable for liquid products, extracts, solutions, and formulations
Ultimate vacuum level	≤10 Pa	Creates the low-pressure environment required for sublimation
Shelf temperature deviation	Within ±1°C	Supports more consistent drying across shelf surfaces
Chamber material	8 mm thick 304 stainless steel	Provides structural stability, corrosion resistance, and service life
Material trolley capacity	Typically eight sets	Allows organized loading and unloading; manual or automatic options are available

Actual processing capacity depends on product density, fill thickness, moisture content, formulation, freezing characteristics, and the selected process cycle. The stated values should therefore be used as equipment reference specifications rather than as a universal guarantee for every product. Before final configuration, manufacturers should conduct process validation and confirm the appropriate loading method, tray arrangement, freezing profile, heating program, and vacuum strategy.

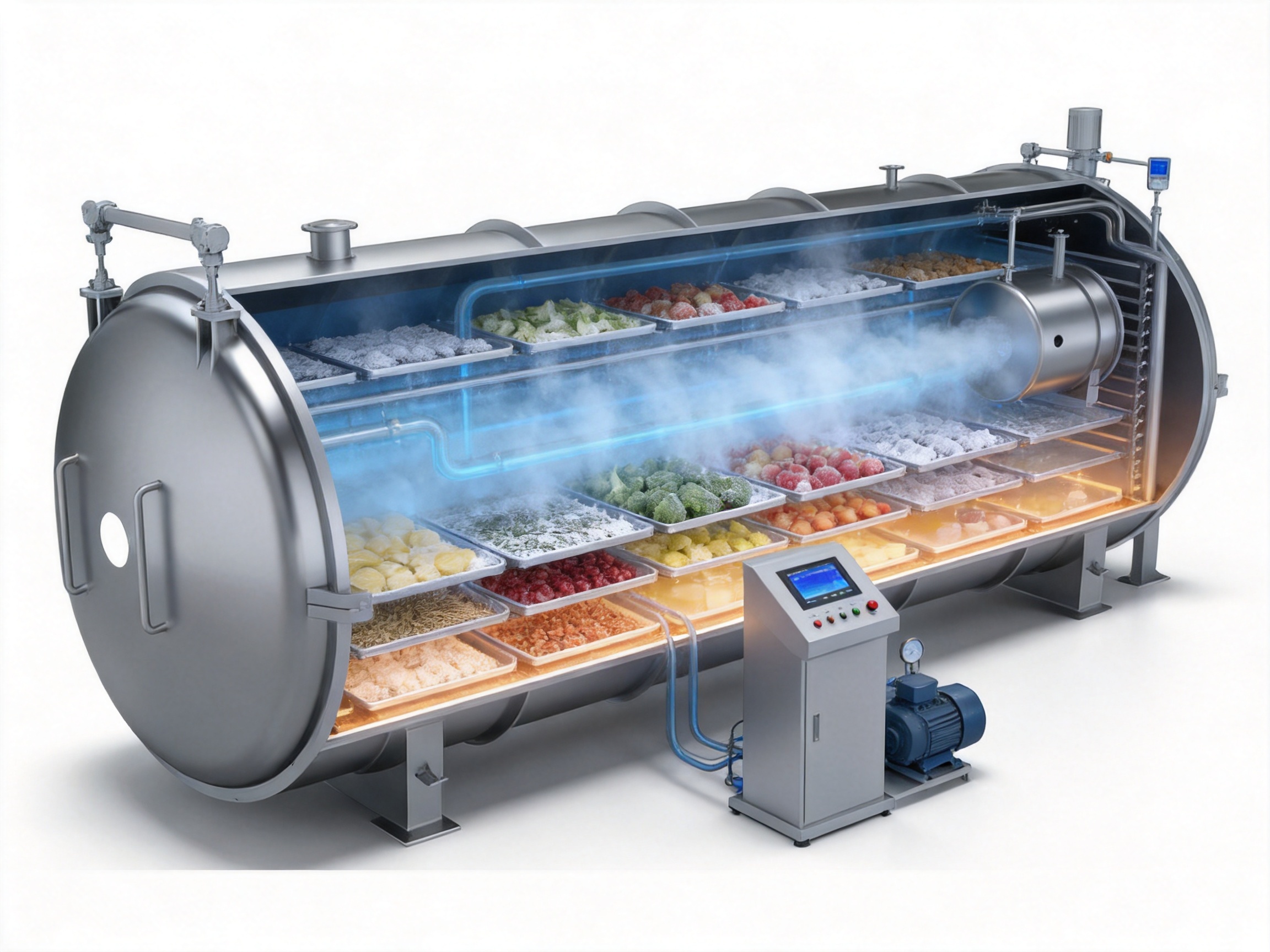

3. Cylindrical Chamber Design and Industrial Construction

The BLK-FD-200 uses a cylindrical chamber structure designed for large-scale operation. A cylindrical configuration can provide favorable pressure distribution and structural strength when the chamber is subjected to deep vacuum. This is particularly important for equipment with a large internal volume and a substantial shelf area.

The chamber is constructed from 8-millimeter-thick 304 stainless steel. This material is widely used in food, pharmaceutical, chemical, and hygienic processing environments because it offers a practical combination of corrosion resistance, mechanical strength, cleanability, and long service life. The thick construction contributes to equipment stability and supports the chamber’s ability to withstand repeated vacuum cycles.

For industrial users, chamber construction influences more than durability. It affects maintenance requirements, cleaning procedures, thermal stability, pressure integrity, and the long-term reliability of doors, connections, shelves, and internal supports. A heavy-duty chamber can also help reduce deformation and alignment problems that may occur when large equipment is repeatedly exposed to pressure changes and temperature fluctuations.

The BLK-FD-200 typically accommodates eight sets of material trolleys. Manual and automatic trolley options can be selected according to the factory’s labor model, automation strategy, and material-handling system. Trolleys help organize trays during loading, transfer, and unloading, allowing operators to prepare materials outside the chamber before beginning the production cycle.

Chamber layout and unit placement can be customized. This is important because large-scale freeze dryers are rarely installed in identical facilities. A factory may have restrictions relating to building height, door access, floor load, utility routing, cold-storage position, cleanroom zoning, production flow, or future expansion. The ability to customize positions and layout helps integrate the equipment into an existing plant rather than forcing the plant to adopt an inflexible arrangement.

BLK-FD-200

4. Shelf Heat Transfer and Temperature Uniformity

Uniform heat transfer is one of the most important factors in freeze-drying. During primary drying, heat must be transferred to the frozen product at a controlled rate. If one area receives too much heat, the product may collapse, melt, or experience undesirable structural changes. If another area receives too little heat, drying may be incomplete or the batch cycle may become unnecessarily long.

The BLK-FD-200 uses one-piece radiation plates without welded joints. This design helps reduce potential weak points and supports a more stable shelf surface. The shelf construction is combined with a specially designed heat-transfer-fluid circuit that keeps the inter-shelf temperature deviation within ±1°C.

Maintaining a narrow temperature deviation can offer several production benefits. It may improve batch-to-batch consistency, reduce the need for excessive safety margins, and help operators create process recipes that are more predictable across the entire chamber. For products with narrow process windows, uniform shelves are especially important because small temperature differences can influence sublimation rate, residual moisture, appearance, rehydration performance, and active-ingredient retention.

The one-piece radiation plate design also supports long-term cleanliness and inspection. Welded joints can require careful finishing and inspection, particularly in applications where product residues, moisture, or cleaning chemicals may create maintenance concerns. A design with fewer welded joints in the radiation plate can simplify the internal structure and contribute to a smoother, more stable product-contact environment.

Heating can be configured for electric or steam operation. Electric heating may be convenient where precise electrical control is preferred or where steam infrastructure is unavailable. Steam heating may be suitable for factories that already operate a central boiler system or require integration with existing process utilities. Selecting the appropriate heating method allows the system to be matched to local energy costs, facility design, process requirements, and environmental objectives.

5. Vacuum Performance and Vapor Management

Freeze drying depends on the controlled removal of water vapor. After the product is frozen, the chamber pressure is reduced to create conditions in which ice can sublime. The vapor generated during sublimation must then be transported away from the product and captured, normally by a low-temperature condenser or cold trap.

The BLK-FD-200 reaches an ultimate vacuum level of no more than 10 Pa. This low-pressure capability supports the sublimation process and provides the operating range needed for many industrial freeze-drying applications. In actual production, the ideal pressure is determined by the product, shelf temperature, ice structure, condenser performance, and required drying rate. A lower ultimate pressure does not automatically mean a better process, but reliable vacuum performance gives process engineers greater control.

The equipment can use different combinations of vacuum pumps, including screw pumps with Roots pump sets, rotary vane pumps with Roots pump sets, and water ring pumps with Roots pump sets. This modular approach allows the vacuum system to be selected according to production requirements, product characteristics, maintenance preferences, and facility conditions.

Variable-frequency vacuum pump configurations can adjust pump power according to demand. During different stages of a freeze-drying cycle, the vapor load and vacuum requirements may change. Operating the pump at the appropriate capacity can help avoid unnecessary power consumption while still maintaining the required pressure. Intelligent variable-frequency combinations also provide a path toward more responsive process control.

Effective vapor management is particularly important in large chambers. As the batch size increases, the amount of vapor released during primary drying also increases. The vacuum system must work together with the condenser, valves, ducts, chamber, and control system to prevent unstable pressure conditions. The BLK-FD-200 is designed with these components as part of an integrated system rather than as isolated pieces of equipment.

6. Refrigeration System Configurations

Refrigeration is required to freeze the product before drying and to maintain the cold trap at a sufficiently low temperature during sublimation. A reliable refrigeration system must respond to changing loads, support repeatable freezing, and maintain stable performance during long production cycles.

The BLK-FD-200 can be configured with external or built-in refrigeration systems. An external arrangement may be advantageous when the factory has a separate equipment room, centralized refrigeration infrastructure, or specific requirements for service access and heat rejection. A built-in system may be preferred where a more compact arrangement is needed or where the customer wants the refrigeration equipment integrated with the freeze dryer.

A single refrigeration unit can supply cooling to both cold storage and freeze-drying equipment simultaneously. This arrangement may help coordinate the freezing and storage stages while reducing the need for duplicated refrigeration assets. The specific configuration depends on the site’s production volume, cold-storage capacity, operating schedule, and utility design.

Intelligent variable-frequency refrigeration units can dynamically manage the drying process of multiple freeze dryers. When several machines operate in parallel, cooling demand changes according to the stage of each batch. Variable-frequency control helps match refrigeration output with actual demand, potentially reducing unnecessary cycling and improving operating efficiency.

Refrigeration reliability is also connected to product quality. Inconsistent freezing can create different ice crystal structures in the product. Ice crystal size and distribution influence pore structure, sublimation resistance, drying time, final appearance, and rehydration characteristics. Stable refrigeration control helps manufacturers develop repeatable freezing profiles for different raw materials and formulations.

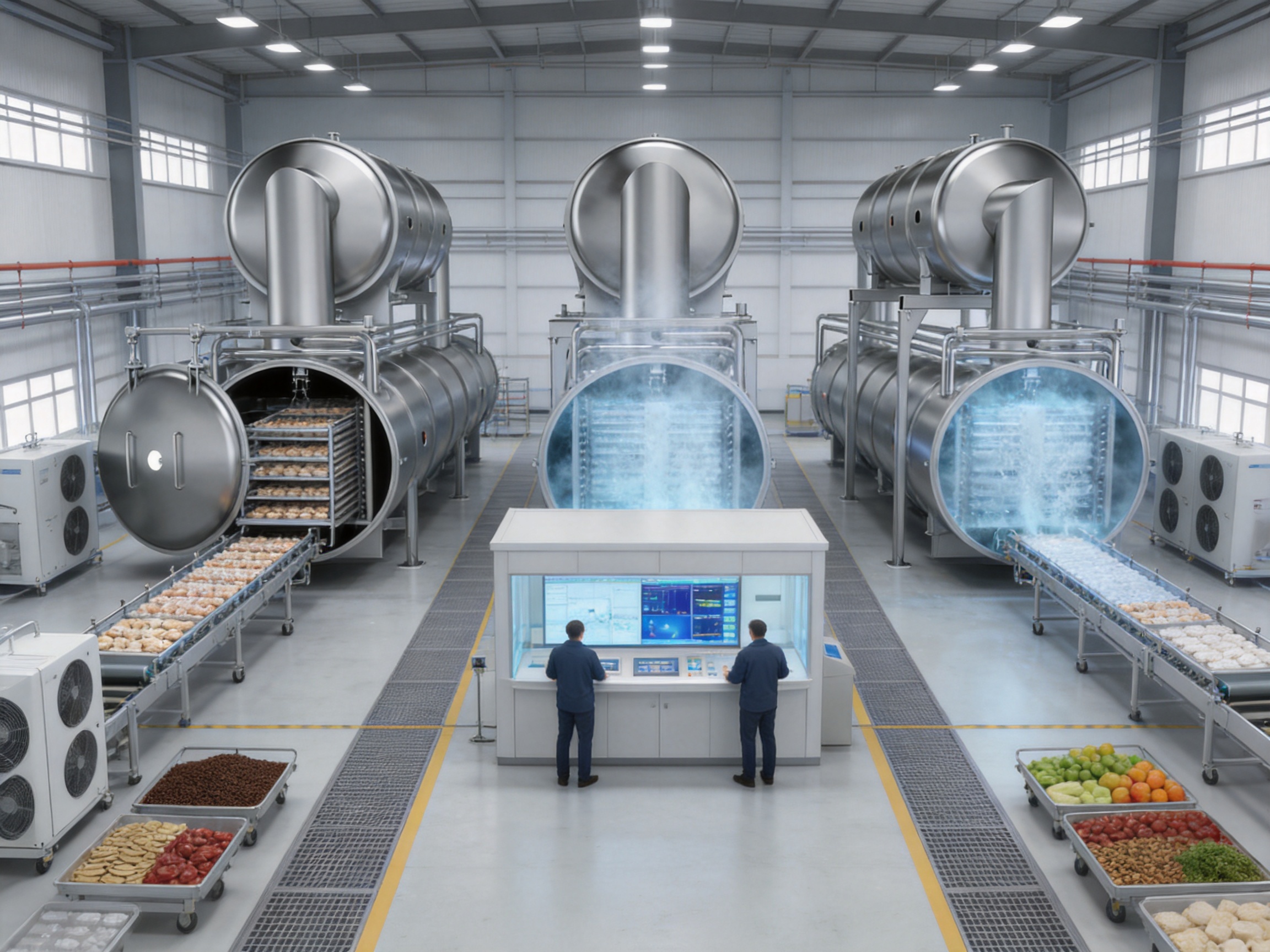

7. Parallel Production and Reduced Batch Intervals

One of the notable advantages of the BLK-FD-200 is its support for parallel operation. Multiple freeze dryers can be connected and managed as part of a coordinated production system. The equipment information indicates that two units can achieve the output of three under suitable operating conditions through staggered feeding, unloading, drying, and defrosting cycles.

Parallel operation does not mean that machines are simply placed next to one another. The production schedule, vacuum system, refrigeration capacity, material-handling process, and control architecture must be designed together. The objective is to avoid idle time and use the available utilities more efficiently.

In a coordinated parallel system, one unit may be in the final drying stage while another is being loaded and a third is undergoing a different stage of the cycle. When one unit is ready for cold-trap defrosting, other operating units can help undertake water vapor capture and maintain system stability. This provides a more controlled defrosting window and can reduce interruptions to the overall process.

The optional intermediate isolation valve supports this strategy. The valve can separate the drying chamber from the cold trap, allowing operators to manage the chamber and condenser more independently during appropriate process stages. By controlling vapor flow direction and vacuum status, the isolation arrangement can help prevent vapor backflow, protect product quality, and shorten the interval between batches.

For large manufacturers, reducing batch intervals can be as important as increasing nominal chamber capacity. A machine that holds a large load but spends excessive time waiting for defrosting, unloading, cleaning, or vacuum recovery may not deliver the expected annual output. The BLK-FD-200 addresses this challenge through parallel system design, isolation technology, coordinated controls, and flexible material handling.

8. Energy Efficiency and Operating Cost Reduction

Energy consumption is a major consideration in industrial freeze drying. The process requires refrigeration to freeze the product and condense vapor, vacuum pumping to maintain low pressure, and heating to supply the energy required for sublimation. Because freeze-drying cycles can be long, even modest efficiency improvements can have a meaningful effect on annual operating costs.

The BLK-FD-200 incorporates residual cold recovery and intelligent control technologies. The equipment information indicates that energy consumption can be reduced by approximately 10% to 15% compared with traditional equipment through these design features. The wider energy-saving system is described as capable of reducing energy consumption by approximately 20% to 40%, depending on the configuration, process conditions, product, and operating strategy.

Cold recovery is based on reusing cold energy from the refrigeration system to pre-cool the next refrigeration stage. Traditional systems may discharge cold energy after it has been used, forcing compressors to remain under a high load. Recovering and reusing this energy can reduce the overall compressor load and improve the utilization of the refrigeration system.

Heat recovery provides another opportunity for improvement. During freeze drying, heat generated by the refrigeration or sublimation process may otherwise be discharged. The BLK-FD-200 can be configured to recycle suitable heat or steam heat for material drying. When the process requires a relatively low heating temperature, the recovered energy may substantially reduce the need for new heating input.

A heat pump and economizer system can increase compressor coefficient of performance to a reported range of 4.8 to 5.9. In simple terms, a higher coefficient of performance means that the system can deliver more useful heating or cooling for each unit of energy consumed. The actual result depends on operating temperatures, ambient conditions, equipment loading, refrigerant selection, and maintenance quality.

Energy efficiency also comes from intelligent control rather than hardware alone. Variable-frequency vacuum pumps and refrigeration units can adjust capacity according to demand. Central control can coordinate connected equipment, prevent unnecessary simultaneous peak loads, and provide operators with information for identifying abnormal energy use.

For a production manager, energy savings should be evaluated together with throughput and product quality. A shorter cycle can reduce energy consumption per kilogram even if the instantaneous power demand remains similar. The equipment information indicates that the complete energy-saving strategy may shorten a single-batch cycle by approximately 15% to 25% under suitable process conditions.

9. Manufacturing Quality and Inspection Procedures

Industrial freeze dryers require disciplined manufacturing because many components operate under vacuum, low temperature, pressure variation, and repeated thermal cycling. A small leak, poor surface finish, incorrect alignment, weak weld, or defective valve can affect the entire production process. For this reason, manufacturing quality must be built into the equipment from material selection through final commissioning.

The production process for the BLK-FD-200 includes five core inspection workflows and 58 inspection procedures. These inspections are intended to verify overall machine craftsmanship and support reliable long-term operation. Although the exact inspection records depend on the project and configuration, a comprehensive quality program generally includes material verification, dimensional inspection, welding inspection, pressure testing, electrical testing, refrigeration testing, vacuum testing, control-system verification, and final functional checks.

Pressure testing is particularly important for refrigeration systems. The equipment information specifies more than 48 hours of pressure-holding testing for the refrigeration system. Long-duration pressure testing helps reveal leaks that may not appear during a short inspection. It also gives technicians an opportunity to confirm the stability of connections, valves, pipework, and other pressure-bearing components.

The entire machine undergoes two pressure tests, including high-pressure and low-pressure testing. A dedicated 48-hour high-pressure test is used to verify the integrity of the relevant system. These procedures help reduce the risk of refrigerant leakage, vacuum instability, and unexpected downtime after installation.

Quality inspection is not limited to the refrigeration circuit. The chamber must maintain structural integrity under vacuum. Shelves must remain properly aligned. Trolleys must move safely. Door seals must provide reliable sealing. Sensors must be correctly positioned and calibrated. Electrical cabinets must be tested for safe operation. The central control system must communicate with pumps, compressors, valves, heating components, and safety devices.

By combining detailed inspections with factory testing, the manufacturer can identify and correct problems before delivery. This approach may reduce installation risk and help shorten the time required for site commissioning. It also gives customers greater confidence that the equipment has been assembled and tested as a complete industrial system rather than as a collection of unverified components.

10. Intelligent Central Control

Modern freeze-drying production requires the ability to monitor and control many variables at the same time. These variables may include shelf temperature, product temperature, chamber pressure, cold-trap temperature, refrigeration status, vacuum-pump operation, heating output, valve position, defrosting status, and alarm conditions.

The BLK-FD-200 uses an intelligent central control system capable of managing the operational status of connected equipment. A centralized interface can make it easier for operators to review the production condition, adjust process parameters, record data, respond to alarms, and coordinate multiple machines.

Remote monitoring through a mobile application is supported. Remote access can be useful for production managers, maintenance teams, and service engineers who need to review equipment status without remaining beside the machine throughout the entire cycle. It can also help identify developing problems earlier, provided that access is protected through appropriate cybersecurity and user-management procedures.

Multiple language options can be customized. This feature is valuable for international installations with local operators, technical teams, and management personnel who may use different working languages. Clear interfaces can reduce misunderstandings during routine operation, recipe selection, alarm response, cleaning, and maintenance.

Data management is another important function of an intelligent system. Freeze-drying recipes can include multiple stages, such as freezing, pressure reduction, primary drying, secondary drying, and controlled completion. Recording the actual process profile allows manufacturers to compare batches, investigate deviations, verify product quality, and improve future recipes.

Central control can also support plant-level coordination. When multiple machines share vacuum or refrigeration resources, the control system can help organize operation in a way that avoids conflicting demands. For example, equipment can be scheduled according to loading status, defrosting needs, refrigeration capacity, and expected unloading time.

11. Application Areas

The BLK-FD-200 is suitable for a broad range of materials. Its large capacity and flexible configuration make it appropriate for companies that process multiple product categories or plan to expand their portfolio over time.

Food Products

Freeze-dried foods can include fruit pieces, vegetable products, instant meals, ingredients, snacks, sauces, and prepared food components. The process can preserve much of the original flavor and structure while creating a lightweight product with a long shelf life when properly packaged.

The BLK-FD-200 can support high-volume food production where consistent tray loading and uniform heat transfer are required. Products with different densities may have different processing capacities. Based on a tray area of approximately 200 square meters and a loading height of 35 millimeters, the material capacity may vary according to density and product category.

Fruits and Vegetables

Fruits and vegetables contain water, sugars, acids, fibers, pigments, and delicate cellular structures. Excessive heat can cause browning, shrinkage, flavor loss, or changes in texture. Freeze drying can help maintain a porous structure that allows rapid rehydration.

Suitable materials may include strawberries, mangoes, bananas, apples, berries, peas, corn, mushrooms, leafy vegetables, vegetable pieces, and mixed fruit products. The correct process depends on piece size, pretreatment, sugar concentration, freezing rate, target moisture, and final packaging requirements.

Medicinal Materials and Health Supplements

Medicinal herbs, botanical extracts, nutritional ingredients, probiotics, and health supplements may contain heat-sensitive compounds. Freeze drying can be used to remove water while helping preserve appearance, aroma, and certain functional properties.

In these applications, manufacturers must establish validated procedures for cleaning, traceability, temperature control, batch documentation, and contamination prevention. The BLK-FD-200 provides a large production platform, but the final process must be developed according to the specific material and applicable regulatory requirements.

Biological Products

Biological materials may require carefully controlled freezing and drying conditions. The acceptable temperature and pressure range can be narrow, and the product may be sensitive to oxidation, excessive heating, or prolonged exposure to moisture. Precise control and data recording are therefore essential.

Chemical Materials

Some chemical materials, catalysts, intermediates, and specialty formulations can benefit from vacuum freeze drying when conventional drying causes decomposition, agglomeration, or loss of physical performance. The chamber, seals, materials of construction, and safety configuration must be selected according to the chemical characteristics of the product.

Instant Coffee and Beverage Ingredients

Freeze-dried instant coffee is a major industrial application because the process can help retain aromatic compounds and create a porous granule that dissolves efficiently. A large freeze dryer may be integrated into a complete instant coffee production line that includes extraction, concentration, freezing, granulation, freeze drying, screening, packaging, and quality inspection.

When used for coffee or beverage ingredients, the equipment must be configured around the liquid concentration, feed temperature, tray filling method, freezing profile, aroma-retention strategy, and desired granule structure. The 4,000-liter liquid loading capacity provides a reference for large liquid-processing operations, while the final production rate depends on the entire upstream and downstream system.

12. Product Capacity and Process Planning

Capacity planning for a freeze dryer should begin with the product rather than with the chamber size alone. Two products occupying the same tray area may have very different drying times and mass capacities because of differences in density, solids content, particle size, viscosity, and moisture content.

The BLK-FD-200 material-processing model uses a tray area of approximately 200 square meters and a loading height of 35 millimeters as a reference. The available information indicates approximate ranges of 3,000 to 4,000 kilograms for a food category, 2,500 to 3,000 kilograms for a solution category, and 2,000 to 2,500 kilograms for fruits and vegetables. These figures are subject to adjustment according to material density and actual loading conditions.

The standard loading capacity listed for the equipment is 2,000 kilograms. Differences between general material estimates and standard loading specifications demonstrate why a technical assessment is necessary before purchase. The final capacity may be affected by tray dimensions, fill height, product formulation, allowable load per trolley, freezing time, drying time, condenser capacity, and the selected safety margin.

A reliable capacity study should evaluate the complete production cycle. Important factors include raw-material preparation, filling, pre-freezing, trolley transfer, chamber loading, primary drying, secondary drying, defrosting, unloading, cleaning, inspection, and packaging. If any stage becomes a bottleneck, increasing chamber capacity alone may not increase annual output.

Engineering support is therefore an important part of equipment selection. The manufacturer’s integrated team can help customers review production targets, process characteristics, available utilities, plant layout, automation requirements, and future expansion plans. This helps ensure that the final equipment configuration is aligned with the intended application.

13. Advantages Compared with Conventional Industrial Freeze Dryers

The BLK-FD-200 is differentiated from conventional large freeze dryers through the combination of capacity, uniformity, energy management, flexible configuration, and intelligent production design.

Large Working Area

A freeze-drying area of 202.2 square meters allows industrial users to process substantially larger batches than would be possible with medium-sized or experimental units. This can reduce the number of batches required to meet production targets and may simplify the management of high-volume orders.

More Consistent Shelf Conditions

The one-piece radiation plates and heat-transfer-fluid circuit are designed to keep inter-shelf temperature deviation within ±1°C. This supports more consistent product treatment and can reduce the risk that some trays finish too early while others remain under-dried.

Energy-Recovery Architecture

Residual cold recovery, heat recovery, heat-pump technology, economizer functions, and variable-frequency drives work together to reduce energy waste. Conventional equipment may release usable cold or heat, operate pumps at fixed capacity, or run compressors under unnecessarily high loads. Recovering energy and matching output to demand can lower operating costs.

Flexible Utility and Layout Choices

Electric or steam heating can be selected based on the factory’s requirements. External or built-in refrigeration configurations can be evaluated according to site conditions. Chamber and unit positions can be customized, helping the equipment fit into facilities with different layouts.

Parallel Production Capability

Multiple units can operate in coordination through staggered loading, drying, unloading, and defrosting. This approach can improve equipment utilization and reduce production interruptions compared with a single-machine operation in which every downstream activity must wait for the same chamber.

Comprehensive Testing

Detailed inspection procedures and extended pressure-holding tests reduce the risk of commissioning problems. This is a significant advantage for customers who require reliable operation after installation and who cannot afford long periods of troubleshooting at the production site.

Integrated Technical Support

The manufacturer provides support across research and development, engineering, sales, installation, commissioning, and after-sales service. An integrated team can address process, mechanical, electrical, refrigeration, automation, and maintenance issues through a more coordinated project approach.

14. Manufacturing and Engineering Strengths

Jiangsu Bolaike Freezing Technology Development Co., Ltd. was established in 2014 in Changzhou, Jiangsu, China. Its origins can be traced to Changzhou Zhongleng Refrigeration Equipment Co., Ltd., which entered the refrigeration industry in 2003 and began developing vacuum freeze-drying technology at an early stage.

The company focuses on the research, development, manufacturing, and sales of vacuum freeze-drying and refrigeration equipment. Its product and engineering experience covers food, fruits and vegetables, medicinal herbs, health supplements, biological products, chemical materials, and cold-storage applications.

The company operates an integrated professional team that covers research and development, engineering, sales, installation, commissioning, and after-sales support. This structure is valuable for complex industrial projects because the customer’s needs often continue changing after the initial equipment order. Process trials may lead to recipe modifications, installation conditions may require layout adjustments, and operators may need additional training after startup.

Long-term partnerships have been established with universities and research institutions, including the Chinese Academy of Agricultural Sciences, the Jiangsu Academy of Agricultural Sciences, and Jiangnan University. Cooperation with research organizations can support product development, process research, material testing, and the evaluation of new applications.

The company has obtained more than 100 national invention and utility model patents. These patents cover technologies associated with energy recovery, heat management, vacuum freeze drying, refrigeration, and equipment design. Patented technology alone does not guarantee the result of every application, but it indicates a sustained focus on engineering development and intellectual property.

The company has also established a modern manufacturing base covering approximately 24,000 square meters. A dedicated manufacturing base provides space for fabrication, assembly, inspection, testing, project coordination, and equipment preparation before shipment. For large systems, factory space is especially important because the equipment may need to be assembled or partially tested in a configuration that reflects the customer’s final installation.

According to the provided company information, Bolaike equipment has been exported to more than 30 countries and regions. International experience can help a manufacturer understand different electrical standards, language requirements, installation practices, certification expectations, shipping conditions, and customer service needs.

15. International Standards and Safety Considerations

The BLK-FD-200 is designed according to international specifications. The provided information identifies EU CE certification and compliance with mechanical health and safety standards, as well as China Quality Management System certification.

International standards are important because an industrial freeze dryer combines pressure systems, refrigeration circuits, electrical controls, moving components, heating systems, and low-temperature surfaces. A suitable design must consider operator protection, emergency stopping, electrical safety, pressure integrity, refrigerant handling, guarding, access, cleaning, and maintenance.

CE marking and related conformity procedures provide an important framework for equipment intended for international markets. However, customers should also confirm the specific requirements of their destination country, facility, industry, and product category. Pharmaceutical, food, biological, and chemical operations may each have additional regulatory expectations relating to validation, hygienic design, documentation, traceability, and process control.

Safety does not end when the machine leaves the factory. Operators should receive training in loading, unloading, vacuum operation, refrigeration status, defrosting, alarm response, cleaning, and lockout procedures. Maintenance teams should understand pressure testing, refrigerant safety, electrical isolation, pump servicing, seal replacement, and calibration requirements.

16. Installation, Commissioning, and After-Sales Service

Large-scale freeze-dryer installation is a project rather than a simple delivery. The customer must prepare an appropriate foundation, access route, utilities, drainage, ventilation, refrigeration space, electrical supply, steam or heating connections, control-system network, and production-area layout.

Before shipment, the equipment configuration should be reviewed against the site’s architectural drawings and utility conditions. Important details include chamber orientation, trolley access, door clearance, equipment-room dimensions, pipe routes, service clearance, lifting capacity, floor loading, and the location of control cabinets.

Commissioning normally includes mechanical inspection, electrical connection, refrigeration testing, vacuum testing, control-system verification, sensor calibration, empty-chamber testing, and loaded process trials. The first product trials should be conducted using documented recipes and clearly defined acceptance criteria.

After commissioning, operators should be trained to identify normal and abnormal equipment behavior. They should understand the relationship between shelf temperature, chamber pressure, product temperature, condenser temperature, and drying progress. A well-trained team can react more quickly to deviations and reduce the risk of product loss.

After-sales service should include spare-parts support, troubleshooting, maintenance guidance, software or control-system assistance, and process consultation when required. Because the BLK-FD-200 is a complex system, reliable technical communication is essential throughout its operating life.

17. Selecting the Right Configuration

Although the BLK-FD-200 is a defined equipment model, the final system should be customized according to the customer’s production requirements. A technical consultation should address the following points:

First, the product should be characterized. The manufacturer needs to understand whether the material is liquid, paste, solid, granular, sliced, powdered, or packaged in containers. Moisture content, solids concentration, viscosity, thermal sensitivity, and target residual moisture all influence the process.

Second, the required batch size and annual output should be established. A customer producing a few large batches per week may require a different operating schedule from a customer running several shifts every day. The number of units, trolley arrangement, cold-storage capacity, and defrosting method should be designed around the production calendar.

Third, the heating method must be selected. Electric heating may provide convenient control, while steam heating may integrate more efficiently with an existing utility system. The customer should consider energy availability, operating cost, maintenance, local infrastructure, and environmental objectives.

Fourth, the refrigeration and vacuum systems should be matched to the vapor load and required cycle time. Pump selection should consider ultimate vacuum, pumping speed, product characteristics, oil management, water tolerance, maintenance, and the operating environment.

Fifth, automation requirements should be defined. Some customers may require recipe management, remote monitoring, automatic trolley handling, production data recording, centralized control of multiple units, or integration with a factory management system.

Finally, the chamber and equipment layout should be reviewed. Customization at the design stage is generally more effective than attempting to solve access, utility, or workflow problems after installation.

18. Operational Best Practices

To achieve reliable performance, operators should load trays consistently. Fill thickness should remain within the validated range, and the material should be distributed evenly to avoid local differences in drying resistance. Overloading one area or creating large variations between trays can reduce uniformity and extend the cycle.

Freezing should be controlled carefully. The freezing profile influences ice crystal structure, and ice crystal structure affects the resistance to vapor movement during primary drying. The best freezing method depends on the product and may involve controlled temperature reduction, a hold period, or other validated steps.

Vacuum should be established according to the process recipe rather than reduced as quickly as possible in every situation. The chamber pressure, shelf temperature, and product temperature must remain within the safe operating range for the product. Excessively aggressive conditions can cause collapse or other quality problems.

Condenser and refrigeration performance should be monitored throughout the cycle. Ice accumulation, abnormal temperature changes, refrigerant problems, or reduced cooling capacity can affect vapor capture. Preventive maintenance helps identify these conditions before they cause production interruptions.

Cleaning and inspection should be performed according to the material and factory hygiene requirements. Door seals, shelves, trolleys, valves, sensors, and chamber surfaces should be checked regularly. Any residue or moisture should be removed using procedures compatible with the stainless-steel construction and the customer’s sanitation standards.

Process data should be reviewed after each batch. Comparing pressure, temperature, cycle time, energy use, and final product moisture can reveal gradual changes in equipment performance or raw-material behavior. Data-driven review can support continuous improvement and help maintain consistent quality as production volume increases.

19. Sustainability and Long-Term Value

Energy efficiency contributes directly to sustainability. Lower compressor load, optimized pump operation, heat recovery, and shortened cycle times can reduce energy consumption per batch and per kilogram of finished product. These improvements may also reduce operating costs and support corporate environmental targets.

Long service life is another part of sustainability. Durable 304 stainless-steel construction, pressure testing, structured inspection, and maintainable equipment design can reduce premature replacement and minimize production disruption. A machine that remains reliable over many years can provide better total value than a lower-cost system with frequent downtime.

Flexible configuration extends the useful life of the equipment. Electric or steam heating options, external or built-in refrigeration, manual or automatic trolley handling, multilingual controls, and parallel operation allow the system to evolve as the factory develops. Customers may begin with one unit and later add connected machines or integrate additional automation.

For food, agricultural, and biological products, freeze drying can also help reduce losses caused by spoilage. By extending shelf life and reducing product weight, freeze-dried materials may be stored and transported more efficiently. The environmental result depends on the complete supply chain, including energy source, packaging, transportation, and storage conditions.

20. Why the BLK-FD-200 Is Suitable for Industrial Expansion

The BLK-FD-200 is suited to industrial users that have outgrown experimental or medium-sized freeze dryers and need a more capable production system. Its large freeze-drying area provides the physical capacity required for larger batches, while the flexible design supports different products and factory layouts.

Its primary competitive strength is the combination of capacity and process control. A large chamber without uniform temperature transfer may create inconsistent product quality. A high-capacity machine without efficient defrosting may experience long gaps between batches. A powerful refrigeration system without intelligent control may consume excessive energy. The BLK-FD-200 is designed to address these issues as interconnected engineering challenges.

The equipment’s energy-saving systems, variable-frequency components, parallel operation, isolation-valve option, and central control platform are particularly valuable for factories focused on total cost of ownership. These functions can help reduce energy use, improve production scheduling, limit downtime, and provide better visibility into machine performance.

The manufacturing and service capabilities of Jiangsu Bolaike Freezing Technology Development Co., Ltd. further support the product. Research partnerships, patented technologies, an established refrigeration background, a modern manufacturing base, international project experience, and integrated after-sales support provide a foundation for complex equipment projects.

For customers considering a large-scale freeze dryer, the most important next step is a technical evaluation based on the intended material and production target. The BLK-FD-200 provides a strong industrial platform, but the final result depends on correct process development, suitable configuration, proper installation, trained operators, and disciplined maintenance.

Questions and Answers

Q1. What is the freeze-drying area of the BLK-FD-200?

The BLK-FD-200 has a freeze-drying area of 202.2 square meters. This large working area is intended for industrial batch production and can accommodate multiple sets of material trolleys.

Q2. What is the standard loading capacity?

The standard loading capacity is 2,000 kilograms. Actual capacity depends on material density, fill thickness, moisture content, tray arrangement, and the validated process recipe.

Q3. How much liquid can the equipment load?

The listed liquid loading capacity is 4,000 liters. The usable capacity for a particular product depends on the liquid’s concentration, viscosity, filling method, tray depth, and freezing characteristics.

Q4. What vacuum level can the BLK-FD-200 reach?

The ultimate vacuum level is no more than 10 Pa. The actual operating pressure used during production should be determined through process development and product validation.

Q5. How does the equipment improve temperature uniformity?

The BLK-FD-200 uses one-piece radiation plates without welded joints and a specially designed heat-transfer-fluid circuit. The inter-shelf temperature deviation is maintained within ±1°C under specified operating conditions.

Q6. Can the equipment use steam heating?

Yes. Electric or steam heating can be selected according to the customer’s production requirements, available utilities, energy costs, and facility design.

Q7. Can multiple BLK-FD-200 units operate together?

Yes. The equipment supports parallel operation of multiple units. Coordinated loading, drying, unloading, and defrosting can help improve utilization and shorten production intervals.

Q8. What is the purpose of the intermediate isolation valve?

The optional intermediate isolation valve separates the drying chamber from the cold trap during suitable operating stages. It helps control vapor flow and vacuum conditions, reduces the risk of vapor backflow, and can shorten batch intervals.

Q9. What vacuum pump combinations are available?

Possible combinations include screw pumps with Roots pump sets, rotary vane pumps with Roots pump sets, and water ring pumps with Roots pump sets. The most appropriate combination depends on the product, required pumping performance, maintenance preferences, and facility conditions.

Q10. Can the refrigeration system be customized?

Yes. The system can be configured with external or built-in refrigeration. Variable-frequency refrigeration units can also be used to adjust cooling output according to process demand and the operating status of multiple machines.

Q11. What materials can be processed?

The BLK-FD-200 can be used for food, fruits and vegetables, medicinal materials, health supplements, biological products, chemical materials, instant coffee ingredients, and other suitable products. Each material requires its own process development and validation.

Q12. Is the chamber made from stainless steel?

Yes. The chamber is constructed from 8-millimeter-thick 304 stainless steel, which provides structural stability, corrosion resistance, cleanability, and long service life when properly maintained.

Q13. What inspection procedures are performed before delivery?

The equipment is manufactured using five core inspection workflows and 58 inspection procedures. The refrigeration system undergoes more than 48 hours of pressure-holding testing, and the complete machine undergoes high-pressure and low-pressure testing.

Q14. Does the equipment support remote monitoring?

Yes. Remote monitoring through a mobile application is supported. Multiple language options can also be customized for international installations and multilingual operating teams.

Q15. How should customers confirm the correct configuration?

Customers should provide information about the product, moisture content, batch size, annual output, desired cycle time, heating utilities, refrigeration conditions, factory layout, automation requirements, and applicable standards. A technical assessment can then determine the appropriate configuration.

Conclusion

The BLK-FD-200 is a high-capacity industrial freeze dryer developed for manufacturers that require dependable production, controlled processing, and long-term operating value. Its 202.2-square-meter freeze-drying area, 2,000-kilogram standard loading capacity, 4,000-liter liquid capacity, and ultimate vacuum level of no more than 10 Pa provide a strong foundation for large-scale production.

Its advantages extend beyond chamber size. One-piece radiation plates, ±1°C inter-shelf temperature uniformity, flexible heating options, modular vacuum and refrigeration systems, energy recovery, heat-pump technology, variable-frequency control, parallel operation, and intelligent central monitoring are designed to improve overall production performance.

The product is supported by Jiangsu Bolaike Freezing Technology Development Co., Ltd.’s experience in refrigeration and vacuum freeze-drying technology, research partnerships, patent portfolio, modern manufacturing base, international project experience, and integrated engineering and service team. Through careful configuration, installation, process validation, and maintenance, the BLK-FD-200 can serve as a reliable foundation for expanding freeze-dried food, beverage, agricultural, pharmaceutical, biological, and chemical production.

References

1. Jiangsu Bolaike Freezing Technology Development Co., Ltd. Product Technical Information for BLK-FD-200 Large-Scale Freeze Drying Equipment.

2. Jiangsu Bolaike Freezing Technology Development Co., Ltd. Company Profile and Manufacturing Capability Information.

3. General Principles of Vacuum Freeze Drying and Lyophilization Process Engineering.

4. Industrial Refrigeration System Design and Energy-Recovery Engineering Practices.

5. Stainless-Steel Equipment Design Principles for Food, Pharmaceutical, and Hygienic Processing Applications.

6. Freeze-Drying Process Development, Product Temperature Control, and Moisture-Removal Technology.

7. Industrial Vacuum Pump Selection, Roots Pump Technology, and Variable-Frequency Pump Control.

8. International Mechanical Safety, Pressure-System Testing, and Industrial Equipment Quality-Management Practices.

Product: BLK-FD-200
