BLK-FD-5 Bench-to-Industrial Freeze Dryer: A Practical Platform for Efficient, Uniform, and Scalable Production

Freeze-drying is one of the most effective preservation technologies for products that are sensitive to heat, oxidation, moisture, and structural damage. By freezing a material and removing ice through sublimation under vacuum, the process can preserve flavor, aroma, color, shape, porosity, nutritional value, and rehydration performance. However, achieving consistent results at a commercial scale requires more than a vacuum chamber and refrigeration system. A successful freeze dryer must provide reliable freezing, stable vacuum conditions, controlled shelf temperatures, efficient heat transfer, convenient loading, practical workshop integration, and dependable long-term operation.

The BLK-FD-5 is a medium-sized freeze-drying system developed for organizations that need a production-capable machine without immediately investing in a very large industrial installation. With a 5-square-meter freeze-drying area, a standard loading capacity of 50 kilograms, and a liquid loading capacity of 100 liters, the system provides a bridge between laboratory experimentation and continuous industrial manufacturing. It is suitable for food processors, ingredient manufacturers, nutritional-product companies, herbal-product producers, research institutions, and other users that need repeatable freeze-drying performance with room for business expansion.

Designed as a bench-to-industrial freeze dryer, the BLK-FD-5 supports a wide range of production requirements. It can be used to develop and validate recipes, produce commercial batches, process premium food products, and establish operating parameters before scaling to larger equipment. Its integrated pre-freezing and drying configuration, rectangular chamber, residual cold recovery system, and patented double-layer radiation plates are central to its performance profile.

Manufactured by Jiangsu BoLaiKe refrigeration science and technology development Co., Ltd., the equipment reflects the company’s experience in refrigeration, vacuum freeze-drying, engineering integration, installation, commissioning, and after-sales service. The company has operated in the refrigeration sector since 2003 and was established in its current form in 2014. Its manufacturing and engineering capabilities are supported by research cooperation, a modern manufacturing base, and more than 100 national invention and utility model patents.

BLK-FD-5

Understanding the Role of a Medium-Sized Freeze Dryer

Freeze-drying equipment is often divided into laboratory, pilot, medium-sized, and large-scale systems. Laboratory machines are useful for small samples and early-stage research, but their capacity may be insufficient for commercial orders. Large industrial systems offer high throughput but require significant capital investment, floor space, utilities, installation planning, and production volume. A medium-sized system occupies the important space between these two extremes.

The BLK-FD-5 is intended for users that require more than a laboratory appliance but do not yet need a large production line. Its 5-square-meter freeze-drying area allows a business to process meaningful commercial quantities while maintaining a manageable equipment footprint. The system can support product development, market testing, regional production, contract processing, and specialized manufacturing.

This scale is particularly valuable when the product portfolio contains several different materials. A company may process fruits, vegetables, instant food ingredients, medicinal herbs, health supplements, or biological materials in different batches. Instead of committing immediately to a high-capacity line designed for one product, the operator can use a flexible medium-sized freeze dryer to develop multiple products and assess demand.

The system can also serve as a production stepping stone. A business may begin with small commercial volumes, establish customer demand, standardize recipes, and then add further equipment as orders increase. This staged approach can lower investment risk and help the company learn how freezing rate, shelf temperature, vacuum level, product thickness, loading density, and drying time affect the final product.

Production Flexibility

One of the principal advantages of the BLK-FD-5 is its flexibility across applications. Freeze-dried foods often include fruit pieces, vegetable products, meat ingredients, seafood, dairy materials, beverages, instant meals, and specialty snacks. The same fundamental process can also be adapted for herbal extracts, nutritional products, biological materials, and selected chemical substances.

Although each product requires its own formulation and process parameters, the machine platform can support a variety of batch profiles. This is important for companies that want to diversify instead of relying on one product category. A flexible system can be used for seasonal products, premium small-batch items, research samples, and larger routine orders.

The 100-liter liquid loading capacity is also useful for products prepared as liquid formulations, slurries, extracts, or concentrated mixtures. The actual usable capacity depends on product characteristics, tray configuration, layer thickness, solids content, and the required drying cycle. Nevertheless, the stated capacity provides a practical reference for production planning and system selection.

Key Technical Specifications

The following specifications define the principal capacity and installation requirements of the BLK-FD-5.

Equipment specifications should always be evaluated together rather than individually. A large freeze-drying area is useful only when the refrigeration, vacuum, heat-transfer, control, and condensate-handling systems can support the intended cycle. Likewise, a low ultimate vacuum figure is meaningful when the chamber maintains stable conditions during actual product loading and drying. The BLK-FD-5 is designed as an integrated system, allowing its principal functions to work together rather than operating as disconnected components.

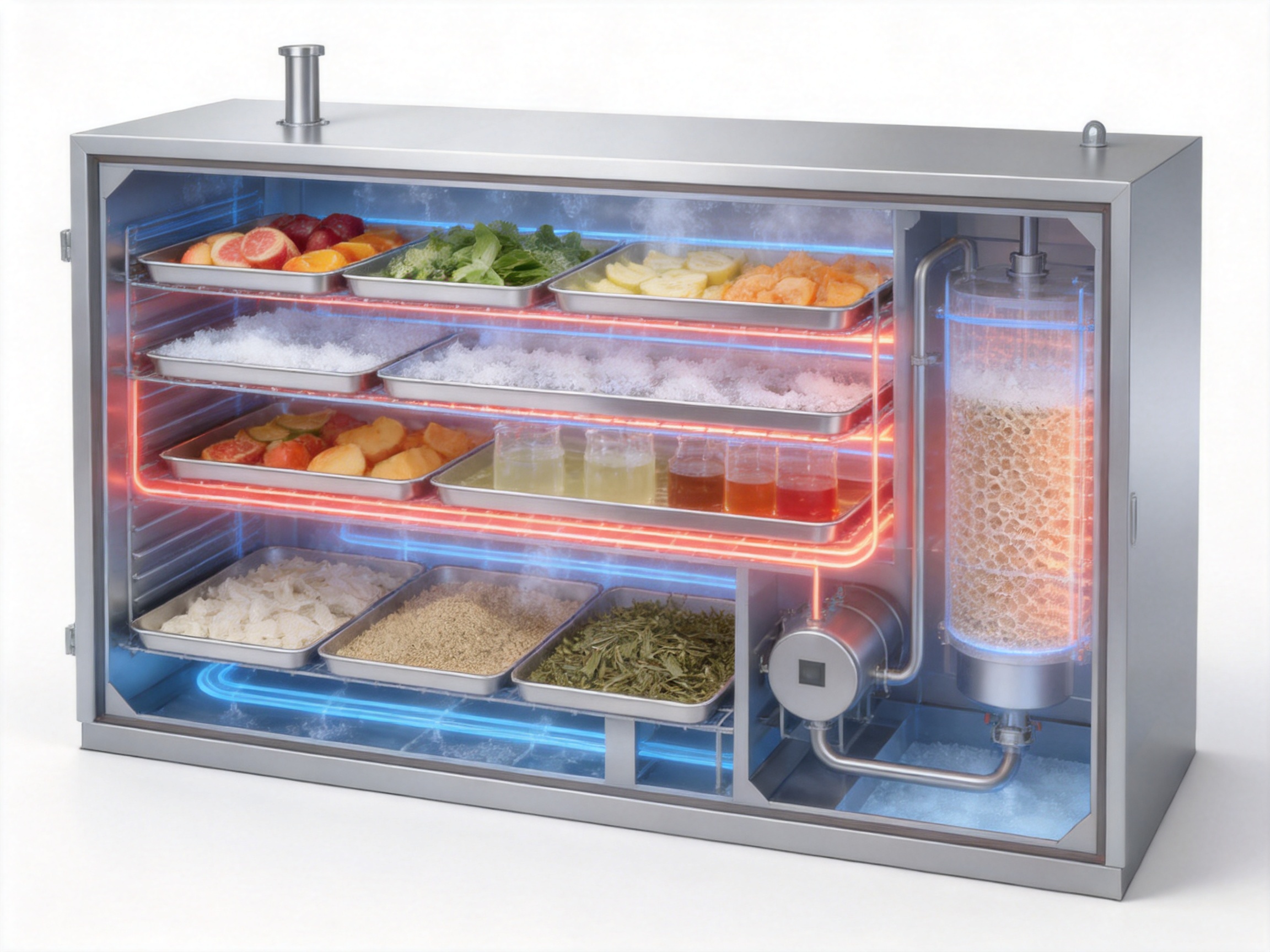

Integrated Pre-Freezing and Drying Design

A major feature of the BLK-FD-5 is the integration of pre-freezing and drying within one equipment design. In a separated production arrangement, product may need to be frozen in one machine and then transferred to another chamber for vacuum drying. That approach can introduce additional handling, longer transfer times, increased labor, and greater exposure to temperature changes or environmental moisture.

By incorporating pre-freezing and drying into one system, the BLK-FD-5 can simplify the production sequence. The product can be prepared, loaded, frozen, and dried in a coordinated process. Reducing transfers can help improve workflow efficiency and limit unnecessary handling. It can also make process validation easier because the freezing and drying stages are managed within a unified equipment platform.

Pre-freezing is not merely a preliminary step. The size and distribution of ice crystals formed during freezing influence the pore structure created during sublimation. Faster freezing generally produces smaller ice crystals, while slower freezing can produce larger crystals. The best freezing profile depends on the product, its solids content, its viscosity, and the desired texture after rehydration. An integrated machine gives the operator a practical environment for developing and repeating these conditions.

For food products, suitable pre-freezing can help maintain the intended shape and reduce collapse during drying. For extracts and formulated materials, freezing conditions can influence cake structure, dissolution characteristics, and residual moisture distribution. A controlled sequence from freezing to primary drying and secondary drying is therefore important for both product quality and production repeatability.

Reduced Product Transfer

Every transfer between pieces of equipment creates a possible point of variation. Product may warm during movement, absorb moisture from the surrounding air, become damaged through handling, or experience a delay that affects the cycle. Integrated pre-freezing and drying can reduce these risks by minimizing the number of times the product must be moved.

This arrangement may be especially useful for products that are fragile, sticky, highly porous, or sensitive to temperature changes. It can also contribute to a cleaner and more organized workshop layout. Fewer independent machines may simplify material flow and reduce the space required for intermediate staging.

Rectangular Chamber for Efficient Workshop Layout

The BLK-FD-5 uses a rectangular chamber structure. This design provides practical advantages in facility planning and space utilization. Rectangular equipment can often be arranged more efficiently against walls or alongside other production units than cylindrical or irregularly shaped systems. For a workshop with defined material routes, service corridors, and access requirements, this can make a meaningful difference.

The overall dimensions of the system are 4,500 × 2,200 × 2,700 millimeters. These dimensions should be considered together with door widths, ceiling height, lifting capacity, maintenance clearance, electrical connections, refrigeration requirements, drainage, vacuum-system access, and product-loading routes. Because the equipment weighs approximately 5.7 metric tons, the floor and foundation must be assessed before installation.

Efficient use of space has both operational and financial value. A machine that fits logically into a workshop can reduce unnecessary movement of raw materials and finished products. It can also help separate incoming materials, processing areas, packaging zones, and finished-goods storage. A rational layout may support better hygiene management, clearer operator movement, and simpler maintenance access.

Compared with equipment that requires extensive surrounding space for separate pre-freezing units, transfer stations, or auxiliary systems, the integrated format of the BLK-FD-5 may offer a more compact workflow. The actual space advantage depends on the complete installation plan, but the rectangular chamber is clearly intended to support practical industrial deployment.

Residual Cold Recovery and Energy Efficiency

Energy consumption is a major consideration in freeze-drying because the process requires refrigeration, vacuum generation, heat transfer, and prolonged cycle operation. The BLK-FD-5 is standard-equipped with a residual cold recovery system. According to the supplied product information, this design can reduce energy consumption by approximately 10% to 15% compared with traditional equipment.

Residual cold recovery means that useful cooling capacity remaining in the system is recovered or reused instead of being discarded. The exact mechanism and savings achieved depend on operating conditions, product load, ambient temperature, cycle design, and equipment utilization. However, the principle is important: efficient freeze-drying is not only about reaching a target temperature, but also about managing energy throughout the complete production cycle.

Energy efficiency can improve the operating economics of a freeze-drying facility. Lower energy use may reduce the cost per batch, support more competitive product pricing, and improve the environmental profile of production. For businesses processing high-value ingredients, even a moderate reduction in energy consumption can become significant over many cycles per year.

The energy-saving design also aligns with the broader direction of modern food and pharmaceutical equipment manufacturing. Producers increasingly seek machinery that combines reliable output with lower utility demand, reduced waste, and more responsible resource use. The residual cold recovery system supports this objective while remaining integrated into the core refrigeration and drying architecture.

Energy Management in Real Production

Actual energy performance depends on how the equipment is operated. Product loading, layer thickness, initial temperature, solids concentration, condenser conditions, vacuum stability, and cycle duration all affect energy consumption. Operators can improve results by standardizing recipes, avoiding excessive underloading, using appropriate loading densities, maintaining heat-transfer surfaces, and following recommended maintenance schedules.

The BLK-FD-5 provides an equipment foundation for efficient operation, but process discipline remains important. A machine designed for energy recovery will perform best when the production team uses consistent batch procedures and monitors the relationship between product characteristics and cycle parameters.

Patented Double-Layer Radiation Plates

Uniform shelf temperature is essential to freeze-drying quality. If one region of the shelf is significantly warmer or colder than another, product may dry at different rates. Some trays may reach the desired endpoint early while others retain excess moisture. In sensitive products, temperature variation can contribute to collapse, shrinkage, incomplete drying, color differences, or inconsistent rehydration.

The BLK-FD-5 is equipped with patented double-layer radiation plates featuring independent hot and cold circuits. This configuration is designed to improve the uniformity of shelf temperatures. Independent circuits allow the heating and cooling functions to be managed separately, providing a more controlled thermal environment during freezing, primary drying, and secondary drying.

The double-layer structure can also support more consistent thermal distribution across the working area. During freezing, the shelves must remove heat from the product efficiently. During drying, controlled heat must be supplied to drive sublimation without causing product collapse. By separating the hot and cold circuits, the equipment can better coordinate these different thermal requirements.

Uniform radiation plates are especially valuable when the chamber contains multiple trays or when the product is distributed across a broad surface area. A more even thermal profile can reduce batch-to-batch variation and help manufacturers establish more predictable recipes. This is a competitive advantage over simpler shelf designs that may provide less control over temperature distribution.

Why Temperature Uniformity Matters

Freeze-drying is a carefully balanced process. During primary drying, the product must receive enough heat to sustain sublimation, but the product temperature must remain below the critical temperature at which the frozen structure may collapse. During secondary drying, additional heat is often used to remove bound moisture. If heat delivery is uneven, the process window may be narrower and the risk of inconsistent results may increase.

Temperature uniformity also affects product appearance. In fruit and vegetable applications, a stable drying profile can help preserve shape and color. In powder or extract applications, it can promote consistent cake structure and moisture content. In nutritional and biological applications, controlled thermal exposure can be important for protecting heat-sensitive components.

The independent hot and cold circuits of the BLK-FD-5 are therefore not simply a mechanical feature. They are part of a process-control strategy intended to support product quality, repeatability, and efficient cycle development.

Vacuum Performance and Sublimation Conditions

The BLK-FD-5 has an ultimate vacuum level of ≤10 Pa. A low-pressure environment is necessary for ice to transition directly from solid to vapor during sublimation. Vacuum performance influences the pressure conditions in the chamber, the behavior of water vapor, and the ability of the system to maintain a stable drying cycle.

Ultimate vacuum is normally evaluated under specified conditions and without a full product load. Actual operating pressure during production depends on the product’s water content, vapor generation rate, condenser performance, chamber sealing, vacuum-pump capacity, and process settings. For this reason, buyers should evaluate both the stated ultimate vacuum level and the equipment’s ability to maintain appropriate pressure throughout the complete cycle.

A stable vacuum system helps create predictable primary-drying conditions. It can also support efficient vapor movement from the product toward the cold-trapping or condensing system. Consistent vacuum performance is particularly important for products with high moisture content or complex structures, where uncontrolled pressure changes may prolong the drying cycle.

The chamber, valves, seals, vacuum lines, refrigeration system, and controls must work together to maintain the intended environment. The BLK-FD-5’s integrated design is intended to coordinate these functions within one production platform.

Applications Across Multiple Industries

Food and Fruit Processing

Freeze-drying is widely used for fruits and vegetables because it can preserve lightweight texture, natural appearance, flavor, and rehydration characteristics. Products such as strawberries, bananas, mangoes, apples, berries, vegetables, mushrooms, and mixed ingredients can be considered for processing after appropriate recipe development.

The BLK-FD-5’s 50-kilogram standard loading capacity provides a practical batch size for specialty food manufacturers and regional processors. It can support direct-to-consumer products, premium ingredients, snack products, emergency food components, and food-service materials. Because freeze-dried products are lightweight and shelf-stable when properly packaged, they can also be suitable for applications requiring reduced transportation weight or extended storage.

Instant Food and Beverage Ingredients

Freeze-drying can produce porous structures that rehydrate quickly. This makes the technology suitable for selected instant foods, beverage components, fruit powders, soup ingredients, coffee-related materials, and formulated food products. The actual suitability depends on formulation, solids content, particle size, viscosity, packaging, and desired rehydration time.

The liquid loading capacity of up to 100 liters offers a useful reference for businesses working with liquid formulations or concentrated ingredients. A development team can use the system to evaluate recipe concentration, tray depth, freezing behavior, drying time, and final moisture level before commercializing a product.

Medicinal Herbs and Health Supplements

Herbal materials and health supplements may contain volatile aromas, sensitive nutrients, and active components that are affected by heat. Freeze-drying provides a low-temperature preservation route that can help protect the original characteristics of selected materials. Careful validation is still required, especially when the product is subject to regulatory requirements, microbiological controls, or defined potency standards.

The BLK-FD-5 can support small and medium production campaigns for herbal extracts, botanical materials, nutritional ingredients, and specialty supplements. Its controlled freezing and drying environment may help manufacturers achieve more consistent moisture and structure than open-air or conventional hot-air methods.

Bioproducts and Research Materials

Freeze-drying is also used for certain biological products, laboratory materials, and research samples. These applications often require careful control of temperature, pressure, formulation, and residual moisture. The BLK-FD-5 can provide a larger platform for scale-up trials and controlled batch production compared with a small laboratory freeze dryer.

Research institutions can use the system to study cycle development, product behavior, shelf-temperature distribution, drying endpoints, and scale-up relationships. Its medium size allows researchers to examine commercial-scale factors while retaining flexibility for experimental work.

Chemical and Specialty Materials

Some chemical materials and specialty formulations benefit from solvent or moisture removal under low-temperature vacuum conditions. The suitability of the equipment depends on chemical compatibility, flammability, toxicity, solvent type, containment requirements, and applicable safety standards. Technical review should be completed before processing any non-aqueous or hazardous material.

Manufacturing Strengths Behind the Equipment

The performance of a freeze dryer is influenced not only by its published specifications but also by the manufacturing organization behind it. Jiangsu BoLaiKe refrigeration science and technology development Co., Ltd. combines refrigeration experience with freeze-drying research, equipment production, engineering services, and after-sales support.

The company originated from Changzhou Zhongleng Refrigeration Equipment Co., Ltd., which entered the refrigeration industry in 2003. This background provides a foundation in refrigeration-system design, thermal management, cold-chain engineering, and equipment integration. The company established Jiangsu BoLaiKe refrigeration science and technology development Co., Ltd. in 2014 and has since focused on vacuum freeze-drying and refrigeration equipment.

Its business covers research and development, manufacturing, sales, installation, commissioning, and after-sales service. This integrated structure can be valuable for customers purchasing complex equipment. Instead of treating machinery supply as a one-time transaction, the company can participate in equipment selection, site preparation, installation, process commissioning, operator training, and ongoing technical support.

Research and Technical Cooperation

The company has established long-term partnerships with universities and research institutions, including the Chinese Academy of Agricultural Sciences, the Jiangsu Academy of Agricultural Sciences, and Jiangnan University. Cooperation with research organizations can support the development of new drying technologies, improved thermal systems, process optimization, and application-specific solutions.

Such partnerships are particularly relevant to freeze-drying because the technology involves interactions among heat transfer, mass transfer, ice-crystal formation, vacuum behavior, formulation science, and product structure. Equipment manufacturers that understand these relationships are better positioned to develop machines that address real processing challenges.

The company reports more than 100 national invention and utility model patents. While patent quantity alone does not determine the suitability of a machine, the company’s patent portfolio indicates sustained attention to product development and engineering innovation. The patented double-layer radiation plate used in the BLK-FD-5 is one example of this development approach.

Modern Manufacturing Base

Bolaike has moved into a modern manufacturing base covering approximately 24,000 square meters. A dedicated manufacturing site can support organized fabrication, assembly, testing, quality inspection, storage, and project coordination. For large refrigeration and freeze-drying systems, production capability is important because the equipment contains multiple interconnected subsystems, including pressure vessels, refrigeration components, vacuum equipment, shelving, controls, valves, piping, insulation, and safety devices.

Manufacturing quality depends on accurate fabrication and careful assembly. Chamber sealing surfaces must be properly produced. Shelves and radiation plates must be installed with appropriate alignment. Refrigeration and vacuum circuits must be checked for leaks and performance. Electrical and control systems must be tested before shipment. A structured production base can help coordinate these stages and improve consistency between equipment projects.

Engineering and After-Sales Support

Freeze-drying equipment often requires more technical support than standard processing machinery. The customer may need assistance with site planning, utilities, transportation, lifting, installation, commissioning, recipe development, operator training, troubleshooting, and maintenance. An integrated engineering and service team can reduce the burden on the customer’s internal staff.

Bolaike provides engineering, installation, commissioning, and after-sales services as part of its professional team structure. This is an important strength for customers entering freeze-drying for the first time. The value of the machine is not limited to the stainless-steel chamber; it also includes the process knowledge and technical support needed to place the equipment into productive operation.

Advantages Compared with Conventional or Less Integrated Equipment

The BLK-FD-5 should be evaluated against the specific requirements of each project, but several design characteristics can provide advantages over simpler or less integrated freeze-drying systems.

Advantage One: A Bridge Between Research and Production

Small laboratory freeze dryers are useful for experiments, but the results obtained from a very small chamber may not translate directly to commercial production. The BLK-FD-5 offers a larger working area and meaningful batch capacity, enabling users to study loading patterns, shelf uniformity, vapor movement, and cycle duration under conditions closer to production.

At the same time, the system remains smaller and more flexible than a large industrial line. This makes it suitable for companies that are still developing their product portfolio or expanding in stages.

Advantage Two: Integrated Freezing and Drying

Separate freezing and drying equipment can increase handling requirements and create more opportunities for product temperature changes. The integrated design of the BLK-FD-5 can simplify the process flow, reduce transfers, and support a more consistent batch sequence.

Advantage Three: Improved Thermal Uniformity

The patented double-layer radiation plates with independent hot and cold circuits are designed to promote more uniform shelf temperatures. This can provide an advantage over basic shelf systems that may have less independent control of heating and cooling. More uniform shelves can support better batch consistency and a wider range of product-development work.

Advantage Four: Energy-Conscious Operation

The residual cold recovery system is standard equipment on the BLK-FD-5. The reported 10% to 15% energy reduction compared with traditional equipment can help reduce operating costs, although actual savings should be confirmed under the customer’s specific conditions. Energy-conscious design is increasingly important as manufacturers evaluate total cost of ownership rather than only the initial purchase price.

Advantage Five: Practical Workshop Integration

The rectangular chamber structure can improve the use of workshop floor space and simplify arrangement within a production area. The system is large and heavy, so professional installation planning remains necessary, but the form factor is intended to support efficient industrial layouts.

Advantage Six: Support from an Experienced Manufacturer

A freeze dryer is a process system rather than a standalone appliance. The manufacturer’s experience in refrigeration, vacuum drying, engineering, installation, commissioning, and customer service can directly affect the success of a project. Bolaike’s technology history, research partnerships, patent portfolio, manufacturing base, and international export experience provide a broader support foundation for the BLK-FD-5.

Process Development with the BLK-FD-5

Successful freeze-drying begins with product characterization. Before establishing a production cycle, the operator should understand the product’s water content, solids concentration, viscosity, freezing behavior, eutectic or collapse characteristics, particle size, layer thickness, and desired final moisture level. These factors determine how heat and mass transfer occur during the process.

The typical cycle includes loading, freezing, primary drying, and secondary drying. During freezing, the product is cooled until its water becomes ice. During primary drying, vacuum is applied and heat is supplied in a controlled manner so that ice sublimates. During secondary drying, additional moisture bound to the product matrix is removed. The final cycle must be verified through testing rather than copied from an unrelated product.

The BLK-FD-5 can support this development process by providing a production-relevant chamber area, controlled shelf temperatures, integrated pre-freezing, and a low-pressure operating environment. Operators can compare different tray depths, loading densities, freezing profiles, shelf-temperature programs, and pressure settings.

Loading Considerations

Product loading should be standardized as much as possible. Uneven layer thickness can create different drying times across a tray. Excessive loading may restrict vapor movement, while insufficient loading can result in inefficient use of energy and chamber capacity. Product pieces should be distributed consistently, and liquid products should be filled to a controlled depth.

The stated standard loading capacity is 50 kilograms, while the liquid loading capacity is 100 liters. These figures should not be interpreted as universal values for every product. The appropriate working load depends on the physical characteristics of the material and the desired process performance. Technical consultation and trial batches are recommended before finalizing a production recipe.

Endpoint and Quality Verification

A freeze-drying cycle should be evaluated using more than visual appearance. Important quality indicators may include residual moisture, water activity, rehydration time, color, texture, aroma, active-component retention, microbial condition, and package stability. For regulated products, additional analytical and validation requirements may apply.

Operators should also record cycle data, product load, initial temperature, shelf-temperature program, chamber pressure, drying time, and endpoint observations. Consistent documentation helps identify trends and supports repeatable production.

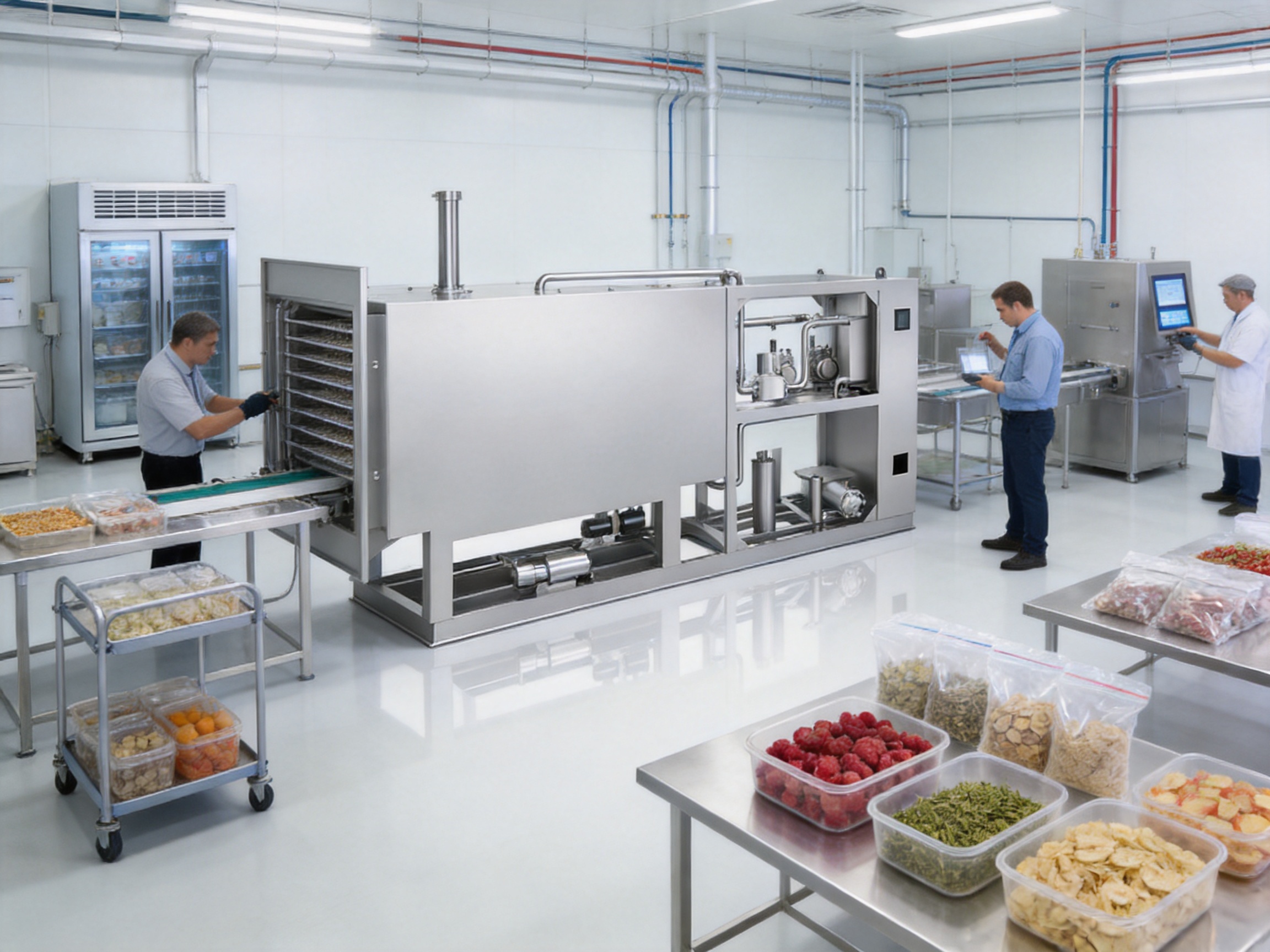

Installation and Facility Planning

Because the BLK-FD-5 weighs approximately 5.7 metric tons, the installation site must be evaluated carefully. The building should provide adequate floor loading capacity, access for delivery and positioning, sufficient ceiling clearance, and room for maintenance. The dimensions of 4,500 × 2,200 × 2,700 millimeters describe the main equipment envelope, but additional service space may be required.

Utility planning should cover electrical supply, cooling requirements, drainage, ventilation, vacuum-system access, and any required water or compressed-air connections. The precise requirements should be confirmed with the manufacturer during the project-design stage. A well-prepared site can shorten installation time and reduce commissioning difficulties.

Material flow is another important consideration. Raw materials should be able to move into the processing zone without crossing finished-product routes unnecessarily. Operators should have safe access to loading and unloading points. Packaging areas should be arranged to protect dry product from humidity immediately after unloading, because freeze-dried materials can rapidly absorb moisture when exposed to ambient air.

Hygiene and cleanability should also be considered, especially for food, supplement, and pharmaceutical-related applications. The facility design, cleaning procedures, contact materials, product handling, and packaging system should be reviewed according to the relevant local regulations and product category.

Maintenance and Long-Term Reliability

Regular maintenance is essential for preserving freeze-dryer performance. Vacuum seals, valves, pumps, refrigeration components, sensors, shelves, electrical controls, and heat-transfer surfaces should be inspected according to a documented maintenance schedule. Small leaks or degraded seals can increase cycle time and reduce vacuum stability. Dirty or poorly maintained heat-transfer surfaces can also affect thermal performance.

Operators should monitor changes in cycle duration, vacuum response, shelf-temperature uniformity, condenser performance, and final product moisture. A gradual change in any of these indicators may signal a maintenance requirement. Preventive maintenance is generally more cost-effective than waiting for a major failure during a production campaign.

Training is equally important. Personnel should understand the purpose of each process stage, the meaning of pressure and temperature readings, safe loading practices, emergency procedures, cleaning methods, and basic troubleshooting. The manufacturer’s installation, commissioning, and after-sales support can assist with this knowledge transfer.

Why Manufacturer Experience Matters in Equipment Selection

Purchasing a freeze dryer involves more than comparing chamber size and price. Buyers should consider the manufacturer’s ability to understand the application, design the equipment correctly, provide installation support, and respond to service requirements over the operating life of the machine.

A company with a background in refrigeration and freeze-drying can evaluate the interaction among cooling capacity, vacuum performance, shelf temperature, vapor load, and cycle time. Experience in different industries can also help the manufacturer recognize that a fruit product, herbal extract, biological formulation, and instant food ingredient may require very different process strategies.

Bolaike’s reported export activity across more than 30 countries and regions indicates experience serving customers with different operating environments and production expectations. International project experience may also support communication regarding shipping, documentation, installation coordination, and local technical requirements.

The company’s stated focus on green, environmentally friendly, intelligent, and reliable high-end freeze-drying solutions is consistent with the needs of modern processors. Customers increasingly seek equipment that reduces energy use, makes production more traceable, supports consistent quality, and can be integrated into broader manufacturing systems.

Commercial Value and Return on Investment Considerations

The commercial value of the BLK-FD-5 depends on product price, batch frequency, cycle duration, labor, energy costs, packaging, raw material yield, and market demand. Freeze-dried products often command premium prices because the process can preserve quality while reducing weight and improving shelf stability. However, the technology also requires significant capital and operating costs, so a realistic business model is essential.

The medium-sized capacity can support a gradual market-entry strategy. A company may begin by producing several high-value products, test customer response, and improve its recipes before adding further capacity. This approach may be more manageable than installing a very large line before demand has been proven.

The residual cold recovery system may contribute to lower energy costs, while the integrated design may reduce labor associated with transfers. The rectangular configuration may also help limit the cost of facility expansion when compared with a layout requiring multiple independent process units. These benefits should be included in a total-cost-of-ownership analysis.

Buyers should request a complete technical and commercial evaluation based on their products. Important questions include expected batch size, daily operating hours, target cycle duration, annual production volume, required utilities, installation conditions, packaging method, process validation needs, and future expansion plans.

Frequently Asked Questions

What type of equipment is the BLK-FD-5?

The BLK-FD-5 is a medium-sized bench-to-industrial freeze dryer. It is designed to support pilot production, commercial batch processing, product development, and scale-up between laboratory equipment and large industrial systems.

What is the freeze-drying area?

The freeze-drying area is 5 square meters. The usable production area and actual product load will depend on tray configuration, product characteristics, layer thickness, and the selected process recipe.

How much product can the machine process?

The standard loading capacity is 50 kilograms, and the stated liquid loading capacity is 100 liters. The correct operating load should be determined according to the material being processed and the required drying performance.

Does the system include pre-freezing?

Yes. The BLK-FD-5 uses an integrated pre-freezing and drying design. This can reduce product transfers and simplify the overall workflow.

What vacuum level can the equipment reach?

The stated ultimate vacuum level is no more than 10 Pa. Actual production pressure depends on product load, vapor generation, condenser performance, chamber sealing, and operating conditions.

How does the residual cold recovery system help?

The residual cold recovery system reuses available cooling capacity within the process rather than allowing it to be wasted. The supplied information indicates an energy-consumption reduction of approximately 10% to 15% compared with traditional equipment, although actual savings depend on operating conditions.

What is the purpose of the double-layer radiation plates?

The patented double-layer radiation plates use independent hot and cold circuits. Their purpose is to promote more uniform shelf temperatures during freezing and drying, helping support consistent heat transfer and product quality.

Which industries can use the BLK-FD-5?

Potential applications include food, fruits and vegetables, medicinal herbs, health supplements, bioproducts, chemical materials, research materials, and selected instant food or beverage ingredients. Product suitability should be confirmed through technical testing.

Is the BLK-FD-5 suitable for a new freeze-drying business?

It can be suitable for a business that needs meaningful production capacity while retaining flexibility for product development and market expansion. Buyers should assess their expected volume, product range, facility conditions, utilities, staffing, and financial plan before selecting equipment.

What should be prepared before installation?

The buyer should prepare a suitable foundation, delivery access, lifting and positioning arrangements, utility connections, maintenance clearances, drainage or ventilation provisions, and an appropriate product-flow layout. The manufacturer should confirm detailed installation requirements for the specific project.

Does the manufacturer provide technical support?

Jiangsu BoLaiKe refrigeration science and technology development Co., Ltd. provides research and development, engineering, sales, installation, commissioning, and after-sales service. The scope of support for a specific order should be confirmed during quotation and contract discussions.

How can a buyer compare this machine with competing freeze dryers?

A meaningful comparison should include freeze-drying area, batch capacity, liquid capacity, temperature uniformity, vacuum stability, energy consumption, integrated freezing capability, chamber layout, automation, maintenance requirements, installation support, validation assistance, spare parts, and total cost of ownership. Purchase price alone does not represent the complete value of a freeze-drying system.

Conclusion

The BLK-FD-5 is designed for companies that need a practical transition from research-scale work to commercial production. Its 5-square-meter freeze-drying area, 50-kilogram standard loading capacity, 100-liter liquid loading capacity, integrated pre-freezing and drying design, rectangular chamber, residual cold recovery system, and patented double-layer radiation plates make it a well-rounded medium-sized platform.

Its strongest advantages are associated with process integration, thermal uniformity, energy-conscious design, and workshop practicality. The independent hot and cold circuits are intended to improve shelf-temperature consistency, while the integrated pre-freezing arrangement can reduce handling and simplify production flow. The residual cold recovery system is designed to reduce energy consumption, and the rectangular chamber can support more efficient space planning.

The equipment is further supported by the capabilities of Jiangsu BoLaiKe refrigeration science and technology development Co., Ltd. The company brings experience in refrigeration and vacuum freeze-drying, research cooperation with universities and institutions, more than 100 reported patents, a modern 24,000-square-meter manufacturing base, international export experience, and integrated engineering and after-sales services.

For food processors, herbal-product manufacturers, supplement companies, research institutions, and other businesses, the BLK-FD-5 can serve as both a production machine and a scale-up platform. Its final suitability should be assessed through product trials, utility review, site planning, process validation, and total-cost analysis. When matched with the right application and operated with disciplined process control, it can provide a dependable foundation for efficient and repeatable freeze-drying production.

References

1. Product specification sheet for BLK-FD-5 Medium-Sized Freeze Drying Equipment.

2. Company information supplied by Jiangsu BoLaiKe refrigeration science and technology development Co., Ltd.

3. General principles of vacuum freeze-drying, including freezing, primary drying by sublimation, and secondary drying.

4. General guidance on freeze-dryer installation, utility planning, preventive maintenance, and process validation.

5. General technical literature concerning shelf-temperature uniformity, heat transfer, mass transfer, and residual moisture control in lyophilization.
