Industrial 200-Square-Meter Freeze Dryer for High-Capacity Production

Large-scale freeze-drying is increasingly important for food manufacturers, agricultural processors, pharmaceutical suppliers, biological-material producers, chemical companies, and health-product manufacturers. As demand grows for products with extended shelf life, preserved structure, strong nutritional value, and rapid rehydration, industrial processors need equipment that can deliver consistent performance at high capacity. The BLK-FD-200 is designed for this requirement. It combines a large 202.2-square-meter freeze-drying area, a standard loading capacity of 2,000 kilograms, a liquid loading capacity of 4,000 liters, and an ultimate vacuum level of no more than 10 Pa.

More than a large chamber, the BLK-FD-200 is an integrated industrial production system. Its design incorporates a cylindrical drying chamber, one-piece radiation plates, intelligent control, optional intermediate isolation technology, flexible refrigeration configurations, energy-recovery systems, and production-oriented process management. These features allow the equipment to support demanding freeze-drying applications while reducing energy consumption, improving batch consistency, and helping manufacturers operate multiple units as a coordinated production system.

For companies evaluating large freeze dryers, equipment capacity is only one purchasing consideration. The machine must also provide stable heat transfer, reliable vacuum performance, effective refrigeration, safe pressure control, maintainability, process flexibility, and long-term technical support. The BLK-FD-200 addresses these requirements through a combination of industrial engineering, quality inspection, customized configuration, and intelligent automation.

Large-Scale Freeze Drying for Modern Industrial Production

Freeze drying, also called lyophilization, removes water from a frozen material through sublimation under vacuum. Unlike conventional hot-air drying, the process can preserve the original shape, color, aroma, texture, and many heat-sensitive components of a product. Because the material remains frozen while ice changes directly into vapor, the drying process can reduce thermal damage and maintain a porous structure that allows rapid rehydration.

At industrial scale, however, freeze drying presents complex engineering challenges. A production system must freeze a large quantity of material uniformly, provide stable shelf temperatures, create and maintain a deep vacuum, remove substantial quantities of water vapor, and control the process over many hours. Small variations in shelf temperature, product thickness, loading density, vacuum conditions, or condenser performance can affect the final product.

The BLK-FD-200 is engineered to meet these challenges in a large chamber format. Its 202.2-square-meter freeze-drying area provides sufficient working space for high-volume production, while the standard loading capacity of 2,000 kilograms supports commercial operations. The 4,000-liter liquid loading capacity is particularly relevant to processors handling liquid formulations, extracts, purees, infusions, biological materials, and other products that require controlled solidification before sublimation.

The equipment is suitable for a broad range of materials, including fruits, vegetables, prepared foods, coffee-related products, medicinal herbs, biological supplies, health supplements, chemical materials, and other temperature-sensitive products. Actual capacity depends on material density, layer thickness, moisture content, product formulation, loading arrangement, and the selected process recipe. This flexibility allows users to configure the system according to their specific production requirements rather than relying on a single fixed application.

Key Technical Specifications

These specifications position the BLK-FD-200 as a heavy-duty production machine rather than a laboratory or pilot-scale unit. The large working area is suitable for manufacturers that need to process substantial quantities per batch, while the vacuum and temperature-control systems are designed to support repeatable industrial cycles.

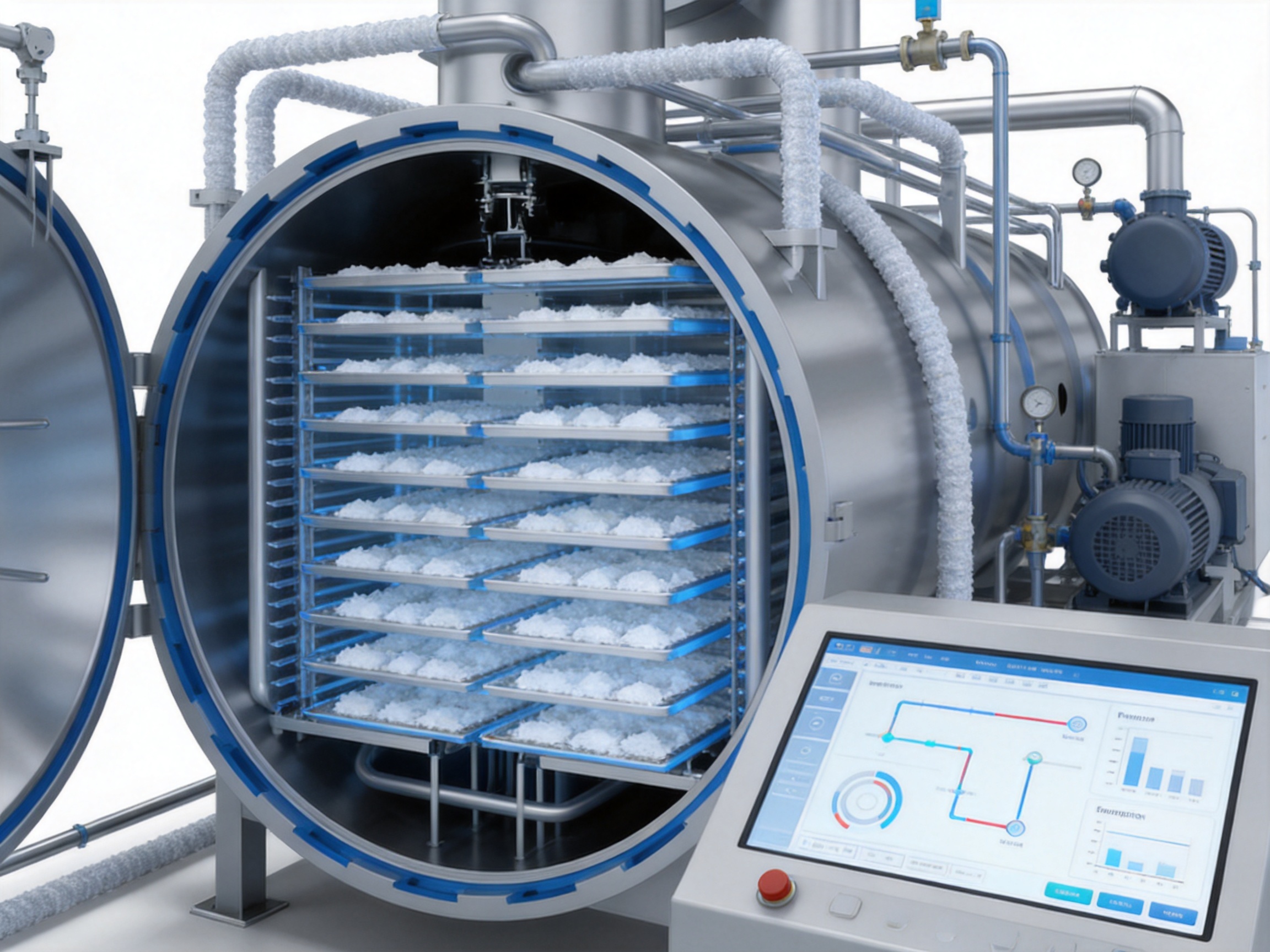

Engineering Advantages of the Cylindrical Chamber

The cylindrical chamber is a major structural feature of the system. A pressure vessel used for vacuum freeze drying must withstand external atmospheric pressure while operating at a deep internal vacuum. A cylindrical geometry distributes mechanical stress effectively and provides a strong foundation for long-term operation.

Structural stability is important not only for safety but also for process reliability. A rigid chamber helps maintain the alignment of shelves, doors, valves, piping connections, and internal components. Stable geometry supports consistent sealing and reduces the risk of deformation that could affect vacuum performance over time.

The equipment is constructed using thick 304 stainless steel components, including an 8-millimeter-thick chamber structure in the described configuration. Stainless steel provides corrosion resistance, mechanical durability, and a cleanable surface suitable for many food, biological, and pharmaceutical-related applications. The material also supports long service life when the chamber is correctly operated and maintained.

The internal design typically accommodates eight sets of material trolleys. Manual or automatic trolley configurations can be selected according to factory layout, labor strategy, loading requirements, and automation objectives. Trolley-based loading also supports organized batch preparation and helps operators maintain consistent product placement from one cycle to the next.

BLK-FD-200

One-Piece Radiation Plates and Uniform Heat Transfer

Heat transfer uniformity is one of the most important factors in industrial freeze drying. During primary drying, energy must be delivered to the frozen product in a controlled manner to provide the heat needed for sublimation without causing product collapse, melting, or excessive temperature rise. During secondary drying, the shelves must support controlled desorption of residual moisture.

The BLK-FD-200 uses one-piece radiation plates without welded joints. This construction reduces potential discontinuities in the heat-transfer surface and supports a more consistent internal thermal environment. Welded joints can create variations in thickness, surface geometry, or fluid flow paths. A one-piece design helps minimize these differences and makes it easier to maintain stable shelf performance.

The special heat-transfer-fluid circuit is designed to keep the temperature deviation between shelves within approximately ±1°C. This level of uniformity is valuable when the same batch is distributed across multiple shelf levels. If one shelf is significantly warmer or colder than another, products may dry at different rates, leading to variations in moisture content, structure, color, and rehydration behavior.

Uniformity also improves process development and scale-up. A recipe developed on a pilot unit can be transferred more reliably to a larger production machine when the industrial shelves behave consistently. Production teams can then focus on material properties and cycle optimization rather than compensating for avoidable equipment variation.

The heating system can be configured for electric or steam heating. Electric heating may be appropriate for facilities that prefer direct electrical control, have limited steam infrastructure, or require a compact utility arrangement. Steam heating can be advantageous in factories that already operate central boilers or process-steam systems. The selection can be made according to local energy prices, available utilities, plant standards, and process requirements.

Vacuum Performance for Efficient Sublimation

Vacuum performance directly affects the freeze-drying cycle. The BLK-FD-200 is designed to reach an ultimate vacuum level of no more than 10 Pa. A stable low-pressure environment supports sublimation by reducing the vapor pressure around the frozen product and helping water vapor move toward the cold trap.

Large industrial chambers contain significant internal volume and generate substantial vapor loads during drying. Establishing vacuum quickly and maintaining it under changing process conditions requires a carefully selected pump system. The equipment can combine different types of vacuum pumps, including screw pumps with Roots pump sets, rotary-vane pumps with Roots pump sets, or water-ring pumps with Roots pump sets.

Each pump arrangement has different characteristics regarding ultimate vacuum, pumping speed, water-vapor tolerance, maintenance requirements, oil management, and utility consumption. The ability to configure the vacuum system gives users greater freedom to match the equipment with their product, operating environment, and plant standards.

The vacuum system can also use variable-frequency control. Rather than operating every pump continuously at full capacity, the system can adjust pumping power according to the actual vacuum demand. During different stages of a cycle, the required pumping rate may vary considerably. Intelligent variable-frequency operation can reduce unnecessary energy consumption, improve control stability, and lower mechanical stress on the pumps.

In practical operation, vacuum performance depends on more than the pumps. Chamber sealing, valve quality, piping design, condenser capacity, product load, moisture release rate, and routine maintenance all influence the final result. The BLK-FD-200’s integrated approach considers these elements as part of a complete vacuum-generation and vapor-management system.

Refrigeration and Cold-Trap Configuration

The refrigeration system has two central responsibilities: freezing the product and condensing the water vapor released during sublimation. A cold trap or condenser must operate at a sufficiently low temperature to capture vapor efficiently and protect the vacuum pumps from excessive moisture loading.

The equipment supports multiple refrigeration panel configurations to address different factory layouts and process requirements. An external refrigeration system can place major refrigeration components outside the main equipment area, which may simplify maintenance access or reduce the heat and noise load inside the production room. A built-in configuration can provide a more compact arrangement where space is limited.

Refrigeration units can also be configured to supply cooling to both cold storage and freeze-drying equipment. This arrangement may help coordinate plant-wide refrigeration resources and reduce the need for completely separate systems. Intelligent variable-frequency refrigeration units can dynamically manage the drying process of multiple freeze dryers, adjusting cooling output according to the changing thermal load.

The refrigeration configuration should be selected after reviewing product requirements, ambient conditions, utility availability, chamber size, target cycle time, and planned future expansion. A properly sized refrigeration system contributes to faster freezing, stable condenser performance, reliable defrosting, and consistent cycle completion.

Intermediate Isolation and Continuous Production

Traditional freeze-drying systems may require a complete cycle to finish before the cold trap can be defrosted and the next batch can begin. For large-scale production, this can create an interval between batches and limit the utilization of the chamber, refrigeration equipment, and labor resources.

The BLK-FD-200 can be equipped with an optional intermediate isolation valve. This patented isolation technology separates the drying chamber from the cold trap under selected operating conditions. By controlling the connection between these sections, the system can support more efficient defrosting and shorten the interval between batches.

The isolation concept also supports precise control of water-vapor flow direction and vacuum status. During normal freeze drying, vapor can be directed toward the condenser. During cold-trap defrosting, the chamber can be protected from unwanted vapor movement or pressure changes. This helps reduce the risk of water-vapor backflow and supports product quality and operational safety.

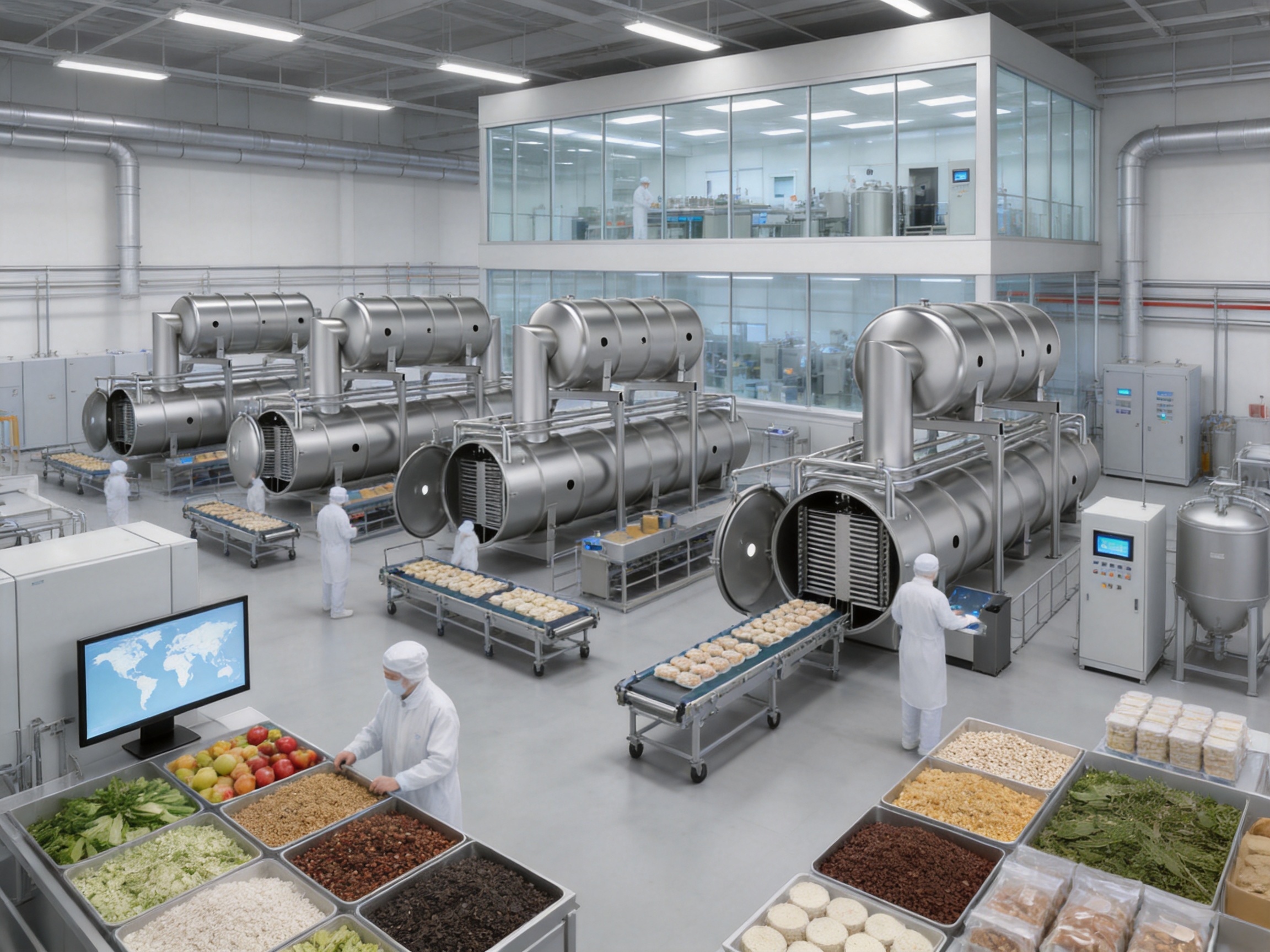

For factories operating multiple units, the isolation system can form part of a coordinated production strategy. One freeze dryer may enter the final drying stage or cold-trap defrosting stage while other units continue processing. This staggered operation can improve the utilization of shared refrigeration and vacuum resources.

Parallel Operation for Higher Output

The equipment supports parallel operation of multiple freeze dryers. This is an important advantage for manufacturers that need to expand production without immediately constructing a completely new processing line. Multiple units can be connected and managed as part of a coordinated system, with feeding, drying, unloading, and defrosting schedules arranged to maintain a stable production rhythm.

The stated production concept indicates that two units may achieve an output comparable to three conventional units under suitable operating conditions. This comparison is not a universal guarantee because actual output depends on product type, cycle time, loading method, utility capacity, and scheduling. Nevertheless, the principle reflects the value of high-capacity equipment, energy recovery, reduced batch intervals, and coordinated operation.

Parallel system design can also improve operational resilience. If one unit is under maintenance or completing a defrost cycle, other units can continue production. A properly designed multi-unit arrangement provides more flexibility than a single oversized machine that represents a single point of failure.

For growing manufacturers, modular expansion is another advantage. A facility may begin with one industrial freeze dryer and later add another unit as demand increases. The final configuration can be planned around shared refrigeration, vacuum technology, central control, cold storage, loading areas, and product packaging operations.

Energy Efficiency and Operating Cost Reduction

Energy consumption is a major cost factor in freeze drying. The process requires refrigeration, vacuum pumping, shelf heating, cold-trap operation, defrosting, control systems, and auxiliary utilities. Because a production cycle can last many hours, even moderate efficiency improvements can produce meaningful annual savings.

The equipment is designed with residual cold recovery and intelligent control as standard features. Compared with traditional equipment, the basic design can reduce energy consumption by approximately 10% to 15%. Additional energy-saving systems and process configurations are described as capable of reducing overall energy consumption by approximately 20% to 40%, depending on the application and operating conditions.

One energy-recovery approach uses residual cold from the refrigeration system to pre-cool the next refrigeration cycle. Traditional systems may release usable cold energy after one operation, forcing compressors to work continuously under a high load. Recovering and reusing this cold energy can reduce compressor load by approximately 20% to 30% in suitable operating conditions.

Heat recovery is another important feature. During freeze drying, heat generated during sublimation, refrigeration, or steam operation may otherwise be discharged. A heat-recovery arrangement can redirect usable heat toward material drying or other suitable process functions. The potential benefit depends on the required heating temperature, product properties, and system configuration.

For material heating temperatures at or below 35°C, the described system indicates that up to 99% of the relevant heating energy may be saved under specific heat-recovery conditions. When the required material-heating temperature is below 80°C, approximately 10% energy savings may be achievable through waste-heat-enhanced operation. These figures should be validated through a site-specific energy assessment and product trial rather than treated as universal performance values.

A heat-pump and economizer system can increase compressor coefficient of performance to approximately 4.8 to 5.9 in the described configuration. A higher coefficient of performance means that the system can provide more useful heating or cooling for each unit of electrical input. This can improve operating economics, especially in facilities with high annual production volumes.

Energy efficiency also depends on process control. Over-drying, excessive cooling, unnecessary pump operation, poor loading patterns, and long idle periods can increase energy use. Intelligent control helps coordinate these variables so that equipment output is matched more closely to the real requirements of each production stage.

Intelligent Central Control System

Large-scale freeze drying involves many interacting variables, including shelf temperature, product temperature, chamber pressure, refrigeration conditions, condenser temperature, pump status, valve position, heating power, and cycle time. Manual coordination becomes increasingly difficult as the number of units and production recipes grows.

The intelligent central control system is designed to manage the operational status of connected equipment. It can coordinate freeze dryers, refrigeration units, vacuum pumps, valves, heating systems, and related equipment from a centralized interface. This arrangement helps operators monitor the complete process rather than managing each component in isolation.

Centralized control can improve recipe repeatability. Operators can establish process parameters for freezing, primary drying, secondary drying, pressure control, heating ramps, defrosting, and cycle completion. The system can record operating data and provide a basis for evaluating batch performance and identifying abnormal trends.

Remote monitoring through a mobile application is also supported. Remote access can help production managers and service personnel review equipment status, alarms, temperatures, pressures, and operating conditions without remaining beside the machine throughout the entire cycle. This capability can shorten response times and support more efficient technical management.

Multiple language options can be customized for international users. Language flexibility is valuable when equipment is installed in factories with multinational teams, local operators, foreign engineering personnel, or multiple production sites.

Automation does not eliminate the need for trained operators. Instead, it gives operators better information and more consistent tools for decision-making. Personnel must still understand product behavior, safe operating limits, cleaning requirements, maintenance procedures, and the relationship between process parameters and product quality.

Manufacturing Quality and Process Inspection

Industrial freeze dryers must be manufactured with precision because the chamber, shelves, piping, valves, refrigeration circuits, electrical controls, and vacuum system all influence final performance. A defect in one subsystem can affect the entire drying cycle. For this reason, the manufacturer applies multiple inspection workflows and pressure-testing procedures during production.

The described manufacturing process includes five core inspection workflows and 58 inspection procedures. Such a structured inspection system can cover material verification, fabrication quality, dimensional accuracy, welding or forming quality, surface treatment, assembly, electrical installation, refrigeration connections, vacuum piping, control-system function, and final commissioning.

Pressure testing is particularly important for refrigeration equipment. The refrigeration system undergoes a pressure-holding test of more than 48 hours in the described quality process. Extended pressure holding helps identify leaks or weaknesses that may not be visible during a short inspection.

The complete machine is subjected to high-pressure and low-pressure testing. The high-pressure test includes a dedicated 48-hour test period. These procedures are intended to verify system integrity and provide additional confidence before shipment and installation.

Pressure testing must be performed according to appropriate engineering procedures and safety standards. The exact test pressure, test medium, duration, acceptance criteria, and documentation should be defined in the equipment quality plan and confirmed with the customer where required.

Manufacturing quality also includes the control of stainless-steel materials, surface finish, component traceability, sealing components, electrical cabinets, sensors, pumps, compressors, and control software. A production system that appears visually complete may still require detailed functional verification before it is ready for commercial operation.

International Standards and Certifications

The BLK-FD-200 is described as being designed according to international specifications. The available information includes EU CE certification and China Quality Management System certification. CE compliance indicates that the applicable machine health and safety requirements have been considered for the relevant market and product configuration.

Certification is one part of equipment quality. Buyers should also review the actual certificate scope, technical file, risk assessment, electrical documentation, pressure-vessel documentation, material certificates, testing records, user manuals, and commissioning procedures. Documentation should correspond to the machine configuration delivered to the customer.

International customers may also require specific standards related to food contact, hygienic design, electrical systems, pressure equipment, refrigeration safety, pharmaceutical production, or local installation regulations. These requirements should be discussed during the technical proposal stage. A customized design can then address regional codes, voltage, frequency, language, facility layout, and validation needs.

Customization for Different Production Facilities

No two industrial freeze-drying plants are exactly alike. Building dimensions, door positions, loading paths, utility systems, floor loading limits, cleanroom arrangements, cold-storage locations, and packaging areas all influence the final equipment layout.

The chamber and unit layout positions of the BLK-FD-200 can be customized. This allows the system to be adapted to the available production space and material flow. Proper layout planning can reduce unnecessary movement, improve operator safety, simplify cleaning, and create a more efficient route from raw-material preparation to loading, drying, unloading, packaging, and storage.

Important layout decisions include the position of the drying chamber, refrigeration panels, vacuum pumps, electrical cabinet, control station, loading doors, trolley parking area, cold storage, defrost drainage, maintenance access, and utility connections. Adequate clearance must be retained around service components so that routine inspection and repair can be completed safely.

Heating can be selected as electric or steam. Vacuum pumps can be configured according to the desired vacuum level and vapor load. Refrigeration can be installed externally or internally. Trolleys can be manual or automatic. Multiple machines can operate independently or as part of a shared system. These choices allow the final installation to reflect the customer’s actual process instead of forcing the factory to adapt to a rigid standard package.

Processing Capacity by Material Category

Freeze-drying capacity is affected by material density and composition. A light, porous fruit product may occupy a different volume and contain a different amount of water than a dense solution or a prepared food. The same chamber area can therefore produce different kilogram capacities for different product categories.

For a tray area of approximately 200 square meters and a loading height of 35 millimeters, the stated processing model indicates different ranges for food, solution categories, and fruits and vegetables. The figures are intended as reference values and should be adjusted according to material density and process characteristics.

These values should not replace a product trial. Before finalizing the equipment, manufacturers should evaluate freezing characteristics, eutectic behavior, collapse temperature, initial moisture, target residual moisture, rehydration performance, product thickness, and packaging requirements. A well-designed freeze-drying cycle balances product quality with cycle time and energy consumption.

Applications Across Multiple Industries

Food and Prepared Foods

Freeze drying is used for fruits, vegetables, instant meals, soups, sauces, meat products, dairy ingredients, snacks, and specialty foods. It can preserve flavor and structure while reducing weight and water activity. The final product can be packaged for long-term storage and rehydrated when needed.

Instant Coffee and Beverage Ingredients

Freeze-drying technology is widely associated with premium instant coffee. The process can preserve aromatic compounds more effectively than some conventional drying methods when the cycle is correctly controlled. The BLK-FD-200 can serve as part of a larger instant coffee freeze-drying production line, with the chamber integrated with extraction, concentration, freezing, granulation, packaging, and quality-control systems.

Fruits and Vegetables

Fruits and vegetables are sensitive to heat, oxidation, texture loss, and color changes. Controlled freezing and sublimation can help maintain a lightweight, porous product with strong rehydration performance. The large loading area supports commercial production for fruit pieces, vegetable ingredients, powders, and specialty snack products.

Medicinal Herbs and Health Supplements

Medicinal herbs, botanical extracts, nutritional ingredients, and health supplements may contain heat-sensitive compounds. Freeze drying provides a low-temperature processing route that can help preserve desirable properties. Product-specific validation remains necessary because different extracts can behave differently during freezing and drying.

Biological and Pharmaceutical-Related Materials

Biological products and pharmaceutical materials often require accurate temperature and pressure control. The large system can be configured for suitable products where the chamber design, materials, cleaning procedures, validation documentation, and control functions meet the customer’s requirements. Regulatory and validation conditions must be confirmed for each intended application.

Chemical and Specialty Materials

Some chemical materials, catalysts, active ingredients, and specialty formulations benefit from controlled removal of solvents or water. Vacuum freeze drying can reduce thermal exposure and help preserve a specific structure. Chemical compatibility, solvent behavior, explosion protection, and environmental controls must be evaluated before equipment selection.

Advantages Compared with Conventional Large Freeze Dryers

The BLK-FD-200 competes through system integration rather than capacity alone. Several design features distinguish it from conventional large-scale equipment.

First, the large 202.2-square-meter drying area and 2,000-kilogram standard loading capacity support high-throughput production. Second, one-piece radiation plates and the special heat-transfer-fluid circuit are designed to improve shelf uniformity. Third, the optional intermediate isolation valve can reduce batch intervals and support more continuous operation.

Fourth, flexible pump and refrigeration configurations allow the system to be matched to different factories and products. Fifth, variable-frequency control and intelligent central management can reduce unnecessary utility consumption. Sixth, cold and heat recovery systems can improve overall energy performance. Finally, parallel operation allows several units to share production scheduling, refrigeration resources, and control functions.

Conventional systems may require separate equipment for each function, operate pumps and compressors at fixed power, or use a basic control system with limited production coordination. They may also lack a practical strategy for cold recovery, heat recovery, or staggered defrosting. The integrated design of the BLK-FD-200 is intended to address these limitations.

Competitiveness should always be evaluated through a complete lifecycle analysis. The initial purchase price is only one factor. Buyers should compare expected energy consumption, cycle time, production yield, maintenance requirements, spare-parts availability, service response, automation capability, expansion potential, and product-quality consistency.

Company Manufacturing and Technical Strengths

Jiangsu Bolaike Freezing Technology Development Co., Ltd. was established in 2014 in Changzhou, Jiangsu, China. Its technical background is connected with Changzhou Zhongleng Refrigeration Equipment Co., Ltd., which entered the refrigeration industry in 2003 and began developing vacuum freeze-drying technology at an early stage.

The company focuses on research, development, manufacturing, sales, installation, commissioning, and after-sales service for vacuum freeze-drying and refrigeration equipment. This integrated structure allows technical knowledge to be carried from initial process analysis through equipment design, factory assembly, site installation, and operational support.

The company serves industries including food, fruits and vegetables, medicinal herbs, health supplements, bioproducts, chemical materials, and other specialized applications. Its professional team covers engineering, research and development, project management, sales, commissioning, and service. Such cross-functional coordination is important for large freeze-drying projects because the final result depends on both equipment design and process implementation.

The company has established long-term partnerships with universities and research institutions, including the Chinese Academy of Agricultural Sciences, the Jiangsu Academy of Agricultural Sciences, and Jiangnan University. Cooperation with research organizations can support product testing, process development, material analysis, energy optimization, and the advancement of new freeze-drying technologies.

More than 100 national invention and utility model patents are associated with the company’s technology portfolio. These patents include systems related to cold recovery, heat recovery, energy management, heat pumps, economizers, isolation, and large-scale freeze-drying operation. Patents do not alone guarantee suitability for every application, but they demonstrate continuing investment in engineering development.

The company operates a modern manufacturing base of approximately 24,000 square meters. A dedicated manufacturing facility supports the fabrication, assembly, inspection, testing, and preparation of large equipment before shipment. Large freeze dryers require substantial production space for chamber fabrication, component integration, pressure testing, control-system verification, and pre-delivery inspection.

The company reports that its equipment has been exported to more than 30 countries and regions. International project experience can help with export packaging, overseas installation, multilingual documentation, local electrical requirements, remote technical support, and coordination with international engineering contractors.

Installation, Commissioning, and After-Sales Support

Successful operation depends on more than delivering the machine. Large-scale freeze dryers must be installed on a suitable foundation, connected to utilities, tested for vacuum and refrigeration performance, and commissioned with the customer’s actual product or a representative material.

Installation planning should begin before shipment. The customer should confirm door dimensions, lifting equipment, floor loading, access routes, drainage, cooling water, electricity, steam, compressed air, ventilation, refrigeration heat rejection, and maintenance clearances. A detailed site survey helps reduce delays and prevents costly modifications after delivery.

Commissioning normally includes mechanical inspection, electrical testing, sensor verification, vacuum testing, refrigeration testing, shelf-temperature mapping, control-system review, alarm testing, defrost testing, and trial operation. Product trials can then be conducted to establish suitable freezing, primary drying, and secondary drying parameters.

After-sales support is particularly valuable when production personnel are learning to operate a large system. Training may cover equipment startup and shutdown, recipe management, trolley handling, cleaning, routine inspection, alarm response, vacuum-pump maintenance, refrigeration maintenance, and safe defrosting.

Long-term service should include access to technical consultation, recommended spare parts, maintenance schedules, software support, remote monitoring assistance, and troubleshooting. Buyers should request a clear service plan before signing the equipment contract.

How to Evaluate the BLK-FD-200 for a New Project

A technical evaluation should begin with the product rather than the machine. The buyer should define the type of material, batch size, target moisture, desired shelf life, final texture, rehydration requirements, allowable cycle time, packaging format, and annual production volume.

The next step is to calculate the required loading area. Product thickness and tray arrangement have a major effect on capacity. A nominal 200-square-meter class machine may deliver different kilogram outputs for a low-density fruit product and a high-solids solution. Representative product trials are therefore essential.

Utility requirements should then be reviewed. The project team should evaluate electrical capacity, steam availability, cooling-water conditions, ambient temperature, refrigeration heat rejection, compressed air, drainage, vacuum-pump exhaust, and cleanroom or hygienic-area requirements.

Control and automation expectations should also be documented. Questions may include whether recipes require electronic records, whether remote access is needed, how many units will be connected, whether production data must be exported, and whether the equipment should communicate with a broader factory management system.

Finally, the buyer should compare lifecycle economics. Energy recovery, variable-frequency equipment, shorter batch intervals, parallel operation, maintenance access, spare parts, and product yield may have a larger financial effect than the initial quotation difference between two machines.

Operational Best Practices

Consistent loading is essential. Material should be distributed evenly across trays, with controlled layer thickness and adequate spacing for vapor movement. Overloading one area can create local resistance to heat transfer and lead to uneven drying.

Freezing should be sufficiently uniform before primary drying begins. The freezing rate influences ice-crystal size, pore structure, drying resistance, and final appearance. Product-specific trials should determine the appropriate freezing profile.

During primary drying, shelf temperature and chamber pressure should be controlled so that the product remains below its critical temperature. Excessive heat can cause collapse or melting, while insufficient heat can unnecessarily extend the cycle.

Secondary drying should be adjusted to achieve the target residual moisture without damaging sensitive components. Excessive secondary drying may waste energy or affect aroma and texture. Process data should be reviewed regularly to identify opportunities for optimization.

Routine maintenance should include inspection of door seals, valves, vacuum pumps, refrigeration components, sensors, electrical connections, heat-transfer-fluid circuits, drainage, and safety devices. Preventive maintenance is generally less expensive than emergency repairs and unplanned production stoppages.

Q&A

What is the main capacity of the BLK-FD-200?

The equipment provides a freeze-drying area of 202.2 square meters and a standard loading capacity of 2,000 kilograms. It also has a liquid loading capacity of 4,000 liters. Actual output depends on product density, loading height, moisture content, formulation, and cycle parameters.

What vacuum level can the system reach?

The stated ultimate vacuum level is no more than 10 Pa. Actual operating pressure during a production cycle depends on product vapor load, condenser performance, pump configuration, sealing condition, and process settings.

Can the equipment process liquid materials?

Yes. The equipment has a stated liquid loading capacity of 4,000 liters and can be configured for suitable liquid products, extracts, solutions, and formulations. Product trials are recommended to determine freezing behavior, layer thickness, and cycle time.

Why are one-piece radiation plates important?

One-piece plates without welded joints help provide a more consistent heat-transfer surface. Together with the special heat-transfer-fluid circuit, they are designed to keep inter-shelf temperature deviation within approximately ±1°C.

What heating methods are available?

Electric and steam heating are available. The choice should be based on the factory’s utilities, energy costs, process requirements, plant standards, and future expansion plans.

Can multiple freeze dryers operate together?

Yes. The system supports parallel operation of multiple units. Production can be organized through staggered loading, drying, unloading, and defrosting cycles, helping improve equipment utilization and production continuity.

Does the equipment include energy-saving technology?

It includes residual cold recovery and intelligent control as standard features. Optional or integrated systems can also provide heat recovery, heat-pump operation, economizer functions, variable-frequency vacuum pumping, and intelligent refrigeration management.

How much energy can be saved?

The available technical information indicates approximately 10% to 15% lower energy consumption than traditional equipment for the basic design, while broader energy-saving configurations may achieve approximately 20% to 40% reductions under suitable operating conditions. Actual results must be confirmed through product and site evaluation.

Is remote monitoring available?

Yes. The intelligent central control system supports remote equipment monitoring through a mobile application. Multiple language options can also be customized for international users.

What inspections are performed before delivery?

The described manufacturing process includes five core inspection workflows and 58 inspection procedures. It also includes more than 48 hours of pressure holding for the refrigeration system and high-pressure and low-pressure testing of the complete machine, with a dedicated high-pressure testing period.

Can the equipment layout be customized?

Yes. Chamber and unit positions can be customized according to the customer’s building, material flow, utility connections, maintenance access, loading method, and production arrangement.

What industries can use this freeze dryer?

Applications include food, fruits and vegetables, instant coffee, medicinal herbs, health supplements, biological materials, chemical products, prepared foods, and other materials that benefit from low-temperature vacuum drying.

Conclusion

The BLK-FD-200 is a high-capacity industrial freeze dryer designed for manufacturers that require more than basic chamber volume. Its 202.2-square-meter drying area, 2,000-kilogram standard loading capacity, 4,000-liter liquid capacity, and vacuum performance of no more than 10 Pa provide a strong foundation for large-scale production.

Its competitive advantages come from the complete system design: a cylindrical stainless-steel chamber, one-piece radiation plates, controlled heat transfer, flexible vacuum-pump combinations, configurable refrigeration, optional intermediate isolation, parallel operation, intelligent central control, cold recovery, heat recovery, and heat-pump technology.

The manufacturing strength behind the equipment is equally important. Structured inspection procedures, long-duration pressure testing, international certification, research partnerships, patent development, a dedicated manufacturing base, and overseas project experience support the machine’s role in demanding production environments.

For a company planning a new freeze-drying facility or expanding an existing line, the most reliable approach is to evaluate the complete project: product behavior, capacity, cycle time, utilities, layout, automation, energy consumption, maintenance, commissioning, and long-term support. When these elements are matched correctly, the BLK-FD-200 can provide a flexible and efficient platform for high-volume freeze-drying production.

References

1. Product technical specifications and application information for the BLK-FD-200 large-scale freeze-drying equipment.

2. Internal equipment descriptions concerning chamber design, radiation plates, vacuum systems, refrigeration systems, energy recovery, and intelligent control.

3. Jiangsu Bolaike Freezing Technology Development Co., Ltd. company profile and manufacturing information.

4. General engineering principles of vacuum freeze drying, sublimation, heat transfer, condenser operation, and secondary drying.

5. Technical information concerning CE certification, quality-management systems, pressure testing, and industrial equipment inspection procedures.

6. Technical descriptions of cold-recovery, heat-recovery, heat-pump, economizer, and intermediate-isolation technologies.
