Freeze drying, also known as lyophilization or vacuum freeze drying, is one of the most effective preservation technologies for products whose quality, structure, aroma, color, nutrients, or active ingredients may be damaged by conventional drying. By freezing a material and removing ice through sublimation under vacuum, the process can produce a stable, lightweight, and highly rehydratable product while minimizing thermal degradation.
However, the transition from laboratory experimentation to commercial production presents significant engineering challenges. Equipment must provide accurate temperature control, reliable vacuum performance, sufficient loading capacity, energy-efficient refrigeration, stable batch repeatability, and a practical footprint. A machine that works well at laboratory scale may not provide the throughput, automation, or process stability required for a production environment. Conversely, a large industrial freeze dryer may be excessive for companies that are validating products, developing recipes, or expanding gradually.

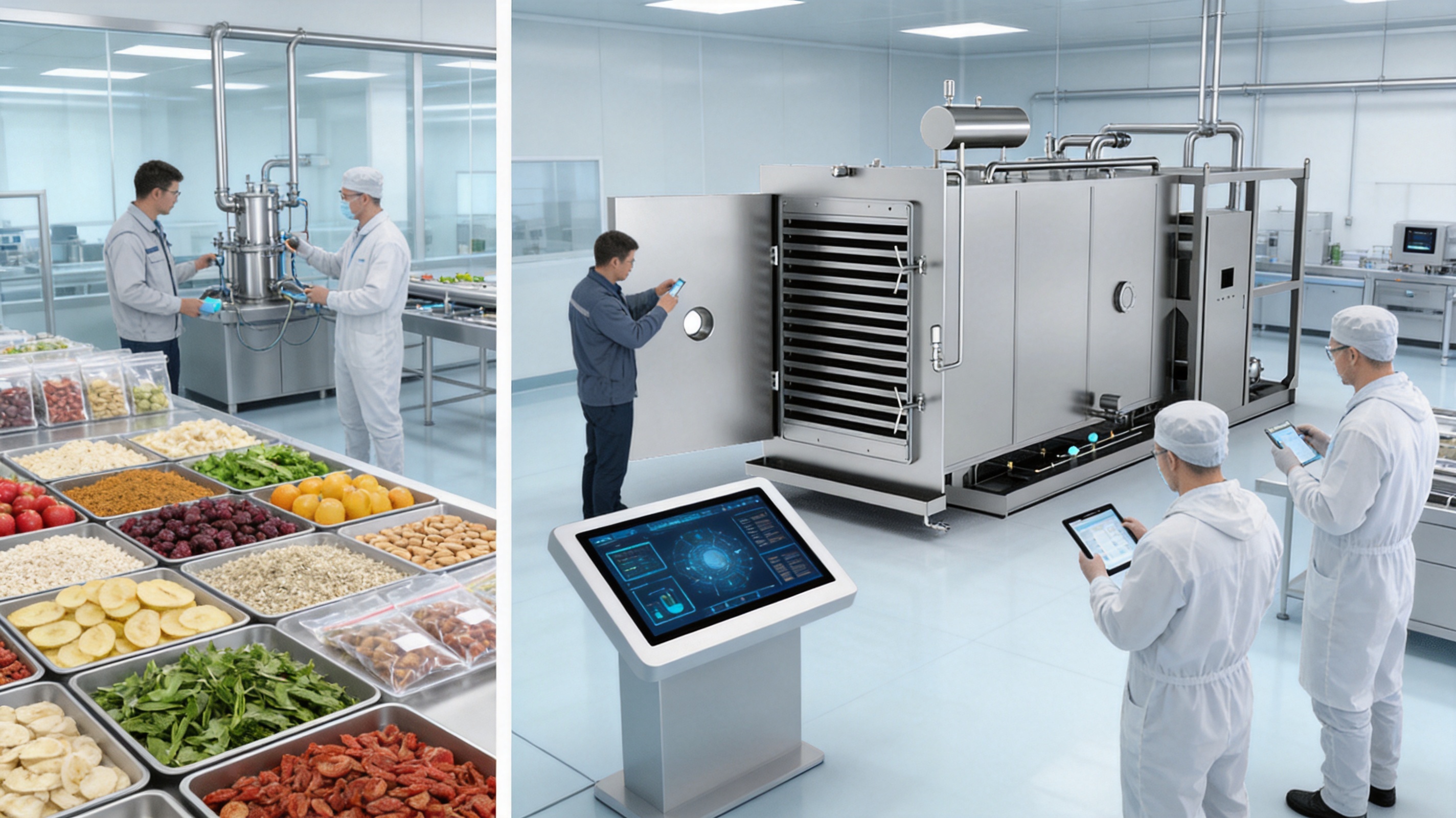

The BLK-FD-20 is designed to address this important middle ground. Classified as a medium-sized freeze-drying system, it provides a bridge between pilot testing and full-scale production. With a 20-square-meter freeze-drying area, a standard loading capacity of 200 kilograms, and a liquid loading capacity of 400 liters, the system is suitable for companies that need meaningful production capacity without immediately investing in a large-scale industrial line.
Its integrated pre-freezing and drying configuration, rectangular chamber design, residual cold recovery system, and patented double-layer radiant panels create a combination of process flexibility and energy efficiency. The system is also designed according to international specifications, making it appropriate for food, agricultural products, medicinal materials, biological supplies, health products, and selected chemical applications.
This article examines the technical characteristics, operational advantages, engineering design, energy-saving systems, manufacturing strengths, application possibilities, and purchasing considerations associated with this pilot-to-production freeze dryer.
The BLK-FD-20 is intended for organizations that have moved beyond laboratory trials but are not yet ready for a very large continuous or multi-chamber production system. It can support product development, process validation, contract manufacturing, seasonal production, specialty food processing, and medium-scale commercial operations.
The unit combines freezing and drying functions in an integrated structure. Materials can be loaded into the freeze dryer, frozen under controlled conditions, and then dried in the same chamber. This eliminates the need to transfer partially frozen material between separate cold-storage and drying systems. Such integration reduces handling, limits exposure to ambient conditions, simplifies plant planning, and helps maintain batch consistency.
Technical parameter | BLK-FD-20 specification |
Freeze-drying area | 20 square meters |
Standard loading capacity | 200 kilograms |
Liquid loading capacity | 400 liters |
Overall dimensions | 6,000 × 2,200 × 3,000 millimeters |
Overall weight | Approximately 10.5 metric tons |
Ultimate vacuum level | Not more than 10 pascals |
Equipment type | Integrated pilot-to-production freeze dryer |
Loading capacity depends on material density, tray arrangement, product thickness, moisture content, and the selected process recipe. The stated standard capacity provides a practical reference for many food and agricultural materials, while the liquid loading capacity is useful for formulations, extracts, beverages, biological materials, and other pumpable products.
The 20-square-meter shelf area offers sufficient space for meaningful commercial trials. Users can evaluate process performance with batches that are large enough to reveal real production behavior, including loading uniformity, freezing rates, sublimation performance, product temperature changes, vacuum stability, and drying endpoint control.
A major advantage of a medium-sized freeze dryer is its ability to support a staged growth strategy. Many manufacturers begin with laboratory tests to determine whether a product is suitable for freeze drying. Laboratory work can establish basic freezing conditions, approximate shelf temperatures, vacuum ranges, drying times, and product rehydration performance. Nevertheless, laboratory results do not always translate directly into production results.
Scale affects heat transfer, vapor flow, product thickness, loading density, chamber pressure, condenser demand, and batch uniformity. A pilot-scale system makes it possible to bridge the gap between small samples and commercial production. It allows process engineers to identify scale-dependent effects before committing to a larger plant.
The BLK-FD-20 can be used in several stages of a product development program. During the first stage, it can support process verification and recipe optimization. During the second stage, it can produce samples for customers, regulatory review, market testing, and packaging evaluation. During the third stage, it can serve as a commercial production system for specialty products or as a supplementary unit for an established factory.
This flexibility is particularly valuable for businesses handling seasonal fruits, vegetables, herbs, instant beverage ingredients, specialty snacks, nutraceutical materials, and high-value biological products. Production demand may grow gradually rather than appearing all at once. A modular pilot-to-production approach enables a company to develop its market while controlling capital expenditure and operational risk.
Compared with a small experimental freeze dryer, the BLK-FD-20 provides a substantially larger processing area and more representative process conditions. Compared with a large-scale freeze-drying installation, it requires less floor space and can be easier to integrate into an existing workshop. This balance is one of its most important competitive advantages.
Traditional process arrangements may use a separate freezer, cold room, transfer system, and vacuum drying chamber. Although such configurations can be effective, they also introduce additional equipment, piping, controls, floor-space requirements, and material-transfer steps. Every transfer can create opportunities for temperature fluctuation, contamination, product damage, and labor inefficiency.
The integrated design of the BLK-FD-20 allows materials to complete freezing and drying within one freeze-drying unit. Once the trays or containers are loaded, the system can carry out controlled pre-freezing followed by primary and secondary drying according to the selected process parameters.
Keeping the product in a single controlled environment offers several benefits. First, it reduces the time during which frozen material is exposed to uncontrolled conditions. Second, it lowers the need for manual handling. Third, it simplifies batch documentation because the principal process stages are managed by the same equipment and control architecture. Fourth, it can improve production planning by reducing the number of independent machines that must be coordinated.
The integrated structure also helps reduce duplicated refrigeration requirements. In a conventional arrangement, cold-storage equipment and the freeze-drying chamber may each require separate refrigeration circuits. An integrated system can use a shared refrigeration architecture more efficiently, reducing some system losses and simplifying maintenance.
For factories with limited workshop space, the integrated design can be especially useful. The product combination is pre-engineered, and the overall dimensions are arranged to support practical installation. After assembly, the site mainly needs appropriate water, electrical, drainage, ventilation, and utility connections, subject to the final project configuration.
The chamber geometry of a freeze dryer influences not only the appearance of the equipment but also its installation footprint, tray arrangement, airflow behavior, radiant-panel configuration, and maintenance accessibility. The BLK-FD-20 uses a rectangular chamber structure designed for medium- and small-scale equipment.
A rectangular chamber can make more effective use of workshop space than a circular chamber with a similar processing area. Straight external surfaces are easier to position alongside walls, service corridors, utility lines, loading areas, and adjacent equipment. This can be important in facilities where every square meter must support production, storage, cleaning, or personnel movement.
The rectangular format also works naturally with rectangular trays and radiant panels. When the chamber width, panel dimensions, and tray arrangement are coordinated, unused corner space can be reduced. This allows the available internal volume to contribute more directly to useful loading capacity.
For the same material loading requirement, a compact rectangular configuration may require a smaller footprint than a comparable circular arrangement. This creates more flexibility when planning raw-material receiving areas, preparation rooms, packaging zones, cold-storage areas, and finished-product warehouses.
Chamber geometry can also affect process uniformity. The design of the BLK-FD-20 is intended to support stable airflow and temperature distribution during freeze drying. Consistent thermal conditions help reduce differences between trays and between product locations, which is essential when the final product must meet defined specifications for moisture, texture, appearance, color, or rehydration.
The equipment dimensions can be customized in length, width, and height according to the project requirements. Customization must be assessed together with refrigeration capacity, shelf configuration, transport limitations, building access, maintenance clearances, and the customer’s process needs. When properly engineered, dimensional flexibility allows the machine to fit a wider range of workshops without sacrificing core functionality.
BLK-FD-20

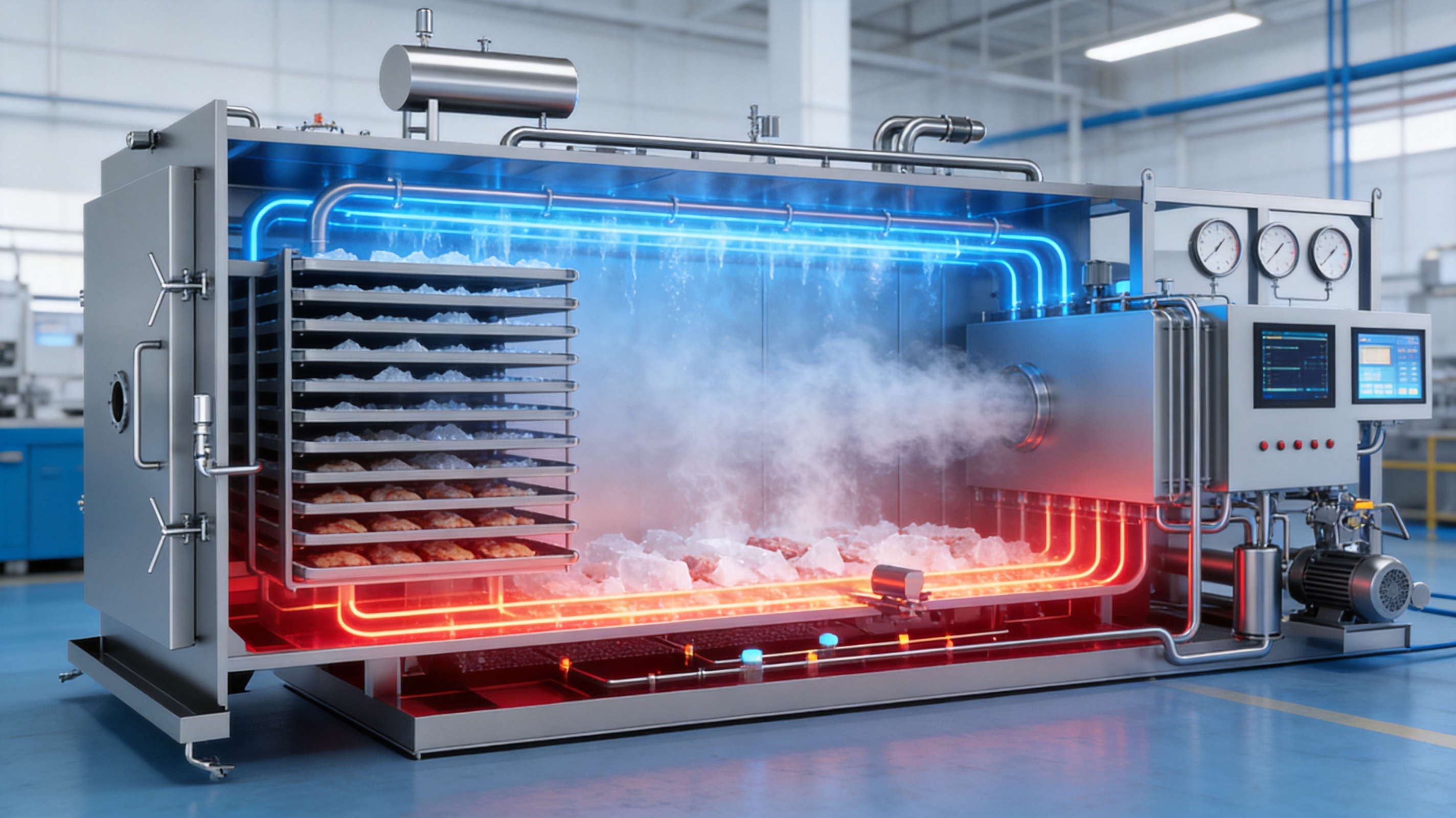

Heat transfer is one of the central engineering factors in freeze drying. During primary drying, heat must be supplied carefully to provide the energy required for ice sublimation without causing product collapse or excessive temperature rise. During pre-freezing, heat must be removed uniformly to create an appropriate ice structure. A shelf or radiant-panel system must therefore support both cooling and heating with accurate control.
The BLK-FD-20 uses a patented double-layer radiant-panel design with independent hot and cold circuits. The upper layer is used for cooling, while the lower layer is used for heating. This arrangement allows the refrigeration and heating functions to operate through dedicated flow paths rather than relying on a single shared circuit for all thermal duties.
Independent circuits can improve temperature control and reduce the compromises that may occur in a simpler single-layer arrangement. The system can respond more effectively to different process stages, allowing controlled freezing, primary drying, and secondary drying within the same chamber.
Uniform shelf temperature is important because product quality can be affected by relatively small thermal differences. If one tray receives too much heat, the product may dry unevenly or develop structural defects. If another tray receives insufficient heat, residual moisture may remain after the scheduled cycle. The double-layer radiant-panel configuration is designed to reduce these differences and support more consistent batch results.
The panel design also matches the rectangular chamber and tray geometry. Better alignment between panels and product trays can increase the effective use of the chamber area. The result is not simply more internal equipment; it is a more coordinated thermal system in which the available surface contributes efficiently to the process.
In addition to improving heat-transfer management, the patented panel structure can contribute to energy performance. Efficient thermal exchange reduces the need for excessive refrigeration or heating input. It can also support shorter cycles when the product recipe and loading conditions are properly optimized.
Freeze drying depends on the controlled removal of water vapor under vacuum. When pressure is reduced sufficiently, frozen water can pass from a solid state directly into vapor through sublimation. The vapor must then be captured by a low-temperature condenser or related vapor-collection system.
The BLK-FD-20 is designed to achieve an ultimate vacuum level of not more than 10 pascals. Actual operating pressure depends on product load, moisture release, condenser conditions, leakage control, pump performance, valve operation, and process stage. Nevertheless, the specified ultimate vacuum provides an important indication of the equipment’s ability to support low-pressure drying conditions.
Stable vacuum is often more important than simply reaching a low number during an empty-chamber test. A production freeze dryer must maintain appropriate pressure while a large quantity of water vapor is being released. The chamber, seals, valves, vacuum piping, condenser, and pumps must operate as a coordinated system.
Reliable vacuum performance helps improve process repeatability. It supports the controlled movement of the sublimation front through the product and assists in protecting heat-sensitive components. It also gives operators a more stable foundation for setting shelf temperature, product-temperature limits, pressure-control parameters, and endpoint criteria.
For products with different structures and moisture contents, the vacuum system must work with the thermal system rather than independently. High-moisture fruit pieces, liquid formulations, herbal extracts, biological materials, and porous food products may release vapor at different rates. The BLK-FD-20’s integrated configuration is designed to accommodate these variations through recipe-based process management.
Energy consumption is a major consideration in freeze-drying because the process involves refrigeration, vacuum generation, heating, condensation, controls, and often long batch cycles. Electricity costs can have a significant effect on the total cost of ownership, particularly for products processed continuously or in multiple daily batches.
The BLK-FD-20 includes an energy-saving architecture that combines integrated refrigeration, residual cold recovery, double-layer radiant panels, and optional heat-recovery technologies. The standard residual cold recovery system is designed to reduce energy consumption by approximately 10% to 15% compared with traditional equipment configurations. The broader system design is also associated with reported energy savings in the range of approximately 20% to 40%, depending on the selected configuration, process conditions, product, and operating practices.
Performance should always be verified against a defined baseline. Energy use varies according to product moisture, initial temperature, loading density, cycle duration, ambient conditions, utility temperatures, final moisture target, and the efficiency of auxiliary equipment. Even so, a system that recovers energy rather than rejecting it can offer a meaningful advantage over conventional designs.
In many conventional systems, cold energy generated during refrigeration is used once and then discharged or allowed to dissipate. The compressor must then work continuously to produce additional cooling. A cold-recovery system instead redirects available cold energy to pre-cool the next refrigeration stage or another appropriate part of the process.
This approach can reduce the refrigeration burden and lower compressor loading. The supplied technical information indicates that cold-energy recycling may reduce overall compressor load by approximately 20% to 30% under suitable operating conditions. Lower compressor loading can reduce electricity consumption, lessen mechanical stress, and potentially extend service intervals.
Because the residual cold recovery system is included as a standard configuration, customers do not necessarily need to purchase it as a separate energy-saving accessory. This improves the equipment’s value proposition compared with systems that treat energy recovery as an expensive optional upgrade.
Freeze-drying processes may generate excess heat during sublimation and heating stages. In a conventional arrangement, some of this heat is discharged. The BLK-FD-20 can be configured with heat-recovery functionality to recycle suitable waste heat or steam heat for material drying.
Heat recovery is particularly attractive when the required material-heating temperature is moderate. The supplied information indicates that when the material heating temperature is no more than 35 degrees Celsius, energy savings can be extremely high in the relevant heating operation. When the required material-heating temperature is below 80 degrees Celsius, approximately 10% energy savings may be achieved through waste-heat enhancement, depending on process design.
Heat recovery requires project-specific engineering. The final result depends on the available heat source, temperature profile, process timing, insulation, heat-exchanger design, product requirements, and hygiene standards. For this reason, heat recovery is described as a customization-required function rather than a universal standard feature.
An optional heat pump and economizer system can improve compressor performance by increasing the coefficient of performance. The stated system target is a compressor coefficient of performance between 4.8 and 5.9, representing a significant improvement compared with traditional freeze-drying equipment under appropriate operating conditions.
Improved coefficient of performance means that more useful heating or cooling effect can be produced for each unit of electrical input. This can reduce operating costs and support more sustainable production, especially where the machine is used intensively throughout the year.
Energy efficiency is not limited to the electricity consumed during a single cycle. A shorter and more stable cycle can increase annual production capacity while reducing labor, cleaning, utility, and equipment-occupancy costs.
The BLK-FD-20’s integrated thermal architecture, controlled shelf temperatures, and energy-recovery features are designed to support efficient process operation. The stated performance information indicates that a single-batch cycle may be shortened by approximately 15% to 25% compared with traditional equipment in suitable applications.
Cycle time must be evaluated carefully because it depends heavily on the product. Product thickness, sugar content, fat content, initial moisture, freezing behavior, tray loading, desired residual moisture, container geometry, and final quality targets all influence drying time. A machine cannot guarantee the same cycle reduction for every material.
Nevertheless, equipment with efficient heat transfer and stable vacuum control gives process engineers more opportunities to optimize the recipe. Faster freezing can create a more suitable ice structure. Uniform shelf heating can reduce the need to extend the cycle to protect slower-drying areas. Reliable vapor removal can support a more predictable transition from primary to secondary drying.
When combined with standardized loading procedures and validated recipes, these features can improve throughput without simply increasing the temperature or applying more energy. That distinction is important because aggressive drying conditions may reduce cycle time at the expense of product quality.
Freeze drying is used when the final product must retain qualities that are difficult to preserve with hot-air drying, spray drying, vacuum drying, or other conventional methods. The low-temperature nature of sublimation can help protect volatile aromas, natural colors, heat-sensitive nutrients, active compounds, and delicate structures.
The BLK-FD-20 is suitable for a broad range of material categories. Food applications may include fruits, vegetables, coffee ingredients, dairy-based products, prepared meals, snack products, sauces, soups, and specialty ingredients. Agricultural applications may include herbs, mushrooms, plant extracts, seeds, and high-value crop products.
Medicinal materials and health products can benefit from freeze drying when preservation of active components, porous structure, or rapid rehydration is important. Biological supplies may also require controlled low-temperature processing. Chemical materials can be evaluated for freeze-drying suitability when solvent or moisture removal must be achieved without excessive thermal stress.
Product development remains essential. The equipment provides the required process platform, but each product needs its own recipe. Engineers typically study freezing temperature, nucleation behavior, shelf temperature, chamber pressure, product temperature, primary-drying duration, secondary-drying temperature, endpoint moisture, and packaging conditions.
The stated batch-processing reference for the BLK-FD-20 demonstrates that capacity varies by material density. Depending on the product category and loading arrangement, a batch may contain approximately 150 to 400 kilograms. Food products, solution-based materials, and fruits and vegetables do not have the same bulk density or moisture-release behavior, so capacity must be confirmed through trials.
Reference material category | Indicative processing range per chamber | Primary capacity consideration |
Food products | Approximately 300 to 400 kilograms | Bulk density, piece size, moisture, and tray loading |
Solution-based materials | Approximately 200 to 300 kilograms | Solid concentration, viscosity, and liquid depth |
Fruits and vegetables | Approximately 150 to 200 kilograms | Water content, cut size, and product geometry |
These figures are planning references rather than universal guarantees. A technical evaluation should include representative raw materials, the intended tray depth, target final moisture, packaging requirements, and the desired batch cycle time.
Equipment performance depends not only on the final machine design but also on the manufacturer’s engineering process. Freeze dryers combine refrigeration, vacuum, thermal transfer, structural fabrication, automation, pressure control, electrical systems, insulation, hygiene requirements, and after-sales support. Weakness in any one of these areas can affect reliability and operating cost.
Jiangsu Bolaike refrigeration science and technology development Co., Ltd. specializes in the research, development, manufacturing, and sales of vacuum freeze-drying and refrigeration equipment. The company was established in 2014 in Changzhou, Jiangsu, China, and developed from a refrigeration business that entered the industry in 2003.
This history provides a foundation in refrigeration engineering as well as freeze-drying technology. The company’s activities cover equipment research and development, mechanical design, manufacturing, engineering implementation, sales, installation, commissioning, and after-sales service. An integrated organization can reduce communication gaps between the equipment designer, production team, commissioning engineers, and customer.
The manufacturer operates a modern manufacturing base of approximately 24,000 square meters. A dedicated production environment supports the fabrication, assembly, inspection, and testing of freeze-drying equipment. Large and medium-sized systems require controlled coordination of chamber construction, refrigeration components, vacuum piping, radiant-panel assembly, electrical control cabinets, insulation, and final system integration.
The company has also established long-term partnerships with universities and research institutions, including the Chinese Academy of Agricultural Sciences, the Jiangsu Academy of Agricultural Sciences, and Jiangnan University. Such relationships can support applied research, product testing, process development, and technology transfer.
More than 100 national invention and utility model patents have been obtained by the company. The patents associated with the supplied product information include technologies related to radiant panels, double radiant panels, energy recovery, integrated energy structures, and heat-pump or economizer systems. Patented technology does not automatically guarantee a result for every application, but it indicates a continuing focus on proprietary equipment development.
Freeze-drying equipment supplied to international customers must meet more than basic functional requirements. It must also address mechanical safety, electrical protection, hygienic design, documentation, installation conditions, operator access, maintenance, and compliance with the regulations of the destination market.
The BLK-FD-20 is described as being designed according to international specifications. The supplied information identifies European Union CE certification and compliance with mechanical health and safety standards. It also identifies certification under the China Quality Management System.
Quality management is especially important for complex equipment because quality must be controlled throughout the entire production process. It includes the selection and inspection of materials, dimensional accuracy, welding quality, surface treatment, pressure and leak testing, refrigeration assembly, electrical wiring, control-system verification, and final functional inspection.
A formal quality system can help ensure that production activities are documented and repeatable. It can also support traceability, corrective action, supplier evaluation, and continuous improvement. For international buyers, quality documentation can simplify internal approval and provide confidence that the machine has been produced under controlled procedures.
Customers should request the specific compliance documents, certificates, test records, material information, electrical standards, and validation support required for their industry and country. Food, pharmaceutical, biological, and chemical facilities may have different requirements, and the final equipment configuration should be reviewed before order confirmation.
Freeze-drying operations involve many variables, including refrigeration temperature, shelf temperature, vacuum pressure, condenser conditions, pump status, valve position, cycle time, and product-temperature limits. Managing these variables manually can increase the risk of operator error and make batch repeatability more difficult.
The BLK-FD-20 can be equipped with an intelligent central control system that manages the operational status of connected equipment. Centralized control allows operators to view and coordinate the main process stages from one interface rather than adjusting multiple independent systems.
A central control system can support recipe management, automatic stage transitions, alarm handling, parameter recording, and process monitoring. These functions can reduce routine operating work and help operators focus on product loading, inspection, sanitation, and quality verification.
Remote monitoring through a mobile application is also supported. Remote access can help maintenance personnel review equipment status, receive alarms, and assess operating conditions without remaining beside the machine continuously. This can be valuable for facilities operating multiple shifts or located far from the manufacturer’s service team.
Multiple language options can be customized to suit the customer’s workforce. Language customization is more than a convenience: clear operator messages can reduce misunderstanding, improve training, and support safer interaction with the equipment.
Automation should be used as a tool for process consistency, not as a substitute for validation. Operators still need appropriate training in product loading, cleaning, recipe selection, alarm response, vacuum integrity, and preventive maintenance. The best results occur when intelligent control is combined with documented procedures and trained personnel.
Freeze dryers are substantial industrial systems. The listed overall dimensions of the BLK-FD-20 are approximately 6,000 millimeters in length, 2,200 millimeters in width, and 3,000 millimeters in height, with an overall weight of about 10.5 metric tons. Installation planning must therefore begin before shipment.
Important preparation topics include building access, door and ceiling dimensions, lifting equipment, foundation strength, drainage, cooling-water requirements, electrical capacity, ventilation, ambient temperature, service clearance, product-flow layout, and hygiene zoning. A proper layout should leave enough space for loading, unloading, inspection, cleaning, component replacement, and emergency access.
The integrated design can simplify site work because the main freezing and drying functions are contained in one unit. Once assembled, the site generally requires connection of water and electricity, together with the other utilities specified in the final technical proposal. The precise requirements depend on the selected refrigeration system, heating method, control package, condenser configuration, and local standards.
Commissioning should include mechanical inspection, electrical checks, vacuum testing, refrigeration testing, control-system verification, safety-device testing, and trial operation. Product trials are recommended after basic commissioning. They allow the customer and engineering team to confirm loading methods, recipe parameters, batch duration, final moisture, appearance, rehydration, and energy performance.
After-sales support is another important purchasing consideration. The manufacturer’s professional team covers installation, commissioning, technical support, and after-sales service. Customers should establish a service plan that includes preventive maintenance, spare parts, operator training, software support, vacuum-pump maintenance, refrigeration-system inspection, and emergency response.
The BLK-FD-20 competes with several types of equipment, including laboratory freeze dryers, separate freezer-and-dryer combinations, conventional medium-sized freeze dryers, and large industrial systems. Its advantages are most apparent when the customer needs a combination of capacity, integration, efficiency, and flexible installation.
Experimental freeze dryers are valuable for laboratory research and initial feasibility work, but their small capacity limits their ability to represent commercial production. Tray loading, vapor flow, thermal inertia, and batch logistics may differ substantially from those of a production unit.
With a 20-square-meter freeze-drying area and a standard 200-kilogram loading capacity, the BLK-FD-20 offers more realistic scale-up conditions. Product developers can test larger batches, generate commercial samples, and identify process variations that might not appear in a laboratory system.
Separate systems may require additional cold rooms, transfer equipment, operators, and control coordination. The integrated BLK-FD-20 reduces the number of product transfers and can simplify the overall plant layout. Its shared system architecture may also reduce duplicated refrigeration resources.
A conventional machine may provide sufficient chamber volume but lack integrated energy recovery or advanced radiant-panel construction. The BLK-FD-20 adds residual cold recovery as a standard configuration and uses independent cooling and heating circuits within its double-layer radiant panels. These technologies are intended to improve energy performance, temperature uniformity, and process flexibility.
Large-scale equipment is appropriate for high-volume production, but it may involve greater capital cost, larger buildings, more complex utilities, and longer installation schedules. For companies developing new products or serving specialty markets, a large system may create excess capacity before demand is established.
The BLK-FD-20 offers a more measured investment path. It can support commercial batches while occupying less space and requiring less extensive infrastructure than a very large industrial line. It can also function as a dedicated product-development and flexible-production unit within a larger factory.
Freeze-dried food products are valued for their low weight, extended stability, rapid rehydration, and preserved sensory characteristics. The BLK-FD-20 can be used for fruit pieces, vegetable pieces, prepared meals, soups, sauces, dairy-based materials, and high-value snacks.
The equipment is also relevant to instant beverage ingredients. Products containing coffee, fruit, tea, milk, or botanical extracts may require careful control of freezing and drying to protect aroma and create a desirable porous structure. Product-specific formulation and recipe development remain necessary to achieve the required solubility and flavor release.
Fruits and vegetables often contain high levels of water and may be sensitive to texture, color, oxidation, and shrinkage. Freeze drying can help retain the original shape and produce a crisp or porous structure when the process is properly designed.
Cut size and arrangement on the trays have a major effect on drying performance. Uniform pieces and consistent loading depth help the system achieve better batch uniformity. The rectangular chamber and radiant-panel arrangement support practical tray utilization for these products.
Herbs, botanical materials, extracts, and health-product ingredients may contain active compounds or aromatic components that are sensitive to heat. Vacuum freeze drying provides a low-temperature preservation route that can be evaluated for these materials.
Facilities processing medicinal or health-related products should define strict cleaning, traceability, documentation, and validation procedures. The machine configuration should be reviewed for the intended regulatory environment and product-contact requirements.
Some biological materials require carefully controlled temperature and moisture conditions to preserve activity or structural properties. Freeze drying can be used for selected biological supplies, provided that the formulation, container, freezing profile, and drying recipe are appropriately developed.
The central control system, vacuum capability, and independent thermal circuits provide a technical foundation for controlled biological processing. Final suitability must be established through product-specific research and validation.
Selected chemical materials can benefit from freeze drying when solvent or moisture removal must be performed under reduced pressure and controlled temperature. Compatibility of materials, seals, piping, vacuum components, and cleaning methods must be assessed before production.
Although the BLK-FD-20 has a defined base specification, each installation should be configured according to the customer’s product and production plan. The following questions should be addressed during the technical evaluation.
What is the product’s initial moisture content and target final moisture content? What is the product’s density, viscosity, particle size, and expected loading depth? Will the material be loaded as pieces, liquid, puree, powder, extract, or packaged units? How sensitive is it to temperature, oxygen, light, or mechanical handling?
What batch size is required, and how many batches must be completed per day? Is production seasonal or continuous? Will the machine serve one product or multiple products? How much time is available for cleaning and changeover? What quality documentation and data recording are required?
What utilities are available at the site? The refrigeration system, heating method, vacuum pumps, electrical controls, water system, and optional energy-recovery technologies all influence utility demand. Customers should also evaluate local service availability, spare-parts access, operator skill levels, and future expansion plans.
Customization of dimensions may be useful when building access or workshop layout is restricted. However, dimensional changes should be reviewed together with heat-transfer area, vapor flow, structural requirements, service access, and transportation limitations. A technically coordinated design is more valuable than a simple reduction in external dimensions.
Good freeze-drying performance depends on both the machine and the way it is operated. Before production begins, operators should standardize raw-material preparation, product thickness, tray loading, pre-treatment, freezing conditions, and batch identification.
Trays should be loaded evenly, with sufficient spacing to support vapor movement. Excessive product depth may increase drying time and create variations between the surface and center of the material. Uneven loading can also make it difficult to determine the correct endpoint for the entire batch.
Freezing conditions should be selected according to the product structure. The size and distribution of ice crystals can influence pore formation, rehydration, texture, and drying resistance. A controlled freezing profile is therefore an important part of process development rather than merely a preliminary step.
During primary drying, operators should monitor chamber pressure, shelf temperature, product temperature, condenser status, and the trend of the batch. During secondary drying, the recipe should provide sufficient energy to remove bound moisture without damaging sensitive components.
At the end of the cycle, the product should be protected from moisture pickup. Unloading, transfer, packaging, and storage conditions may determine whether the quality achieved inside the freeze dryer is maintained. Suitable packaging should provide moisture protection and, where necessary, oxygen protection.
Preventive maintenance helps protect the performance of the refrigeration system, vacuum system, heating system, control system, chamber seals, valves, and radiant panels. Maintenance intervals should be established according to operating hours, environmental conditions, product characteristics, and the manufacturer’s recommendations.
Vacuum integrity should be checked regularly. Leaks, damaged gaskets, contaminated valves, or poor door sealing can increase cycle time and reduce drying performance. Vacuum pumps require appropriate inspection, oil or component maintenance where applicable, and protection from unsuitable vapors or particulates.
Refrigeration components should be inspected for pressure, temperature, oil condition, heat-exchanger cleanliness, condenser performance, and abnormal compressor behavior. A clean and correctly operated refrigeration system is essential for both freezing capacity and energy efficiency.
Radiant panels and product-contact areas should be cleaned according to the material and hygiene requirements. Cleaning procedures must avoid damaging surfaces, seals, sensors, or insulation. For food and pharmaceutical applications, sanitation practices should be incorporated into the production documentation.
The intelligent control system should be backed up through documented recipes, parameter records, alarm histories, and software-management procedures. Remote monitoring can assist with early diagnosis, but it should complement rather than replace on-site safety checks and scheduled service.
A freeze dryer is a complete process system rather than a simple chamber with a vacuum pump. Its performance is determined by the relationship between mechanical design, refrigeration capacity, vacuum conductance, heat transfer, control logic, insulation, materials, and commissioning quality.
A manufacturer with experience in both refrigeration and freeze drying can evaluate these relationships more effectively. This is particularly important when customers request custom dimensions, optional energy recovery, heat-pump systems, special control functions, or applications involving unusual materials.
Bolaike’s combined capabilities in research and development, engineering, manufacturing, installation, commissioning, and after-sales support provide a single technical channel from concept to operation. The company’s experience across food, agricultural, chemical, medicinal, biological, and health-product applications further supports cross-industry process understanding.
Its export experience in more than 30 countries and regions indicates familiarity with international projects, different utility conditions, varying workshop layouts, and customer expectations. International delivery also requires attention to packing, transport, documentation, electrical standards, installation coordination, and remote technical assistance.
The company’s stated focus on green, intelligent, reliable, and environmentally responsible freeze-drying solutions is aligned with the needs of modern manufacturers. Customers increasingly seek not only adequate production capacity but also lower operating costs, more transparent process data, reduced waste, and equipment that can remain productive over many years.
Before purchasing the BLK-FD-20, customers should prepare representative product information and define the intended production objectives. A clear technical brief allows the manufacturer to recommend the most suitable configuration and identify any required customization.
The product brief should include the material name, physical form, initial moisture, target moisture, density, viscosity, tray dimensions, loading height, batch size, expected number of batches per day, and required shelf life. If the material is heat-sensitive, oxygen-sensitive, sticky, corrosive, or potentially explosive, those characteristics should be disclosed during the design stage.
The customer should also identify the required degree of automation. Some users may need basic automatic cycle control, while others may require recipe storage, batch data logging, remote monitoring, multiple language interfaces, alarm history, and integration with plant-level systems.
Utility information should include electrical supply, cooling-water conditions, available steam or hot-water systems, drainage, compressed air if required, ambient temperature, and building ventilation. The equipment layout should account for loading and unloading routes, cleaning areas, maintenance clearances, and future expansion.
Finally, customers should establish acceptance criteria before delivery. These may include empty-chamber vacuum performance, shelf-temperature uniformity, refrigeration capacity, condenser temperature, automatic-control functions, safety interlocks, energy consumption, and product trial results.
The BLK-FD-20 is a medium-sized, integrated pilot-to-production freeze dryer. It combines pre-freezing and drying in one unit and is designed for product development, process scale-up, specialty commercial production, and medium-scale manufacturing.
The freeze-drying area is 20 square meters. The practical batch capacity depends on product density, loading height, moisture content, tray arrangement, and the selected process recipe.
The standard loading capacity is 200 kilograms. The liquid loading capacity is stated as 400 liters. Actual production capacity should be confirmed using representative product trials.
The specified ultimate vacuum level is not more than 10 pascals. Operating pressure during production depends on the material, vapor release rate, condenser performance, vacuum-pump condition, seals, and process stage.
The rectangular chamber can provide better workshop space utilization, easier alignment with rectangular trays and radiant panels, and more flexible installation alongside walls and service corridors. It may also require a smaller footprint than a circular chamber with a comparable loading requirement.
The double-layer radiant panels use independent thermal circuits. The upper layer is used for cooling and the lower layer for heating. This supports controlled freezing and drying while helping improve shelf-temperature uniformity.
Yes. The residual cold recovery system is described as a standard configuration. It is designed to reuse available cold energy and reduce compressor loading compared with traditional arrangements.
Heat recovery requires customization. It can be engineered for applications where suitable waste heat or steam heat is available and where the material-heating temperature is compatible with the recovered energy.
Potential industries include food and beverage, fruits and vegetables, agricultural products, medicinal herbs, health products, biological supplies, chemical materials, and specialty ingredients. Each application requires product-specific process development and compatibility review.
Length, width, and height can be customized according to project requirements. Any dimensional modification should be evaluated together with chamber capacity, heat transfer, vapor flow, utilities, transport, structural design, and maintenance access.
Remote monitoring through a mobile application is supported. Multiple language options can also be customized for different operating teams and markets.
Customers should verify vacuum performance, shelf-temperature uniformity, refrigeration and condenser performance, control-system operation, alarm functions, safety interlocks, loading procedures, cycle time, final moisture, product quality, and energy consumption under representative conditions.
Yes. Its capacity and integrated design are intended to bridge the gap between experimental equipment and large-scale production equipment. It can provide more representative process conditions while remaining more compact and flexible than a very large industrial system.
The BLK-FD-20 is positioned as a practical solution for organizations that need to move from freeze-drying research and pilot trials toward dependable production. Its 20-square-meter freeze-drying area, 200-kilogram standard loading capacity, 400-liter liquid capacity, and ultimate vacuum level of not more than 10 pascals provide a substantial process platform for medium-sized operations.
Its most important advantages come from the way its systems work together. The integrated pre-freezing and drying structure reduces product transfers and simplifies workshop planning. The rectangular chamber improves spatial efficiency and works effectively with rectangular trays and radiant panels. The double-layer radiant-panel design provides separate cooling and heating circuits, supporting more uniform shelf temperatures and improved thermal control.
Energy performance is strengthened by standard residual cold recovery, optional heat recovery, integrated refrigeration architecture, and a heat-pump and economizer system. These technologies can reduce compressor loading, lower energy consumption, and shorten batch cycles when matched with appropriate products and recipes.
The equipment is further supported by international-standard design, quality-management practices, intelligent central control, remote monitoring, configurable language options, and a manufacturer with experience in research, production, installation, commissioning, and after-sales service. More than 100 national patents and partnerships with research institutions demonstrate a continuing commitment to freeze-drying innovation.
For food processors, agricultural-product companies, medicinal-material manufacturers, health-product producers, biological-material developers, and specialty chemical businesses, the BLK-FD-20 can provide a controlled and scalable route to commercial freeze drying. Its final performance will depend on the product, process recipe, loading practice, utilities, and maintenance program, but its integrated design and engineering features create a strong foundation for efficient, repeatable, and adaptable production.
1. Product technical specification sheet for the BLK-FD-20 medium-sized freeze dryer.
2. Manufacturer information concerning vacuum freeze-drying equipment, refrigeration engineering, and integrated production systems.
3. Manufacturer-provided information on double-layer radiant-panel technology and independent cooling and heating circuits.
4. Manufacturer-provided information on residual cold recovery, heat recovery, and energy-saving system design.
5. Manufacturer-provided information on CE certification, quality-management certification, intelligent central control, and remote monitoring.
6. General principles of vacuum freeze drying, sublimation, heat transfer, mass transfer, and product process development.
7. Manufacturer company profile and information regarding research partnerships, manufacturing facilities, patents, global exports, installation, commissioning, and after-sales service.
