BLK-FD-0.2 Integrated Experimental Freeze Dryer for Pharmaceutical and Biochemical Process Development

Freeze-drying is one of the most demanding preservation and formulation technologies used in pharmaceutical, biotechnology, food, and advanced materials research. A successful lyophilization cycle must remove water efficiently while preserving the physical structure, potency, activity, sterility, and reconstitution performance of the product. For this reason, equipment used during research and scale-up must offer more than basic freezing and vacuum drying functions. It must provide precise temperature control, stable vacuum performance, hygienic construction, flexible recipe management, reliable data collection, and a clear pathway toward pilot and commercial production.

The BLK-FD-0.2 integrated experimental freeze dryer is designed to meet these requirements. With a tray area of 0.2 m² and a typical loading capacity of 2 kg, it occupies an important position between small laboratory systems and larger pilot-scale machines. Its square integrated structure, silicone oil electric heating system, high-capacity cold trap, sanitary quick-clamp connections, and intelligent control platform make it suitable for complex process development and pre-pilot production applications.

Manufactured by Jiangsu BoLaiKe Refrigeration Science and Technology Development Co., Ltd., the BLK-FD-0.2 reflects the company’s long-term experience in vacuum freeze-drying and refrigeration technology. The equipment is built according to GMP principles and is intended for pharmaceutical and biochemical research and development centers, CDMO enterprises, universities, national laboratories, and organizations that need to transfer laboratory formulations into compliant production environments.

1. The Role of Experimental Freeze Dryers in Modern Process Development

Freeze-drying, also known as lyophilization, removes water from a frozen product through sublimation under vacuum. The process normally includes freezing, primary drying, and secondary drying. Each stage influences the final product. The freezing stage determines ice-crystal formation and the structure of the frozen matrix. Primary drying removes sublimated ice while the product is maintained below critical temperature limits. Secondary drying removes more tightly bound moisture and helps establish the required residual moisture level.

In pharmaceutical development, small variations in shelf temperature, chamber pressure, condenser performance, or product loading can affect cake appearance, reconstitution time, potency, stability, and batch-to-batch consistency. Experimental freeze dryers must therefore provide high repeatability rather than simply achieving a low vacuum level.

Research teams also need equipment that can support a wide variety of products. These may include vaccines, monoclonal antibodies, enzymes, hormones, gene therapy materials, lipid-based formulations, nanoparticles, microspheres, antibiotics, tissue-engineering materials, and biological samples. Such products can have very different freezing behaviors and thermal sensitivities. A flexible freeze-drying platform enables researchers to evaluate several formulations and cycle strategies without replacing the equipment each time the project changes.

The BLK-FD-0.2 addresses this need by combining laboratory-scale flexibility with several features normally associated with larger, production-oriented systems. Its size is compact enough for research facilities, while its sanitary design, process control functions, and documentation support make it appropriate for structured scale-up work.

2. Product Overview and Core Specifications

The BLK-FD-0.2 is an integrated experimental freeze dryer with a square overall structure. Its dimensions are approximately 1,100 × 900 × 1,400 mm, allowing it to fit within many laboratory, pilot development, and quality-controlled production environments. The unit provides a tray area of 0.2 m² and a typical loading capacity of 2 kg.

The equipment uses silicone oil electric heating for controlled shelf temperature management. The shelf temperature range is from -55°C to +80°C, while the refrigeration panel can reach a minimum temperature of -70°C. The ultimate vacuum level is below 10 Pa in an empty chamber. Installed power is approximately 4.5 kW.

These specifications give the BLK-FD-0.2 a useful balance between capacity and controllability. Compared with very small laboratory freeze dryers, the 0.2 m² tray area allows users to test a larger quantity of product and generate more representative process data. Compared with larger pilot systems, the equipment requires less space and can reduce the amount of material, energy, and laboratory infrastructure needed during early-stage development.

3. Integrated Structural Design for Efficient Laboratory Use

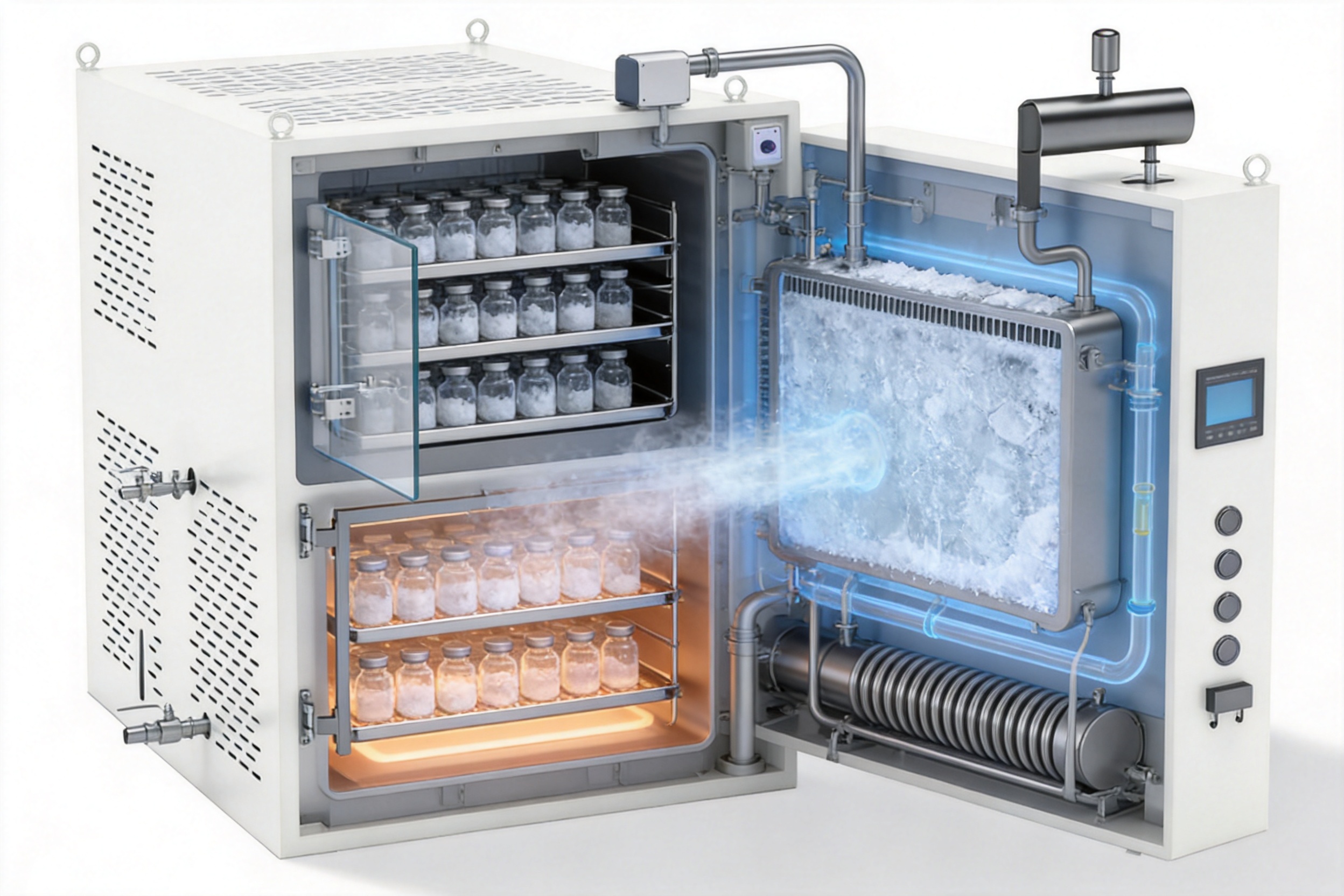

The integrated structure of the BLK-FD-0.2 is one of its principal design advantages. Traditional systems may separate the freezing chamber, drying chamber, refrigeration components, and control assemblies into multiple units. While this arrangement can be suitable for certain large installations, it may increase the equipment footprint, piping complexity, installation requirements, and potential points of maintenance.

The integrated square structure combines the principal functions into a compact equipment body. This design helps laboratories use available floor space efficiently and simplifies the relationship between the process chamber, cold trap, vacuum system, refrigeration circuit, heating system, and controller. It also gives the unit a consistent external configuration that can be adapted to different laboratory layouts.

Structural optimization has enabled the BLK-FD-0.2 to provide a tray area of 0.2 m² while retaining the same approximate external dimensions as the smaller 0.1 model. This means that users can obtain double the tray area of the basic model without requiring a proportional increase in floor space. For organizations with limited laboratory capacity, this improvement can increase development throughput and reduce the need to purchase multiple small machines.

The compact structure also supports convenient access for operation and servicing. Components can be arranged in a way that helps technicians inspect the refrigeration, vacuum, heating, and control systems. A well-organized integrated configuration reduces unnecessary external connections and supports more efficient commissioning.

4. Stable Vacuum Performance Under Demanding Conditions

Vacuum stability is fundamental to freeze-drying. If chamber pressure fluctuates excessively, sublimation may become uneven, drying time may increase, or the product temperature may exceed a critical limit. Vacuum instability can be particularly challenging during low-pressure processes and high-load cycles, when large quantities of vapor are released from the product.

The BLK-FD-0.2 is equipped with a high-capacity cold trap designed to maintain a stable vacuum environment during demanding operating conditions. The cold trap captures water vapor released from the product before the vapor reaches the vacuum pump. By condensing and retaining moisture efficiently, it helps protect the vacuum system and supports consistent chamber pressure.

Its refrigeration panel can reach a minimum temperature of -70°C. This low temperature provides the thermal capacity required for effective vapor capture during primary drying. The high-capacity design is especially valuable when the equipment is operated with heavy loads or with products that release substantial quantities of water.

Efficient vapor capture also helps prevent moisture back-streaming. Back-streaming can occur when vapor is not adequately trapped and returns toward the product or vacuum system. This can reduce drying efficiency, increase the risk of product rehydration, and affect the reliability of the cycle. By providing a cold and sufficiently large condensation surface, the BLK-FD-0.2 helps maintain a more stable drying environment.

For research and scale-up teams, stable vacuum performance is important not only for the current batch but also for the quality of experimental data. When the vacuum environment is repeatable, scientists can compare different shelf temperature profiles, freezing rates, pressure setpoints, and formulation conditions with greater confidence.

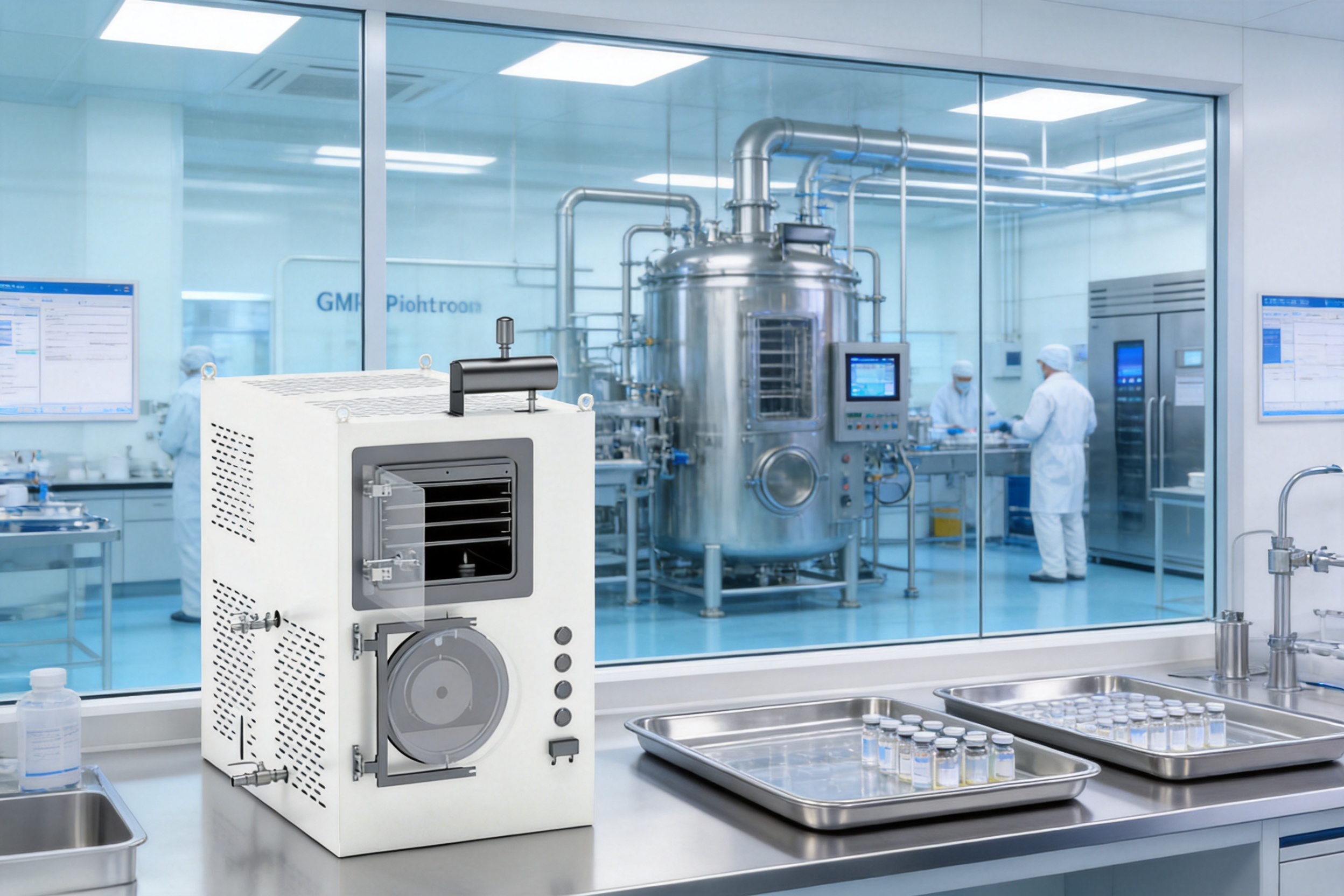

BLK-FD-0.2

5. Silicone Oil Electric Heating and Precise Shelf Control

The BLK-FD-0.2 uses silicone oil electric heating to regulate shelf temperature. A circulating heat-transfer medium allows heat to be distributed across the shelves in a controlled manner. This approach is suitable for freeze-drying applications because the product must often be warmed gradually during primary and secondary drying.

During primary drying, excessive heat can cause the product temperature to rise above its collapse temperature or eutectic temperature. If this occurs, the dried structure may collapse, shrink, melt, or lose its desired appearance. During secondary drying, carefully controlled heating is required to reduce bound moisture without damaging temperature-sensitive active ingredients.

The shelf temperature range of -55°C to +80°C gives users flexibility across freezing, primary drying, and secondary drying procedures. Researchers can develop multi-step curves with different ramp rates, holding periods, and temperature plateaus. This is important for formulations that require a slow freezing stage, controlled nucleation, a conservative primary drying step, or a higher secondary drying temperature.

Silicone oil electric heating also supports responsive adjustment of shelf conditions. The control system can be configured to follow complex freeze-drying curves rather than only simple fixed-temperature programs. This allows the same platform to be used for formulation screening, cycle optimization, stability studies, and process transfer investigations.

For pharmaceutical and biochemical products, temperature consistency across the shelf area is as important as the setpoint itself. Uneven heating can lead to vial-to-vial differences and make experimental conclusions difficult to interpret. The integrated thermal design is intended to support uniform and repeatable shelf conditions throughout the loading area.

6. GMP-Oriented Sanitary Construction

Research equipment used for pharmaceutical and bioprocessing applications should be designed with future compliance requirements in mind. Even when a system is not yet installed in a commercial manufacturing area, its construction can influence cleaning, validation, maintenance, and process-transfer costs.

The BLK-FD-0.2 follows GMP principles in its equipment design. Product-contact surfaces use high-grade 316 stainless steel, a material widely selected for pharmaceutical and biochemical equipment because of its corrosion resistance, durability, and suitability for hygienic processing. The specified surface roughness is Ra ≤0.4 µm, supporting easier cleaning and reducing the likelihood that residues will remain attached to the surface.

Sanitary quick-clamp connections are used instead of hard-to-clean threaded joints in relevant areas. Threads can create narrow spaces in which product residues, cleaning agents, or microorganisms may accumulate. Quick-clamp connections are easier to inspect, disassemble, clean, and reassemble. They can also reduce maintenance time and help technicians identify sealing or connection problems more quickly.

Hygienic-grade sealing materials that meet FDA requirements are used for applicable sealing points. Suitable seals are essential for maintaining vacuum integrity and preventing contamination. They must also withstand the temperature range, pressure conditions, cleaning procedures, and chemical exposure associated with the process.

This sanitary approach gives the BLK-FD-0.2 an advantage over basic research freeze dryers that may use general-purpose laboratory fittings. A machine designed with hygienic principles from the beginning can make later qualification and technology transfer more straightforward. It also helps organizations avoid the expense of redesigning the system when a promising formulation moves toward pilot production.

Equipment construction alone does not replace formal validation. Users remain responsible for developing cleaning procedures, qualification protocols, maintenance schedules, and operating controls appropriate to their products and regulatory environment. However, hygienic design provides a stronger technical foundation for those activities.

7. Flexible Process Curves and Intelligent Control

Freeze-drying cycles are rarely identical from one product to another. A vaccine formulation may require a different freezing profile from a protein solution. A lipid nanoparticle suspension may require different pressure and temperature limits from a tissue-engineering material. The control system must therefore allow users to create and adjust process recipes according to the formulation and container configuration.

The BLK-FD-0.2 supports complex freeze-drying curves. Operators can define stages for freezing, holding, primary drying, secondary drying, and other process steps. Temperature and vacuum settings can be adjusted for individual stages, allowing researchers to investigate the relationship between process parameters and product quality.

Complex curve configuration is particularly useful for cycle development. A development scientist may begin with a conservative process and gradually optimize it by reducing drying time, improving energy efficiency, or increasing product temperature within safe limits. The ability to store and reproduce recipes helps reduce operator-to-operator variation.

The central control system is designed to manage the operating status of connected equipment. Depending on the selected configuration, users can monitor refrigeration, vacuum, shelf heating, cold-trap performance, and related operating conditions from a unified interface. This improves visibility during long cycles, which may continue for many hours or several days.

Remote monitoring through a mobile application is also available as a customizable function. Remote access can be useful for research teams that need to observe a cycle outside normal working hours. It can help personnel respond more quickly to alarms, review equipment status, and coordinate maintenance without remaining beside the machine continuously.

Multiple language options can be customized for different markets and operating teams. The operation screen may be positioned on the front or side according to the user’s actual needs. These options improve ergonomics and help integrate the equipment into different laboratory workflows.

8. Documentation for Validation, Auditing, and Scale-Up

In regulated industries, process documentation is an essential part of equipment value. A freeze dryer should not only perform the process; it should also provide information that supports equipment qualification, operating procedures, maintenance, cleaning, and auditing.

The BLK-FD-0.2 control platform can be supported with technical documentation for CIP and SIP validation activities. CIP, or clean-in-place, refers to cleaning procedures performed without extensive equipment disassembly. SIP, or sterilize-in-place, refers to sterilization procedures conducted within the installed system when the design and process permit it.

The exact validation approach depends on the final equipment configuration, product, facility, utilities, and regulatory requirements. Nevertheless, equipment documentation can help users prepare installation qualification, operational qualification, performance qualification, cleaning validation, and preventive maintenance records.

Documented process parameters also support technology transfer. When a formulation moves from a laboratory machine to a pre-pilot or production freeze dryer, the development team needs a clear record of the original cycle. This includes shelf temperature, chamber pressure, product load, freezing conditions, drying times, condenser temperature, and any deviations or alarms observed during the run.

Using a pre-pilot-scale machine that follows production-oriented design principles can reduce the gap between research and manufacturing. Scientists can develop cycles using hygienic connections, controlled temperature systems, stable vacuum operation, and structured documentation instead of relying entirely on equipment that differs significantly from the final production system.

This approach may reduce scale-up risk. It does not eliminate the need for engineering studies, heat-transfer analysis, mass-transfer evaluation, and process validation, but it gives the team more representative equipment data before the final production investment is made.

9. Applications in Biologics Development

The BLK-FD-0.2 is suitable for research involving biologics and other temperature-sensitive materials. It can support formulation screening and freeze-drying process development for vaccines, monoclonal antibodies, gene therapy products, enzymes, hormones, and protein-based drugs.

Biological products can be sensitive to freezing stress, interfacial effects, aggregation, oxidation, and moisture content. Excipients and stabilizers may be selected to protect the active ingredient during freezing and drying, but their performance depends strongly on the process cycle. A controllable experimental freeze dryer enables researchers to evaluate different formulations and determine which shelf temperature and vacuum conditions provide the best balance of product stability and processing time.

For monoclonal antibodies and other proteins, the final product may need to meet requirements for potency, aggregation, reconstitution, appearance, and residual moisture. The BLK-FD-0.2 can help development teams generate small-scale batches for analytical testing while maintaining a process environment that is more representative of larger systems than a basic benchtop dryer.

Gene therapy and vaccine projects may also involve materials with narrow thermal operating windows. Controlled freezing and low-temperature condensation are important for protecting product structure and reducing the possibility of degradation during drying. The wide shelf temperature range and low refrigeration panel temperature provide a useful foundation for developing such cycles.

10. Aseptic Preparation and Injectable Formulations

The equipment can be used in research involving aseptic preparation and injectable products. Potential applications include freeze-drying of lipid bodies, nanoparticles, microspheres, antibiotics, toxic drug preparations, and radioactive drug preparations, subject to appropriate facility controls and safety procedures.

Lipid bodies and nanoparticles can be particularly sensitive to changes in freezing rate and ice-crystal formation. If the frozen structure is not controlled, particle size, distribution, encapsulation performance, or reconstitution behavior may be affected. Experimental studies using different freezing profiles can help researchers identify a suitable process window.

Microsphere formulations may require a specific porous structure and controlled release profile. Freeze-drying conditions can influence pore size, mechanical strength, and the speed at which the material rehydrates. A programmable shelf system allows researchers to investigate how temperature ramps and drying stages affect these characteristics.

When working with antibiotics, toxic drugs, or radioactive materials, the equipment must be incorporated into a facility designed for the relevant containment, handling, cleaning, and waste-management requirements. The freeze dryer provides the process platform, while the user’s facility procedures determine safe and compliant operation.

The hygienic construction of the BLK-FD-0.2 is especially valuable for injectable-product development. Smooth 316 stainless-steel product-contact surfaces, sanitary connections, and suitable seals help reduce contamination risks and simplify cleaning inspections.

11. Biological Sample Preservation

Freeze-drying is also used to investigate long-term preservation strategies for biological samples. Potential materials include stem cells, bacterial strains, virus vectors, and tissue-engineering materials such as bone and skin scaffolds.

These materials often require careful control of ice formation and drying stress. The objective may be to preserve viability, biological activity, structural integrity, or downstream performance after storage and rehydration. An experimental freeze dryer can help researchers compare cryoprotectants, bulking agents, stabilizers, container systems, and drying cycles.

For bacterial strains and other microbial materials, the final moisture level and storage stability may be critical. For tissue-engineering materials, the pore network and mechanical structure may need to remain intact. The ability to configure different process curves allows the development team to adapt the cycle to the specific sample rather than using a single generic program.

The BLK-FD-0.2 can provide a controlled platform for generating repeatable research samples. When combined with appropriate microbiological, biological, and analytical controls, the equipment can support studies ranging from initial feasibility work to more structured pre-pilot development.

12. Ice-Crystal Control and Product Quality

Ice-crystal size and distribution have a major influence on freeze-dried product structure. Rapid freezing generally produces smaller ice crystals, while slower freezing may produce larger crystals. The correct condition depends on the formulation and the desired final properties.

Small and uniform ice crystals can help preserve the structural integrity of complex materials such as lipid bodies, nanoparticles, and cell carriers. They may also be important for active pharmaceutical ingredients that require a specific crystal form or amorphous state. The development team must balance freezing behavior with drying resistance, product stability, and reconstitution performance.

The BLK-FD-0.2 supports ultra-low-temperature freezing and controlled shelf operation, giving users the flexibility to evaluate different freezing strategies. Researchers can study nucleation behavior, freezing rates, holding times, and the influence of formulation components on the final dried matrix.

Precise process control is particularly useful when the product has a narrow collapse-temperature range. By adjusting shelf temperature and chamber pressure gradually, operators can seek an efficient drying condition while keeping product temperature within the desired limits.

Although no freeze dryer can compensate for an unsuitable formulation, a stable and flexible machine makes it easier to identify the relationship between formulation design and process performance. This can shorten development cycles and improve the quality of decisions made before pilot production.

13. Advantages Compared with Basic Laboratory Freeze Dryers

The BLK-FD-0.2 offers several practical advantages over basic laboratory freeze dryers. First, its 0.2 m² tray area and 2 kg loading capacity provide greater experimental throughput than many small benchtop systems. Researchers can evaluate more samples in a single cycle or prepare a larger quantity for analytical, stability, and reconstitution testing.

Second, its integrated structure combines compact dimensions with a larger effective working area. This is useful in laboratories where floor space is limited but the development program requires more material than a small research unit can accommodate.

Third, its cold-trap capacity is intended for stable operation under low-vacuum and heavy-load conditions. Small laboratory dryers may perform well with light loads but experience longer drying times or less stable vacuum conditions when the quantity of water vapor increases. The BLK-FD-0.2 is designed to provide greater process reserve for such conditions.

Fourth, the sanitary construction is more closely aligned with pharmaceutical and bioprocessing needs. Quick-clamp fittings, 316 stainless steel surfaces, controlled surface roughness, and FDA-compliant sealing materials can simplify cleaning and support later qualification work.

Fifth, the programmable control system and technical documentation support scale-up more effectively than equipment intended only for simple laboratory demonstrations. Researchers can create complex curves, preserve process information, and develop procedures that are more readily transferred to larger freeze dryers.

14. Advantages Compared with Disconnected or Conventional System Designs

Compared with conventional equipment that uses separate refrigeration circuits or duplicate energy systems for the cold-storage and freeze-drying chambers, the integrated design can reduce unnecessary system losses. A shared refrigeration arrangement can support both cooling and drying functions, potentially improving equipment utilization and reducing duplicated components.

The company also promotes an energy-efficient integrated structure in which refrigeration resources are coordinated across operating stages. This can help reduce the energy demand associated with separate cooling systems. The reported energy-saving performance for the company’s equipment is approximately 20% to 40%, depending on the model, process, load, and operating conditions. Actual savings should be confirmed through application-specific testing.

A cold-energy recovery system is another technology associated with the equipment platform. Residual cold energy from the refrigeration medium can be recovered and used to pre-cool the medium for a subsequent cycle. This approach can reduce the load placed on compressors during repeated operation. The company reports that compressor load may be reduced by approximately 20% to 30% in suitable operating conditions.

Energy efficiency is important for laboratories and pilot facilities because freeze-drying cycles are often long and refrigeration equipment may operate continuously. Lower energy consumption can reduce operating costs, improve sustainability performance, and reduce the heat load placed on the facility.

Energy-saving claims depend on the product, load, ambient conditions, cycle length, utility settings, and comparison standard. Even so, the integrated refrigeration and recovery concepts demonstrate the company’s focus on improving the total operating economics of freeze-drying equipment rather than concentrating only on initial purchase price.

15. Manufacturing and Engineering Strengths

Jiangsu BoLaiKe Refrigeration Science and Technology Development Co., Ltd. was established in 2014 in Changzhou, Jiangsu, China. Its technical origins can be traced to Changzhou Zhongleng Refrigeration Equipment Co., Ltd., which entered the refrigeration industry in 2003. This history has provided the company with experience in refrigeration engineering before and during the development of vacuum freeze-drying systems.

The company operates a professional team covering research and development, engineering design, sales, installation, commissioning, and after-sales service. This integrated organization allows the equipment manufacturer to remain involved throughout the project lifecycle rather than treating the machine as an isolated product.

Manufacturing advanced freeze dryers requires cooperation among several engineering disciplines. Refrigeration engineers must design stable low-temperature systems. Vacuum engineers must control chamber pressure and vapor flow. Mechanical engineers must develop reliable chambers, shelves, doors, frames, and sanitary connections. Automation engineers must integrate sensors, control logic, alarms, recipes, and data functions. Quality and service teams must ensure that the completed system can be installed, commissioned, operated, and maintained effectively.

The company has developed more than 100 national invention and utility model patents. These patents include technologies associated with integrated energy-efficient structures and cold-energy recovery. Intellectual property is not a substitute for equipment quality, but it indicates continued investment in research, engineering improvement, and proprietary system development.

The company has moved into a modern manufacturing base of approximately 24,000 square meters. A larger manufacturing base can support organized production areas, equipment assembly, testing, storage, engineering coordination, and service preparation. For customers, this infrastructure can improve manufacturing capacity and provide a foundation for producing multiple equipment specifications.

The company’s product range includes freeze-drying systems and cold-storage engineering solutions for food, fruits and vegetables, medicinal herbs, health supplements, bioproducts, chemical materials, and other industries. Experience across different applications can help engineers understand how changes in product composition, load, moisture content, and process objective affect equipment configuration.

16. Customization and Model Selection

The BLK-FD-0.2 forms part of a series of experimental freeze dryers designed for different research and development requirements. The related models include tray areas of 0.1 m², 0.2 m², 0.5 m², 1 m², and 2 m². Typical loading capacities range from approximately 1 kg to 20 kg, depending on the model.

All models in the referenced series use a square integrated structure, a shelf temperature range of -55°C to +80°C, a refrigeration panel temperature of at least -70°C, an ultimate empty-chamber vacuum level below 10 Pa, and silicone oil electric heating. However, overall dimensions, installed power, tray area, and loading capacity increase as the model size increases.

The BLK-FD-0.2 is appropriate when the 0.1 m² model is too limited for the intended development program but a 0.5 m² or larger system would create unnecessary capacity. Selecting a machine close to the expected development load can reduce material waste and help maintain efficient cycle development.

Customization may include control-screen placement, language options, connected equipment management, process configuration, documentation requirements, and other project-specific features. Pharmaceutical customers may also require particular materials, surface finishes, instrumentation, data functions, cleaning procedures, and qualification documents.

Before selecting the final configuration, users should evaluate product volume, container type, fill depth, target residual moisture, freezing behavior, critical product temperature, expected batch frequency, cleaning method, facility utilities, and future scale-up plans. These factors determine whether the standard BLK-FD-0.2 configuration is sufficient or whether additional options are appropriate.

17. Energy Efficiency and Total Cost of Ownership

The purchase price of a freeze dryer is only one part of its total cost. Users should also consider energy consumption, maintenance requirements, cleaning time, spare parts, operator labor, process duration, product yield, and the cost of failed or nonconforming batches.

The BLK-FD-0.2 addresses operating economics through integrated refrigeration, cold-energy recovery, and process control. If the equipment can reduce the duration of a cycle, improve vapor capture, and maintain stable conditions, the laboratory may be able to complete more development cycles within the same period.

The company reports that its energy-saving technologies may reduce energy consumption by approximately 20% to 40% and shorten a single-batch cycle by approximately 15% to 25%, depending on the process and comparison conditions. These figures should be treated as application-dependent performance references rather than universal guarantees.

Shorter cycles can have a significant effect on development productivity. A research group may be able to test more formulations, generate stability samples sooner, and identify a suitable process window earlier. In a CDMO environment, better equipment utilization can also improve scheduling flexibility.

Reduced maintenance complexity is another cost consideration. Hygienic quick-clamp connections are easier to access than threaded structures, and a centralized control system can help personnel identify abnormal conditions. Preventive maintenance remains necessary, but clear access and organized system design can reduce service time.

18. Installation, Operation, and Maintenance Considerations

The BLK-FD-0.2 should be installed in a location with appropriate floor loading, ventilation, electrical supply, ambient temperature control, and access for maintenance. The final installation requirements depend on the selected configuration and local facility standards.

Operators should receive training in loading practices, product temperature monitoring, vacuum operation, refrigeration safety, recipe management, alarm response, cleaning, and routine inspection. A freeze dryer is a complex process system, and correct operation is essential for protecting both the equipment and the product.

Before production-oriented use, the organization should establish standard operating procedures. These may cover chamber preparation, shelf and condenser checks, gasket inspection, vacuum-leak testing, product loading, cycle initiation, unloading, cleaning, documentation, and deviation handling.

Routine maintenance may include inspection of seals, vacuum lines, pumps, refrigeration components, electrical connections, sensors, and safety devices. The cold trap should be defrosted and cleaned according to the operating schedule and product requirements. Any residue should be removed using an approved procedure that does not damage stainless-steel surfaces or sealing materials.

For regulated applications, users should maintain records of calibration, maintenance, cleaning, alarm events, process deviations, and software or recipe changes. The manufacturer can provide technical information and service support, while the user’s quality system defines the final documentation and approval process.

19. From Laboratory Research to Production

One of the most important benefits of the BLK-FD-0.2 is its role in bridging the gap between laboratory research and compliant pilot production. Early formulation work is often performed with small quantities and simple equipment. However, as the formulation becomes promising, the development team must understand how the process will behave on larger shelves, under greater vapor loads, and within a more formal quality system.

A pre-pilot-scale freeze dryer with production-oriented design features can help identify scale-up challenges earlier. Researchers can examine loading patterns, shelf utilization, chamber pressure stability, condenser capacity, cycle duration, and product temperature behavior before committing to a full-scale production line.

The company’s product philosophy is to use equipment that meets production-oriented standards during research and development. This approach can reduce the risk that a cycle developed on a small, nonrepresentative machine will fail when transferred to a larger system.

The BLK-FD-0.2 is also suitable for organizations that want more than a short-term research tool. A laboratory may purchase the machine for formulation screening and later use it for engineering batches, process confirmation, stability sample preparation, or limited pre-pilot production, subject to the facility’s regulatory status and validation program.

This long-term usefulness can improve the return on investment. The equipment is not limited to one development stage; it can continue to support the project as the product advances toward commercialization.

20. Why the BLK-FD-0.2 Is a Practical Choice

The BLK-FD-0.2 is a practical choice for users who need a compact but capable experimental freeze dryer. Its 0.2 m² tray area and 2 kg loading capacity provide a meaningful increase over very small systems without creating the space and utility demands of a larger pilot unit.

Its low-temperature refrigeration panel and high-capacity cold trap are designed for stable operation during demanding freeze-drying cycles. Its silicone oil electric heating system supports controlled shelf temperature adjustment across a wide range. Its programmable control system can handle complex process curves and assist with consistent recipe execution.

Its GMP-oriented construction gives it an advantage in pharmaceutical and biochemical settings. The use of 316 stainless steel, low surface roughness, sanitary quick-clamp connections, and FDA-compliant sealing materials supports cleaning, inspection, and future validation activities.

Its integrated energy-saving design and optional cold-energy recovery system show attention to operating cost and environmental performance. Its documentation and service capabilities support customers beyond the initial sale, including installation, commissioning, process development, and after-sales support.

Most importantly, the equipment is designed to help users make the transition from laboratory-scale experimentation to larger-scale manufacturing with less uncertainty. It provides a controlled platform for studying products, optimizing cycles, producing representative samples, and preparing the technical information required for future scale-up.

21. Questions and Answers

What is the typical loading capacity of the BLK-FD-0.2?

The typical loading capacity is approximately 2 kg. Actual capacity depends on the product’s moisture content, container arrangement, fill depth, formulation characteristics, and the selected process conditions.

What is the tray area of the equipment?

The BLK-FD-0.2 provides a tray area of approximately 0.2 m². This capacity is suitable for experimental development, formulation screening, engineering studies, and pre-pilot work.

What temperature range does the shelf support?

The shelf temperature range is approximately -55°C to +80°C. This range supports freezing, primary drying, and secondary drying studies for a wide variety of formulations.

How cold can the refrigeration panel become?

The refrigeration panel can reach a minimum temperature of approximately -70°C. This low temperature supports water-vapor capture during freeze-drying cycles.

What vacuum level can the equipment achieve?

The ultimate vacuum level is below 10 Pa in an empty chamber. Actual operating pressure depends on product load, vapor release, system configuration, and process settings.

Why is a high-capacity cold trap important?

A high-capacity cold trap captures water vapor released during drying and helps protect the vacuum system. It supports vacuum stability during low-pressure and heavy-load processes and helps prevent moisture back-streaming.

Is the equipment suitable for pharmaceutical research?

Yes. The equipment is designed according to GMP principles and includes hygienic construction features such as 316 stainless-steel product-contact surfaces, low surface roughness, sanitary quick-clamp connections, and FDA-compliant sealing materials.

Can the BLK-FD-0.2 support complex freeze-drying recipes?

Yes. Its control system supports the configuration of complex freeze-drying curves, allowing users to create different temperature, pressure, holding, and ramping stages for product-specific development.

Does the system support CIP and SIP documentation?

The control and equipment platform can be supplied with technical documentation to facilitate CIP and SIP validation and auditing activities. The final validation procedure must be developed according to the user’s product, facility, and regulatory requirements.

What industries can use this freeze dryer?

Potential applications include pharmaceutical research, biotechnology, biologics development, vaccines, protein drugs, gene therapy materials, injectable formulations, biological sample preservation, health supplements, food products, medicinal herbs, chemical materials, and tissue-engineering research.

Can the operation screen be customized?

The operation screen can be positioned on the front or side according to actual installation and workflow requirements. Multiple language options may also be customized.

Can the equipment be monitored remotely?

Remote monitoring through a mobile application is available as a configurable function. This can help authorized personnel review operating status and respond to alarms more efficiently.

How does the equipment support scale-up?

It combines laboratory-scale capacity with production-oriented hygienic construction, stable refrigeration, programmable process control, and documentation support. These features help researchers generate more representative data before moving to a larger pilot or production freeze dryer.

What should buyers confirm before ordering?

Buyers should confirm product type, batch size, moisture content, container format, fill depth, critical product temperature, target residual moisture, process duration, cleaning method, facility utilities, data requirements, validation expectations, and future scale-up plans.

22. Conclusion

The BLK-FD-0.2 integrated experimental freeze dryer is designed for organizations that require reliable process development equipment with a clear connection to future pilot and production operations. Its compact 1,100 × 900 × 1,400 mm structure provides a 0.2 m² tray area and a typical 2 kg loading capacity, making it an efficient choice for laboratories that need greater capacity without a large equipment footprint.

The combination of silicone oil electric heating, a -55°C to +80°C shelf range, a refrigeration panel reaching approximately -70°C, and an ultimate empty-chamber vacuum level below 10 Pa supports demanding freeze-drying research. The high-capacity cold trap is designed to maintain vacuum stability under low-pressure and heavy-load conditions while reducing the risk of moisture back-streaming.

For pharmaceutical and biochemical users, sanitary construction is a major advantage. 316 stainless-steel product-contact surfaces, Ra ≤0.4 µm surface roughness, hygienic quick-clamp connections, and FDA-compliant sealing materials support cleaning and validation activities. The intelligent control system enables complex process curves, centralized equipment management, multilingual interfaces, front or side screen placement, and optional remote monitoring.

Backed by Jiangsu BoLaiKe Refrigeration Science and Technology Development Co., Ltd.’s refrigeration heritage, research capabilities, manufacturing base, patent portfolio, engineering team, and international service experience, the BLK-FD-0.2 offers more than basic laboratory drying. It provides a development platform intended to improve process consistency, reduce scale-up risk, control operating costs, and support the transition from formulation research to compliant pilot production.

References

1. Jiangsu BoLaiKe Refrigeration Science and Technology Development Co., Ltd. Product specifications and technical information for the BLK-FD-0.2 integrated experimental freeze dryer.

2. International Council for Harmonisation. Pharmaceutical Development and Quality Risk Management principles.

3. United States Food and Drug Administration. Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing.

4. United States Food and Drug Administration. Current Good Manufacturing Practice regulations for pharmaceutical manufacturing.

5. European Commission. Guidelines for Good Manufacturing Practice, Annex 1: Manufacture of Sterile Medicinal Products.

6. Rey, L. and May, J. C. Freeze-Drying/Lyophilization of Pharmaceutical and Biological Products.

7. Jennings, T. A. Lyophilization: Introduction and Basic Principles.

8. Relevant technical literature on heat transfer, mass transfer, ice-crystal formation, vacuum control, and process scale-up in pharmaceutical freeze-drying.
