Modern freeze-drying operations require much more than a vacuum chamber, refrigeration system, and heating shelves. Commercial processors need equipment that can achieve stable freezing, controlled sublimation, uniform product drying, efficient energy use, dependable sanitation, and repeatable batch performance. They also need a system that can fit the available workshop, support different materials, and remain practical to install, operate, maintain, and expand.
The BLK-FD-30 is a medium-sized batch freeze-drying system designed for processors that need industrial production capacity without immediately moving to the footprint and investment level of a very large freeze-drying plant. With a nominal freeze-drying area of 30 square meters, a standard loading capacity of 300 kilograms, and a liquid loading capacity of 600 liters, the system is positioned for food, agricultural, medicinal, biological, chemical, and nutritional applications.
Its design combines pre-freezing and drying in one integrated unit. This approach reduces material transfers, simplifies production planning, and allows the complete freezing and sublimation sequence to take place inside the freeze dryer. The equipment also uses a rectangular chamber, double-layer radiant panels, independent cooling and heating circuits, cold-energy recovery, and centralized intelligent control. Together, these features address several of the most common weaknesses found in conventional freeze-drying installations.
This article examines the technical characteristics, operating principles, manufacturing strengths, energy-saving features, production flexibility, and application value of the BLK-FD-30. It also compares the design benefits of the equipment with common alternatives and explains the considerations buyers should evaluate before selecting a medium-scale industrial lyophilizer.
The BLK-FD-30 belongs to the medium-sized freeze-drying equipment category. It is intended for batch production rather than laboratory testing or continuous processing. The 30-square-meter shelf area provides a practical balance between production volume, installation requirements, and process control.
Specification |
BLK-FD-30 Value |
Production Significance |
Freeze-drying area |
30 m² |
Provides industrial batch processing space for medium-scale production |
Standard loading capacity |
300 kg |
Suitable for many food, agricultural, medicinal, and biological materials |
Liquid loading capacity |
600 L |
Supports liquid products before freezing and drying |
Overall dimensions |
7,600 × 2,200 × 3,300 mm |
Allows production planning around a compact, integrated arrangement |
Overall weight |
14.5 tonnes |
Reflects a robust industrial structure and requires suitable foundation planning |
Ultimate vacuum level |
≤10 Pa |
Supports sublimation under controlled low-pressure conditions |
The standard capacity figure should be understood as a reference rather than a universal output value for every material. Actual loading depends on product density, tray depth, solids content, shape, moisture content, freezing behavior, and the required final moisture level. A low-density fruit preparation may occupy more volume than a dense medicinal extract, even when the two products have the same mass. For this reason, capacity planning should be confirmed through material testing and process validation.
The equipment is also described with a 35-millimeter loading-height reference for capacity modeling. Under this condition, processing quantities can vary according to product density. Food materials may fall within an approximate range of 450 to 600 kilograms in certain loading scenarios, solution-category materials may range from approximately 300 to 450 kilograms, and fruits and vegetables may range from approximately 200 to 300 kilograms. These figures are indicative and must be adjusted according to the actual formulation and operating cycle.
A significant advantage of the BLK-FD-30 is the integration of pre-freezing and drying functions within one freeze-drying system. In a conventional arrangement, material may be frozen in a separate cold room or blast freezer before being transported to the vacuum drying chamber. Although that configuration can work, it introduces additional handling steps and may create temperature fluctuations during transfer.
When frozen material is moved between independent systems, the product can be exposed to warmer air, mechanical vibration, delays, or contamination risks. Partial thawing may also alter ice-crystal structure. Since ice-crystal size and distribution influence pore structure, drying behavior, rehydration performance, and appearance, maintaining a stable thermal history is important for many products.
The integrated configuration allows materials to complete freezing and drying within the same principal enclosure. This reduces the need for intermediate transportation and can simplify production organization. Operators can load prepared material, initiate the freezing stage, and then proceed to primary and secondary drying through a coordinated control sequence.
Fewer transfers can reduce labor requirements and lower the risk of tray damage, product loss, and accidental contamination. This is particularly useful for fragile fruits, vegetables, biological products, medicinal materials, and irregularly shaped food pieces. The integrated structure also reduces the need for a separate pre-freezing room, associated conveyors, and additional cold-storage interfaces.
Freezing and drying are connected as a continuous batch process. The control system can manage the transition between stages without requiring the product to be removed from the chamber. This makes the equipment easier to organize in facilities where floor space, operator movement, or cold-chain continuity is limited.
A separate pre-freezing facility requires its own refrigeration capacity, insulation, drainage, controls, maintenance access, and operating procedures. By integrating the functions, the overall installation can be more compact. The final infrastructure requirements still depend on the selected configuration, utility conditions, cleaning system, and local regulations, but the integrated design can reduce duplication compared with a split arrangement.
The integrated concept is especially suitable for processors that are expanding from pilot production to commercial batches. It offers a production-oriented system without forcing the buyer to create a fully independent freezing department at the beginning of the project.
BLK-FD-30
The chamber geometry of a freeze dryer affects not only internal product loading but also the way the entire production room is organized. Many traditional systems use circular or cylindrical chambers because of their pressure-resistance characteristics. Circular chambers can be mechanically strong, but they may leave unused space around the chamber and may not match the rectangular shape of trays, shelves, service corridors, and factory walls.
The BLK-FD-30 uses a rectangular chamber structure designed for practical workshop layout and efficient internal space utilization. A square or rectangular chamber can make better use of the space occupied by trays and radiant panels, particularly when those components have straight edges and standardized dimensions.
For the same general loading capacity, a rectangular chamber can require a smaller or more manageable footprint than a circular chamber. The straight-sided structure can be positioned closer to walls or adjacent equipment, provided that the manufacturer’s service clearances are maintained. This gives facility planners more freedom when arranging loading areas, unloading zones, cleaning stations, control cabinets, and utility connections.
Freeze-drying trays and radiant panels are generally rectangular. A chamber with corresponding geometry helps reduce unused corner areas and allows the shelf arrangement to occupy a greater proportion of the available internal volume. This does not mean that every rectangular chamber automatically provides better performance; airflow, heat transfer, vacuum distribution, insulation, and control accuracy remain essential. However, the matching geometry creates a strong foundation for efficient loading.
The equipment design is intended to provide stable airflow and temperature distribution during freezing and drying. Uniformity is important because products placed near the chamber door, chamber center, or refrigeration surfaces can otherwise experience different drying conditions. Differences in temperature or vapor movement may cause some trays to finish early while others retain excessive moisture.
A well-designed rectangular chamber, combined with correctly engineered radiant panels and controlled refrigeration, can support more consistent product exposure. The final uniformity depends on product arrangement, tray loading height, formulation, vacuum conditions, condenser performance, and the selected recipe. Nevertheless, the chamber design contributes to a more organized thermal environment than a poorly matched enclosure.
For an equivalent loading requirement, the rectangular chamber concept may reduce the refrigeration and vacuum-pumping demand associated with unnecessary internal volume. A more efficient chamber arrangement can reduce the amount of space that must be cooled and evacuated. Lower utility requirements may translate into reduced operating costs and smaller supporting equipment, although the actual savings depend on the product, cycle, ambient conditions, and operating schedule.
For medium and small production facilities, these layout and utility advantages can be important. They allow a processor to reserve space for raw-material preparation, packaging, quality inspection, and future expansion rather than assigning an excessive portion of the building to the freeze dryer itself.
Heat transfer is one of the most important factors in freeze-drying performance. During primary drying, energy must be supplied carefully to promote sublimation without causing product collapse, melting, or loss of structural quality. During freezing, heat must be removed evenly enough to create a suitable ice structure. A shelf system that is not uniform can cause significant differences between trays and extend the total cycle time.

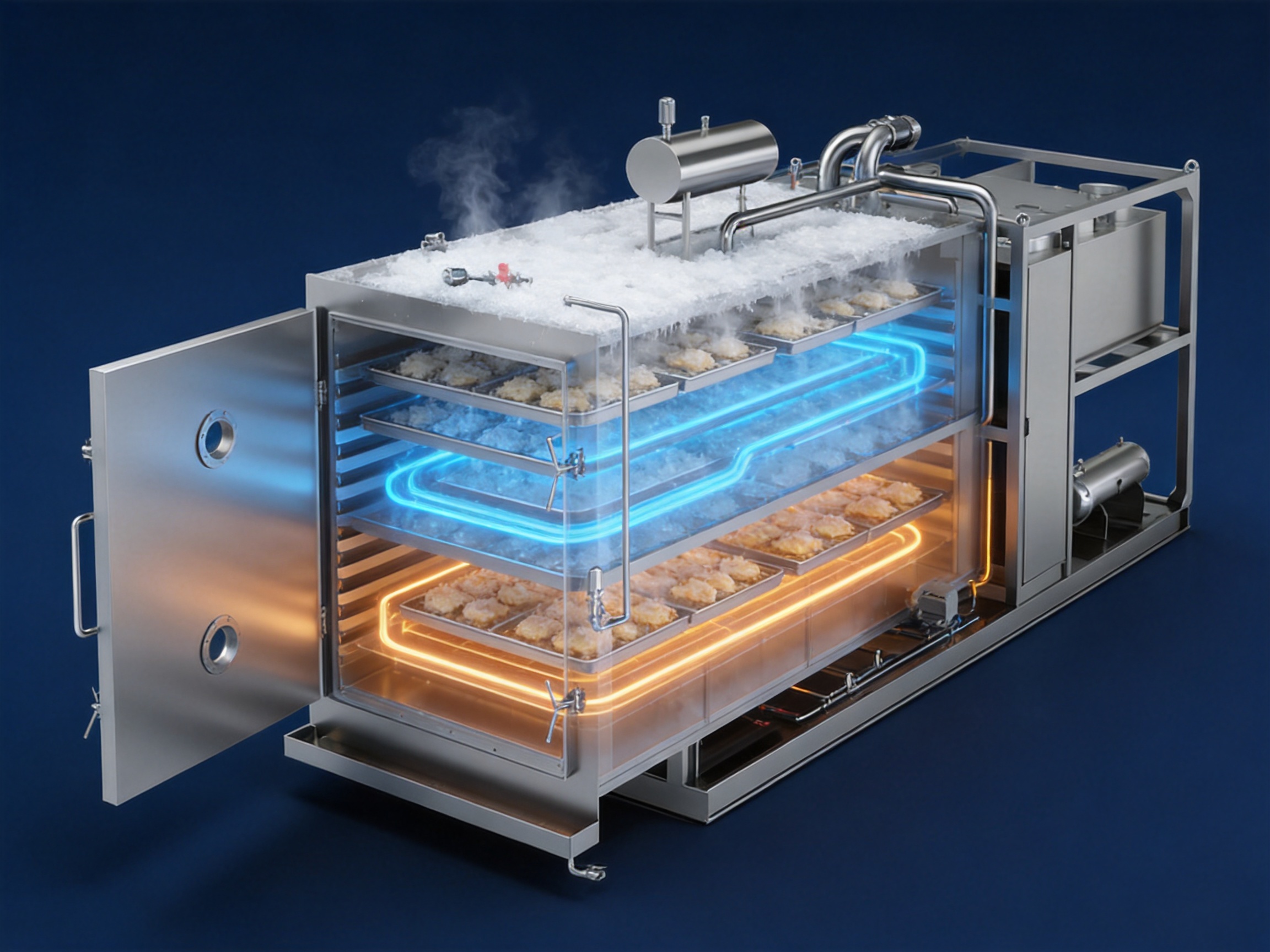

The BLK-FD-30 uses patented double-layer radiant panels with independent hot and cold circuits. The upper layer is designed for the cooling circuit, while the lower layer is designed for the heating circuit. This arrangement separates the main thermal functions while keeping them within a compact panel structure.
Independent circuits help the system deliver cooling and heating in a controlled manner. During freezing, the cooling circuit can bring the shelves and product to the required low temperature. During drying, the heating circuit can add carefully regulated energy to support sublimation and desorption. The dual-layer construction is designed to minimize thermal interference and improve shelf temperature uniformity.
Uniform shelf temperature supports consistent product quality. When one area receives more heat than another, the warmer material may dry faster but also face a greater risk of structural damage. The cooler material may remain wet and require a longer cycle. Better thermal balance makes it easier for operators to establish repeatable recipes and determine an appropriate endpoint.
A freeze-drying cycle contains several thermal phases. The product may first be cooled to a specified freezing temperature, held for a period to complete solidification, and then exposed to vacuum. The shelf temperature is subsequently raised in a controlled pattern during primary drying and may be adjusted again during secondary drying.
The dual-circuit radiant panel design supports these transitions without requiring a completely separate shelf system for each stage. This integrated thermal arrangement can help shorten response times, reduce unnecessary heat losses, and improve the control of product temperature throughout the cycle.
Freeze-dried products are often valued for their appearance, porous structure, aroma retention, rapid rehydration, nutrient preservation, and long shelf life. These characteristics depend on formulation and packaging as well as the equipment. However, a stable and uniform shelf environment is a basic requirement for achieving repeatable quality.
The radiant panels transfer energy through contact and radiation pathways to trays and products. Their performance is influenced by panel flatness, surface condition, circuit design, fluid distribution, insulation, sensor placement, and control software. The double-layer design addresses several of these engineering factors by incorporating dedicated cooling and heating pathways into the panel assembly.
The BLK-FD-30 has an ultimate vacuum level of no more than 10 Pa. In freeze-drying, low pressure is used to create conditions under which ice can transition directly from solid to vapor through sublimation. The exact operating pressure varies according to product type, shelf temperature, chamber load, condenser conditions, and the selected recipe.
Achieving a low ultimate vacuum is not sufficient by itself to guarantee good freeze-drying. The chamber must also maintain stable pressure under load. A chamber can reach a very low pressure when empty but perform differently when filled with a large quantity of product releasing water vapor. For this reason, condenser capacity, vapor flow paths, seals, valves, vacuum-pump selection, and control logic all influence real production performance.
Stable pressure allows operators to manage the relationship between product temperature and sublimation rate. Excessively high pressure can reduce the driving force for sublimation and extend the primary drying stage. Excessively aggressive conditions may create uneven drying or increase the risk of product collapse if the product temperature exceeds its critical temperature.
The equipment’s vacuum system is therefore part of a wider process-control platform. The desired result is not simply the lowest possible pressure but a controlled pressure profile that matches the product’s physical and thermal properties.
During sublimation, large quantities of water vapor leave the product. The vapor must be captured efficiently on a low-temperature condenser so that it does not overload the vacuum system. A properly coordinated condenser and vacuum system helps protect pump performance and maintain the pressure required for drying.
For medium-scale production, vapor management becomes especially important because a 300-kilogram standard load can release substantial moisture. Actual vapor load depends on initial moisture content and final moisture targets. The manufacturer and buyer should review the material balance, expected cycle time, condenser temperature, defrost method, and maximum vapor release rate during project design.
Energy consumption is a major operating cost in freeze-drying. The process requires refrigeration for freezing and condensation, vacuum pumping for pressure control, heating for sublimation and secondary drying, and auxiliary power for controls, valves, fans, pumps, and material handling. Any improvement that reduces duplicated energy demand or recovers otherwise wasted energy can improve the long-term economics of the equipment.
The BLK-FD-30 is equipped with a residual cold recovery system as standard. The product materials also describe broader energy-saving performance, including approximately 10% to 15% lower consumption than traditional equipment in the standard configuration and potential reductions of approximately 20% to 40% under specified integrated, optimized, or customized operating conditions. These values should be treated as application-dependent performance claims rather than guaranteed savings for every product and site.
In a conventional system, cold energy generated during one refrigeration stage may be used once and then discharged or lost. A cold-recovery arrangement can transfer available cooling energy to the next refrigeration demand. This reduces the work required from the compressor and helps maintain a more efficient refrigeration cycle.
The described system recycles cold energy from the refrigeration circuit to pre-cool the next refrigeration process. The stated effect is a reduction of approximately 20% to 30% in overall compressor load under applicable operating conditions. Actual performance depends on ambient temperature, refrigerant conditions, cycle timing, load size, insulation quality, and the number of batches operated over a given period.
Traditional layouts may use separate energy systems for a cold-storage or pre-freezing area and a freeze-drying chamber. An integrated design can allow the freezing and drying functions to share a refrigeration circuit. This reduces the duplication of compressors, heat exchangers, controls, pipework, and auxiliary components.
Sharing a refrigeration circuit can also reduce system losses associated with transferring cold energy between separate units. The design must still provide sufficient capacity, redundancy, and service access for the intended production schedule. When correctly sized, an integrated circuit can provide a more compact and efficient alternative to a disconnected combination of cold rooms and freeze dryers.
Heat generated during refrigeration compression and other stages is often rejected to the environment. In addition, heat associated with the sublimation and heating phases may be discharged rather than reused. The described heat-recovery option captures usable heat and recycles it for material drying or other suitable low-temperature requirements.
Heat recovery may reduce the need for additional electrical or steam heating. The material information indicates that heat recovery can be customized and that, when material heating temperatures are no higher than 35°C, a very high proportion of heating energy may be saved in a suitable process configuration. For materials requiring temperatures below approximately 80°C, the stated energy-saving potential is around 10% in the relevant waste-heat-enhanced system.
These results depend strongly on temperature requirements, heat-exchanger design, cycle timing, moisture load, and whether sufficient recoverable heat is available. Heat recovery should therefore be engineered as part of the complete utility system rather than treated as an automatic benefit independent of process conditions.
The optional heat pump and economizer system is designed to increase compressor coefficient of performance, or COP. The described COP range is 4.8 to 5.9, with an indicated efficiency improvement of approximately five to six times compared with certain traditional freeze-drying arrangements. COP values vary with evaporation temperature, condensation temperature, refrigerant selection, load, ambient conditions, and system configuration.
A higher COP means that the refrigeration system can provide more useful heating or cooling effect for each unit of electrical input. This can lower operating costs, reduce heat rejection, and support more efficient use of installed compressor capacity.
Energy-saving feature |
Primary function |
Potential benefit |
Cold-energy recovery |
Reuses available cooling energy for the next refrigeration stage |
Reduces compressor workload and refrigeration losses |
Integrated refrigeration circuit |
Shares refrigeration resources between freezing and drying functions |
Reduces duplicated systems and supporting infrastructure |
Heat recovery |
Reuses suitable waste heat for material drying or low-temperature heating |
Reduces additional electrical or steam heating demand |
Heat pump and economizer |
Improves the useful output of the refrigeration compressor |
Raises energy efficiency and may reduce operating expenses |
Double-layer radiant panels |
Separates cooling and heating circuits within the shelf structure |
Improves thermal uniformity and heat-transfer control |
One of the strongest commercial features of the BLK-FD-30 is its ability to process different categories of material. Freeze-drying is used for products with very different moisture contents, densities, shapes, thermal sensitivities, and quality requirements. The same nominal shelf area may produce very different batch weights depending on the material.
Food applications may include fruit pieces, vegetables, cooked meals, instant ingredients, dairy-based products, meat products, seafood, sauces, purees, beverages, and specialty snacks. Food processors often value the ability of freeze-drying to retain shape, color, aroma, and rehydration characteristics while reducing water activity.
For food products, tray depth and piece size have a major influence on cycle time. Thin, evenly distributed layers generally dry more predictably than deep or irregular loads. Product preparation, pre-treatment, blanching, slicing, mixing, and tray filling should therefore be standardized before the material enters the chamber.
Fruits and vegetables can be processed as slices, cubes, granules, pieces, purees, or blended formulations. Their density and cellular structure vary widely. A porous fruit may have a lower bulk density than a vegetable piece, even if both contain similar moisture levels.
The medium-scale capacity of the BLK-FD-30 makes it suitable for processors that require regular commercial batches but do not yet need a large continuous production line. The rectangular chamber can also help operators organize trays efficiently and maintain consistent loading patterns between batches.
Medicinal materials and health supplements often contain heat-sensitive compounds or volatile components. Freeze-drying can help preserve the physical characteristics of extracts, biological ingredients, and botanical preparations when the process is correctly validated.
These products may require strict control of temperature, pressure, cleaning, traceability, and batch records. The centralized control system can support recipe management and monitoring, while the equipment’s integrated design reduces unnecessary handling between freezing and drying.
Biological products can be especially sensitive to thermal stress, oxidation, moisture, and processing delays. A controlled freeze-drying cycle may be used for selected biological supplies, cultures, diagnostic materials, or other products where long-term stability is required.
Biological applications must be evaluated according to the specific product, regulatory requirements, container system, sterility strategy, and validation protocol. Equipment suitability should be confirmed through development trials, not determined solely from chamber size or vacuum performance.
Chemical products may be processed to remove solvents or water while preserving a porous cake, powder structure, or specified reconstitution behavior. The chemical compatibility of chamber materials, seals, trays, heat-transfer fluids, and cleaning agents must be reviewed before production.
For chemical applications, the buyer should also determine whether the system requires explosion protection, solvent recovery, special ventilation, inert-gas capability, or additional environmental controls. The BLK-FD-30 can serve as a platform for varied materials, but the final configuration must match the hazards and process requirements of the product.

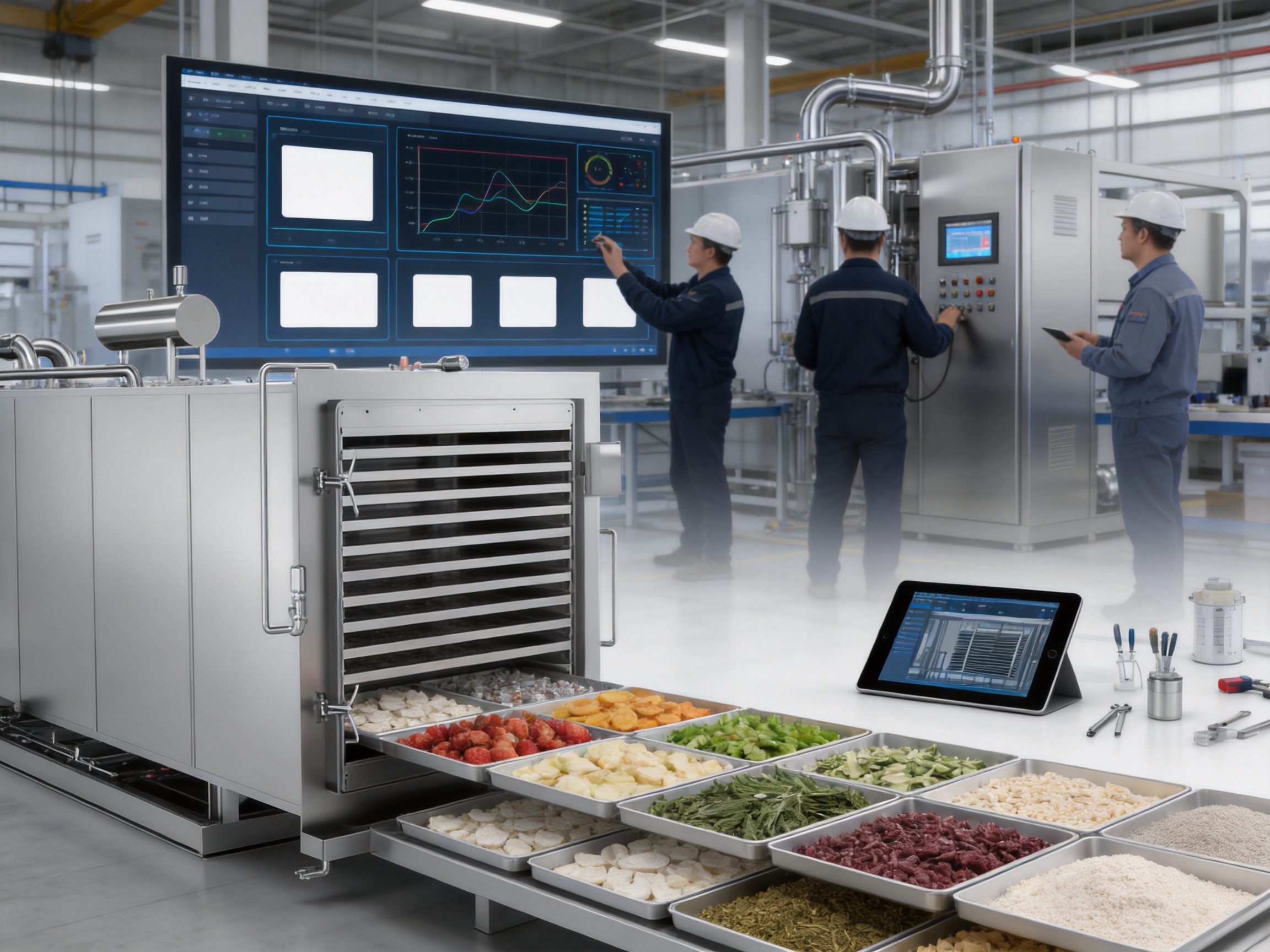

A modern freeze dryer must coordinate refrigeration, vacuum, heating, valves, sensors, alarms, and batch recipes. Manual operation of each subsystem would be slow, inconsistent, and difficult to document. The BLK-FD-30 uses an intelligent central control system that manages the operating status of connected equipment from a unified interface.
The central control architecture can coordinate the sequence of freezing, vacuum establishment, primary drying, secondary drying, pressure adjustment, shelf-temperature changes, and selected recovery functions. Centralized management reduces the risk that one subsystem will operate outside the intended process window.
Operators can use programmed recipes to improve repeatability between batches. Recipes may include shelf-temperature ramps, holding times, pressure settings, transition conditions, alarm limits, and endpoint criteria. The exact control functions depend on the final automation configuration and customer requirements.
Remote monitoring through a mobile application is supported. This can help production managers review equipment status, receive notifications, and respond more quickly to abnormal conditions. Remote access is particularly useful for facilities that operate multiple systems or require technical staff to supervise equipment outside the immediate production area.
Remote monitoring does not replace local safety procedures or on-site operator responsibility. Access permissions, cybersecurity, data backup, and communication reliability should be addressed during commissioning.
Multiple language options can be customized. This is valuable for export installations and multinational production teams. A clear interface reduces training difficulty and helps operators understand alarms, process steps, maintenance prompts, and safety instructions.
For food, pharmaceutical, biological, and regulated applications, batch documentation is increasingly important. Process data can support quality review, troubleshooting, recipe optimization, and production traceability. Buyers should confirm the available data-recording functions, storage capacity, export formats, user permissions, electronic records, and integration with plant-management systems.
The performance of a freeze dryer depends on manufacturing quality as much as on the published specification. Large welded structures, pressure-resistant chambers, refrigeration circuits, vacuum components, radiant panels, insulation systems, valves, sensors, and control cabinets must work together under repeated thermal cycling.
Jiangsu Bolaike Refrigeration Science and Technology Development Co., Ltd. was established in 2014 in Changzhou, Jiangsu, China. Its technical origin is connected with Changzhou Zhongleng Refrigeration Equipment Co., Ltd., which entered the refrigeration industry in 2003 and developed vacuum freeze-drying technology at an early stage.
The company operates across research and development, engineering, manufacturing, sales, installation, commissioning, and after-sales service. This integrated structure can improve communication between the teams responsible for design, fabrication, site installation, and production support. For industrial equipment, such coordination is valuable because performance problems often occur at the interfaces between mechanical, refrigeration, electrical, vacuum, and software systems.
The company has established long-term partnerships with universities and research institutions, including the Chinese Academy of Agricultural Sciences, the Jiangsu Academy of Agricultural Sciences, and Jiangnan University. Cooperation with research organizations can support product development, material testing, process research, and technical improvement.
Freeze-drying equipment must be developed around both engineering principles and product behavior. Research cooperation can help connect machine design with studies of moisture migration, ice-crystal formation, drying kinetics, rehydration, food structure, and biological stability.
The company reports more than 100 national invention and utility model patents. The product materials identify patented technologies associated with radiant panels, double radiant panels, integrated energy structures, cold recovery, and heat recovery.
Patents do not automatically guarantee suitability for every application, but they indicate a continuing focus on proprietary equipment development. A buyer should still evaluate the practical performance of each technology through specifications, factory acceptance testing, site acceptance testing, reference applications, and product trials.
The company has moved into a modern manufacturing base covering approximately 24,000 square meters. A dedicated manufacturing site can support the fabrication, assembly, inspection, testing, and dispatch of large industrial equipment. It may also provide better control over production scheduling, component integration, quality inspection, and customer acceptance procedures.
Because the BLK-FD-30 has overall dimensions of approximately 7,600 × 2,200 × 3,300 millimeters and a weight of approximately 14.5 tonnes, manufacturing and transportation planning are important. The project should account for factory access, lifting capacity, shipping configuration, installation routes, floor loading, utility connections, and maintenance clearances.
The BLK-FD-30 is described as being designed according to international specifications. The equipment is associated with EU CE certification and China Quality Management System certification. These credentials indicate attention to mechanical safety, quality management, and international market requirements.
CE conformity is relevant for equipment supplied to markets that apply European safety and machinery requirements. It typically involves assessment of applicable directives or regulations, risk analysis, technical documentation, safety measures, and conformity procedures. The exact scope should be confirmed from the current documentation supplied for the individual machine.
A quality management certification indicates that the manufacturer has established documented processes for activities such as design, purchasing, production, inspection, corrective action, and customer service. Effective quality management can reduce variation in manufacturing and improve the consistency of delivered equipment.
Before shipment, buyers should request a factory acceptance test. The FAT may include dimensional checks, vacuum testing, refrigeration testing, shelf-temperature uniformity checks, control-system verification, alarm testing, safety-interlock verification, valve operation, and review of documentation.
If possible, a representative product trial should be included. Product testing can reveal differences between empty-chamber performance and real batch conditions. It can also help establish initial recipe parameters and confirm whether the selected condenser, vacuum system, and thermal circuits are appropriate for the material.
After installation, a site acceptance test should verify that the equipment reaches the required performance under actual utility and environmental conditions. Commissioning normally includes alignment, connection inspection, vacuum leak checks, refrigeration operation, control calibration, emergency-stop testing, operator training, and trial production.
Installation and commissioning are important strengths of a supplier that maintains engineering and after-sales capabilities in-house or through an organized service network. A technically sound machine can still perform poorly if it is incorrectly installed, inadequately insulated, improperly connected, or operated with an unsuitable recipe.
The BLK-FD-30 has several design advantages compared with conventional freeze-drying equipment. These advantages should be assessed in relation to the buyer’s product and facility rather than treated as universal claims.
The integrated design reduces product transfer between a freezer and a dryer. This can improve workflow, reduce handling, and simplify temperature management. It may also reduce the number of major machines that must be purchased and maintained.
The rectangular chamber can provide a more efficient relationship between chamber shape, trays, shelves, and workshop walls. It may offer better space utilization and easier facility planning for medium-scale plants. Straight-sided geometry can also simplify the arrangement of internal shelf layers and loading equipment.
Double-layer radiant panels with independent cooling and heating circuits provide more dedicated control of the freezing and drying stages. This can improve shelf-temperature uniformity and reduce the compromises associated with a less specialized panel structure.
Cold recovery and optional heat recovery reduce the amount of energy that is used only once. The integrated energy structure may also reduce the duplication of refrigeration equipment. These features can support lower operating costs, especially for facilities running frequent batches throughout the year.
Centralized intelligent control improves recipe repeatability and allows equipment status to be observed from one system. Remote monitoring and multilingual options are additional benefits for export plants, multi-shift operations, and companies with distributed technical teams.
The BLK-FD-30 is designed for easier workshop layout, but proper planning remains essential. The equipment’s overall dimensions and weight must be considered before delivery. The building should provide a suitable route from the unloading area to the final installation position.
Floor strength and levelness should be checked. The 14.5-tonne equipment weight may be distributed across a large base, but the actual load distribution and foundation requirements must be confirmed with the manufacturer and a qualified structural professional.
Service access is also necessary. Operators and maintenance personnel need sufficient space to inspect pumps, compressors, valves, electrical cabinets, sensors, seals, condensers, and heat-transfer circuits. Placing the unit too close to a wall may save space initially but increase maintenance time and future service costs.
Utility planning should include electrical power, cooling water or other cooling arrangements where required, drainage, compressed air if applicable, vacuum exhaust, ventilation, defrost provisions, and environmental conditions. The final utility list depends on the machine configuration, refrigerant system, heat-recovery options, local standards, and customer process.
The equipment can be customized in length, width, and height within engineering limits. Such customization can help match the machine to a particular workshop or production line. However, dimensional changes may affect internal shelf arrangement, refrigeration capacity, transport logistics, and structural design. Customization should therefore be completed during the technical proposal stage rather than after fabrication has begun.
Reliable freeze-drying production depends on a consistent maintenance program. The operator should inspect chamber seals, door mechanisms, vacuum lines, filters, valves, refrigeration components, heat-transfer circuits, sensors, and control-system alarms according to the manufacturer’s schedule.
Vacuum leaks are a common cause of poor performance. Even a small leak can increase pressure, extend the drying cycle, reduce condenser efficiency, and increase energy consumption. Regular leak testing and inspection of door gaskets, valve seats, pipe connections, and instrument fittings are therefore important.
Radiant panels should be kept clean and free from deposits that might interfere with heat transfer or product hygiene. Trays should be inspected for deformation, corrosion, sharp edges, and surface damage. Consistent tray condition helps maintain uniform contact and loading height.
Refrigeration maintenance should include checking compressor operation, refrigerant conditions, heat exchangers, oil systems where applicable, pressure controls, and condenser performance. Cold-recovery and heat-recovery circuits require additional inspection to ensure that valves, sensors, pumps, and heat exchangers function as intended.
The vacuum pump should be maintained according to its specific design. Oil condition, filters, exhaust arrangements, seals, and operating temperatures should be monitored. If the system uses an oil-free pump or another specialized configuration, the maintenance procedure will differ.
Control-system maintenance includes backup of recipes and data, verification of sensor calibration, alarm testing, software access control, and inspection of electrical components. Remote-monitoring functions should be tested periodically rather than assumed to be available during an emergency.
Every material requires a suitable freeze-drying recipe. Equipment capacity alone cannot determine the correct shelf temperature, chamber pressure, freezing rate, hold time, primary drying duration, or secondary drying temperature.
The freezing stage determines the ice-crystal structure that later becomes the pore structure of the dried product. Faster freezing may create smaller ice crystals, while slower freezing may create larger channels. The preferred structure depends on the product’s texture, rehydration behavior, appearance, and stability.
Primary drying removes frozen water through sublimation. Shelf temperature and chamber pressure must be controlled so that the product remains below its critical temperature or collapse temperature. If too much heat is supplied, the product may lose structure or develop shrinkage. If too little heat is supplied, the cycle may become unnecessarily long.
Secondary drying removes more tightly bound moisture. The shelf temperature may be increased according to the product’s tolerance and final moisture requirement. This stage affects storage stability, texture, reconstitution, and residual moisture.
Drying endpoint can be evaluated using product temperature, pressure response, capacitance manometers, comparative pressure measurement, process trends, sample testing, or other validated methods. The best approach depends on the product and quality system.
Before full-scale production, the buyer should conduct laboratory or pilot studies and then confirm the process in the BLK-FD-30. Scale-up may require adjustments because heat transfer, vapor flow, product loading, and chamber dynamics change with batch size.
The BLK-FD-30 is suitable for businesses that need more capacity than an experimental freeze dryer can provide but are not ready for a very large production line. This position makes it useful for contract manufacturers, specialty food producers, agricultural processors, pharmaceutical-material suppliers, health-product companies, and research-oriented commercial facilities.
Its standard loading capacity can support regular batch production while leaving room for product diversification. A company may use the system for several products, provided that cleaning, allergen control, material compatibility, and recipe management are properly addressed.
The equipment can also serve as a bridge between product development and large-scale expansion. A processor can validate market demand, refine recipes, and establish production data before investing in a larger plant. If the business later expands, the operational experience gained from the medium-scale system can support equipment selection and factory design.
Energy-saving features can improve the cost structure over the machine’s operating life. For freeze-drying, the purchase price is only one part of the total cost of ownership. Electricity, maintenance, labor, downtime, product yield, cycle length, and rejected batches can have a greater impact over many years.
The possibility of customized dimensions is another commercial advantage. Many industrial buildings have unusual column spacing, restricted door heights, limited loading routes, or pre-existing utility locations. A machine that can be engineered around those conditions may reduce renovation work and make better use of the available facility.
Before ordering the BLK-FD-30, buyers should prepare a detailed technical brief. The brief should describe the product form, batch mass, initial moisture, final moisture, loading height, tray dimensions, target cycle time, annual production, operating shifts, cleaning method, packaging format, and applicable regulations.
The buyer should request confirmation of condenser capacity, refrigeration performance, shelf-temperature range, shelf-temperature uniformity, vacuum-pump type, ultimate vacuum, pressure stability under load, defrost method, control-system functions, alarm logic, and data-recording capability.
For sensitive products, the buyer should ask for material trials using representative samples. Trial data should include freezing curves, product temperature profiles, pressure trends, cycle duration, final moisture, rehydration, appearance, texture, and microbiological or chemical quality where applicable.
The commercial proposal should identify standard equipment and optional equipment separately. Cold recovery is described as a standard configuration, while heat recovery requires customization. Heat pumps, economizers, loading systems, packaging interfaces, clean-in-place functions, special materials, and additional sensors may also affect the final price and delivery schedule.
Buyers should also clarify warranty terms, spare-parts availability, operator training, preventive-maintenance support, remote-service capability, installation responsibilities, commissioning procedures, and response times. For an industrial freeze dryer, after-sales service is an important part of the purchase decision.
The standard loading capacity is 300 kilograms. The system also has a stated liquid loading capacity of 600 liters. Actual production capacity varies according to material density, moisture content, tray depth, product shape, solids concentration, and the required drying cycle.
Yes. The equipment has a stated liquid loading capacity of 600 liters and can be configured for suitable liquid or semi-liquid products. The product formulation, tray filling method, freezing behavior, viscosity, foaming tendency, and final moisture target should be evaluated before production.
Its integrated design allows pre-freezing and drying to take place within the freeze dryer. A separate pre-freezing room is therefore not necessarily required for the standard process. Additional cold storage may still be useful for raw materials, finished products, production scheduling, or special process requirements.
The specified ultimate vacuum level is no more than 10 Pa. Actual pressure during a loaded production cycle depends on vapor release, condenser performance, vacuum-pump capacity, chamber sealing, product temperature, and the selected recipe.
The rectangular chamber is designed to improve workshop layout, match rectangular trays and radiant panels, reduce unused internal space, and support more flexible positioning within the production area. It may also reduce the footprint and utility demand required for a comparable loading capacity.
The panels contain separate parallel circuits for cooling and heating. The upper layer is used for cooling and the lower layer for heating. This arrangement is designed to provide more uniform shelf temperatures and more efficient transitions between freezing and drying stages.
The standard equipment is described as reducing energy consumption by approximately 10% to 15% compared with traditional equipment. Other integrated or customized configurations are associated with potential reductions of approximately 20% to 40%. Actual savings depend on product characteristics, cycle design, ambient conditions, operating frequency, utilities, and the selected recovery systems.
Cold recovery is identified as a standard configuration. Heat recovery requires customization. It should be designed according to the required heating temperature, available waste heat, process timing, and the customer’s utility system.
Length, width, and height can be customized within engineering and transportation limits. Dimensional customization should be evaluated together with shelf area, loading capacity, refrigeration requirements, structural design, installation access, and service clearances.
Applications include food, fruits and vegetables, medicinal herbs, health supplements, biological supplies, chemical materials, and other products that benefit from vacuum freeze-drying. Each application requires its own process development, material compatibility review, and quality validation.
Remote monitoring through a mobile application is supported. Multiple language options can also be customized. Buyers should confirm the exact software functions, data storage, network requirements, user permissions, and cybersecurity arrangements for their installation.
Buyers should verify vacuum performance, shelf-temperature uniformity, refrigeration capacity, condenser operation, control sequences, safety interlocks, alarms, energy-recovery functions, cleaning procedures, and representative product performance. Factory and site acceptance tests should be included in the project plan.
The BLK-FD-30 is a medium-scale industrial freeze dryer designed to combine practical production capacity with efficient use of space, energy, and labor. Its 30-square-meter freeze-drying area, 300-kilogram standard loading capacity, 600-liter liquid loading capacity, and ultimate vacuum level of no more than 10 Pa provide a strong foundation for commercial batch processing.
The integrated pre-freezing and drying structure reduces material transfers and supports process continuity. The rectangular chamber improves workshop flexibility and provides a better match for trays and radiant panels. Double-layer radiant panels with independent cooling and heating circuits are designed to improve thermal uniformity and control. Cold-energy recovery is supplied as a standard feature, while heat recovery and heat-pump options can further improve energy performance when matched to the application.
The equipment is supported by a manufacturer with experience in refrigeration and vacuum freeze-drying, an integrated engineering and service organization, institutional research partnerships, a reported portfolio of more than 100 national patents, international market experience, and a modern manufacturing base. These strengths are important when a buyer needs not only a machine but also process development, installation, commissioning, training, and long-term technical support.
As with any industrial lyophilizer, the final result depends on the relationship between equipment design and product characteristics. Buyers should confirm capacity, cycle time, energy consumption, product quality, and regulatory suitability through representative testing. When properly specified and validated, the BLK-FD-30 can provide a flexible and energy-conscious platform for medium-scale freeze-drying production.
1. Product technical specifications for BLK-FD-30 medium-sized freeze-drying equipment.
2. Manufacturer-provided materials concerning integrated pre-freezing and drying systems.
3. Manufacturer-provided information on rectangular chamber design and workshop space utilization.
4. Manufacturer-provided technical information on double-layer radiant panels and independent cooling and heating circuits.
5. Manufacturer-provided information on cold-energy recovery, heat recovery, integrated refrigeration, and economizer systems.
6. General principles of vacuum freeze-drying, sublimation, primary drying, secondary drying, and product-temperature control.
7. General engineering practices for industrial refrigeration, vacuum systems, pressure vessels, process automation, and equipment commissioning.
8. Manufacturer information concerning CE conformity, quality management certification, patent development, manufacturing facilities, and after-sales service.
2026/05/28
2026/05/28
2026/05/28
2026/05/28
Custom Industrial Lyophilizer Freeze Dryer Manufacturers
English
русский
Español
Français
Deutsch
عربى
