BLK-FD-30 Medium-Sized Freeze Dryer: High-Capacity, Energy-Efficient Batch Production Technology

Modern food, agricultural, pharmaceutical, biological, and chemical manufacturers require freeze-drying systems that combine product quality, production flexibility, energy efficiency, and dependable long-term operation. A freeze dryer is not simply a vacuum chamber with refrigeration equipment. It is an integrated production system in which freezing performance, vacuum stability, heat transfer, condenser capacity, shelf uniformity, control intelligence, cleaning access, and after-sales support all influence the final result.

The BLK-FD-30 is a medium-sized batch production freeze-drying system developed for manufacturers that need substantially higher capacity than laboratory or pilot equipment but do not yet require a very large continuous or industrial-scale installation. With a 30-square-meter freeze-drying area, a standard loading capacity of 300 kilograms, and a liquid loading capacity of up to 600 liters, the system is designed to support repeatable commercial production while maintaining a practical footprint for medium-sized processing facilities.

Its integrated pre-freezing and drying configuration enables materials to complete the freezing and drying processes inside one coordinated system. A rectangular chamber improves workshop layout and space utilization, while double-layer radiant panels with independent cooling and heating circuits support more uniform shelf temperatures. The standard cold recovery system further reduces energy demand compared with conventional equipment.

Manufactured by Jiangsu BoLaiKe Refrigeration Science and Technology Development Co., Ltd., the BLK-FD-30 represents the company’s approach to high-efficiency vacuum freeze-drying: combine in-house engineering, patented thermal technologies, intelligent controls, energy recovery, and application-oriented customization in one production platform.

1. The Role of Medium-Sized Freeze-Drying Equipment in Modern Production

Freeze-drying, also called lyophilization, removes water from a frozen material through sublimation under vacuum. Unlike conventional hot-air drying, the process can preserve the shape, color, aroma, structure, and rehydration characteristics of many sensitive products. Because the material is dried at low temperature and under controlled pressure, freeze-drying is suitable for products whose quality would deteriorate during ordinary thermal processing.

Small laboratory freeze dryers are useful for research, formulation development, and process testing. However, they often lack the capacity, automation, mechanical strength, and operating efficiency required for commercial production. At the other end of the market, very large industrial freeze dryers may offer exceptional throughput but require a major investment in building space, utilities, refrigeration infrastructure, and production management.

Medium-sized equipment occupies an important position between these two categories. It can provide commercial production capacity while allowing a company to scale its business progressively. The BLK-FD-30 is suited to manufacturers that need a flexible batch system for multiple products, seasonal production, contract processing, or the transition from pilot-scale validation to full commercial manufacturing.

Typical applications include freeze-dried fruits, vegetables, coffee, prepared foods, herbs, medicinal materials, health supplements, biological products, laboratory-derived materials, and selected chemical products. The correct process parameters depend on the material, its moisture content, formulation, layer thickness, density, and required final moisture level. The equipment is therefore designed not only around a nominal capacity but also around process adaptability.

A medium-sized freeze dryer must achieve several objectives simultaneously. It should provide enough tray area for meaningful batch output, maintain stable shelf temperatures throughout the chamber, remove sublimated vapor efficiently, support repeatable vacuum control, and avoid excessive energy consumption. It must also fit into the customer’s workshop without creating unnecessary difficulties for material handling, utility connections, sanitation, maintenance, and future expansion.

2. Main Technical Specifications of the BLK-FD-30

The BLK-FD-30 has a nominal freeze-drying area of 30 square meters. This working area provides the surface required for loading trays or other suitable product containers. The standard loading capacity is 300 kilograms, while the liquid loading capacity is stated as 600 liters. Actual production capacity can vary according to material density, loading thickness, formulation, freezing behavior, and the target drying cycle.

The complete unit has overall dimensions of approximately 7,600 × 2,200 × 3,300 millimeters and an overall weight of approximately 14.5 metric tons. These dimensions and weight should be considered during plant design, transport planning, foundation preparation, installation, and equipment positioning. The ultimate vacuum level is specified at no more than 10 pascals, supporting sublimation under controlled low-pressure conditions.

Technical item	BLK-FD-30 specification	Production significance
Freeze-drying area	30 square meters	Provides substantial tray area for medium-sized batch production
Standard loading capacity	300 kilograms	Supports commercial batch processing for many product categories
Liquid loading capacity	600 liters	Suitable for liquid or semi-liquid formulations subject to process conditions
Overall dimensions	7,600 × 2,200 × 3,300 millimeters	Allows planning for a compact, integrated installation
Overall weight	Approximately 14.5 metric tons	Requires suitable transport, foundation, and lifting arrangements
Ultimate vacuum level	No more than 10 pascals	Supports controlled sublimation and low-pressure drying

These specifications establish the equipment’s position as a commercial batch system rather than a laboratory machine. They also provide a basis for comparing the system with other freeze dryers. However, capacity figures alone do not tell the entire story. Two machines with similar shelf area may produce different results if their shelf temperature uniformity, condenser performance, vacuum stability, loading configuration, and control systems differ.

The BLK-FD-30 is engineered around the relationship between these factors. Its design combines a practical chamber size with integrated freezing and drying, energy recovery, square-chamber geometry, and double-layer radiant panels. The result is intended to be a balanced system for manufacturers that value both capacity and operating economy.

3. Integrated Pre-Freezing and Drying Design

One of the defining characteristics of the BLK-FD-30 is the integration of pre-freezing and drying functions. In a conventional arrangement, products may need to be frozen in a separate cold room or pre-freezer before being transferred to the freeze-drying chamber. This approach can create additional handling steps, increase exposure to temperature variation, and require duplicate refrigeration infrastructure.

By integrating the pre-freezing stage into the freeze dryer, the BLK-FD-30 allows materials to complete freezing and drying within a coordinated equipment platform. This configuration can simplify production flow and reduce the number of transfers between processing areas. Fewer transfers may also help reduce handling labor and the risk of product disturbance before drying.

An integrated design can be particularly valuable for delicate materials. Once a product has been frozen, unnecessary movement may cause cracking, deformation, melting at the surface, or changes in layer distribution. When the freezing and drying stages occur in the same chamber, the material can remain in a controlled environment as the process transitions from freezing to primary drying and then to final drying.

The integrated configuration also has implications for factory planning. Separate pre-freezing equipment requires floor space, refrigeration capacity, access routes, and additional operating procedures. A combined freeze-drying platform can reduce the duplication of systems and help manufacturers create a more direct material flow. According to the supplied product information, the unit can be placed into operation after on-site water and electrical connections are completed once assembly is finished.

This does not eliminate the need for professional installation. A 14.5-ton system requires appropriate foundation capacity, lifting equipment, utility design, ventilation, drainage, and commissioning. However, the integrated design can make the overall project easier to coordinate than a system that relies on separate freezing and drying rooms.

4. Rectangular Chamber Design and Workshop Utilization

Chamber geometry affects more than appearance. It influences tray arrangement, panel installation, usable volume, airflow behavior, insulation structure, maintenance access, and the amount of floor space needed for a given loading capacity. The BLK-FD-30 uses a rectangular chamber design intended to improve space utilization in medium- and small-scale production facilities.

Compared with a circular chamber of similar process area, a rectangular chamber can make more efficient use of the building envelope. Straight external walls are generally easier to align with workshop walls, material corridors, cleanroom partitions, and service zones. This can be advantageous when the customer has limited floor space or must integrate the freeze dryer into an existing production building.

The square or rectangular internal arrangement also pairs naturally with rectangular radiant shelves and trays. When the shape of the chamber, shelves, and trays is coordinated, fewer irregular gaps may remain around the usable loading area. This can increase the proportion of chamber volume used for actual product loading and improve the efficiency of the equipment footprint.

Another claimed advantage is more stable airflow and temperature distribution compared with circular chamber arrangements in comparable medium-sized applications. Stable thermal conditions are essential because products placed at different positions in the chamber should experience similar process conditions. Excessive variation can result in some trays being under-dried while others are over-processed.

The system’s dimensions can also be customized in length, width, and height according to project requirements. Customization is valuable when the customer must work around columns, low ceilings, restricted doors, existing conveyors, or a defined cleanroom boundary. It can also help align the equipment with a particular loading and unloading process.

Customization should be evaluated at the engineering stage rather than after manufacturing begins. Changes to the chamber dimensions can affect shelf area, refrigeration demand, vacuum system sizing, condenser performance, loading capacity, and transport arrangements. A qualified manufacturer should therefore confirm the final configuration through technical review, process requirements, and site information.

BLK-FD-30

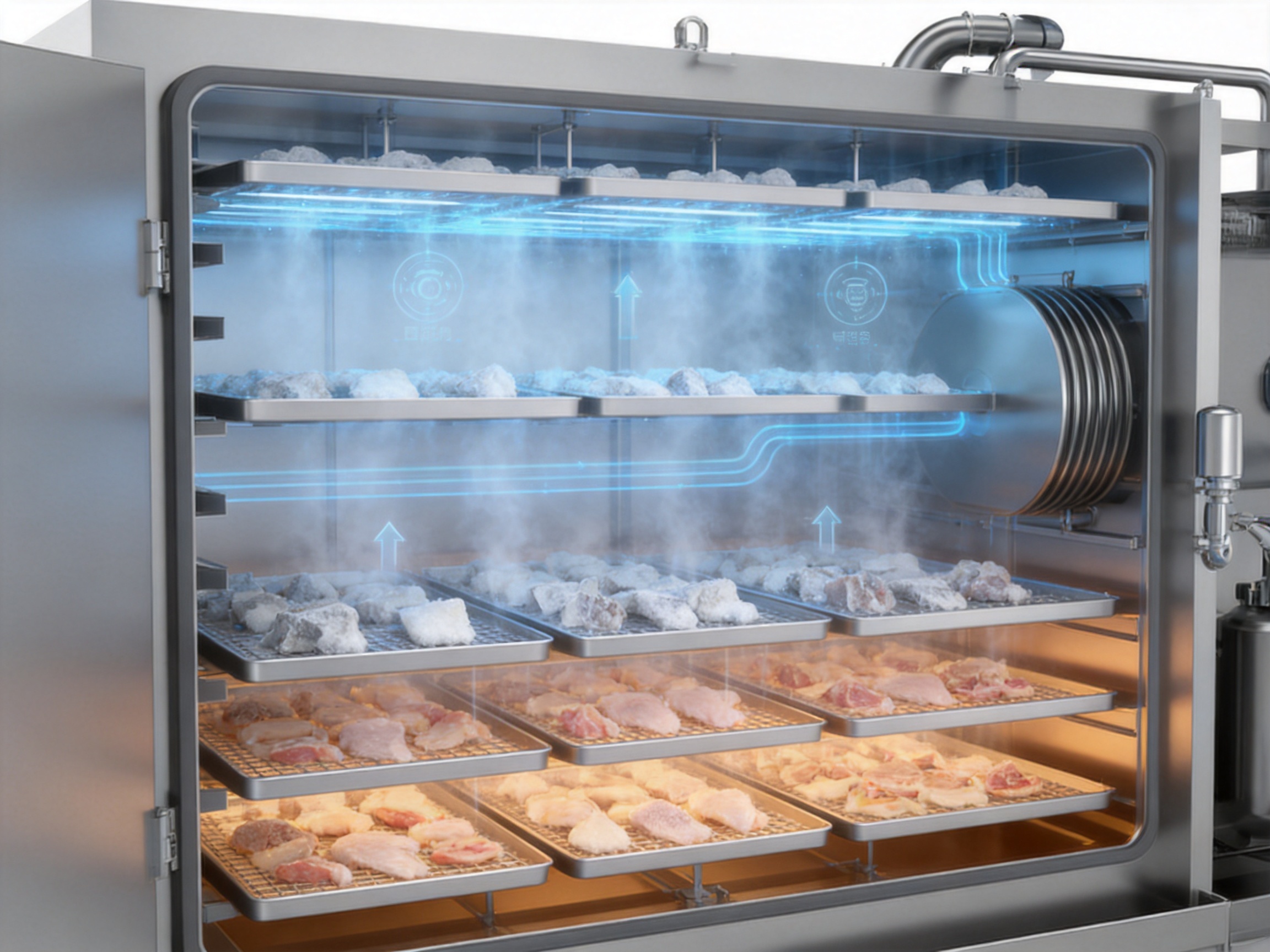

5. Double-Layer Radiant Panels for Improved Thermal Control

Heat transfer is central to freeze-drying. During primary drying, controlled heat must be supplied to the frozen product so that ice can sublime without causing excessive product temperature rise. During freezing, the same general thermal surfaces must support the removal of heat from the material. A freeze dryer that uses one thermal circuit for both functions may face compromises in response time, control accuracy, or operating flexibility.

The BLK-FD-30 is equipped with double-layer radiant panels and independent hot and cold circuits. The upper layer is used for cooling, while the lower layer is used for heating. This configuration allows the system to manage the freezing and drying stages through separate thermal pathways rather than relying on a single shared circuit for opposite operating requirements.

Independent circuits can improve the response of the system because the cooling and heating functions are organized for their respective duties. During freezing, the cooling circuit can remove heat from the product and shelves. During drying, the heating circuit can provide controlled energy for sublimation. The arrangement is intended to support more uniform shelf temperatures across the chamber and from one batch to the next.

Uniform shelves are particularly important when the chamber contains products with different positions, densities, or layer thicknesses. If a shelf has significant temperature variation, products near warmer areas may dry more quickly or reach a higher temperature than products near cooler areas. In sensitive foods, biological materials, and pharmaceutical-related applications, such variation may affect structure, potency, color, texture, or rehydration performance.

The double-layer panel design also contributes to the equipment’s ability to switch between cooling and heating processes in an integrated system. It is described as a proprietary or patented technology in the supplied information, with patent references including CN209030727U for radiant panels and CN204392676U for double radiant panels.

Patent ownership alone does not guarantee process results, but it indicates that the manufacturer has invested in developing a differentiated thermal architecture. The more important practical question is how the technology performs under the customer’s actual product conditions. For this reason, process validation, test batches, shelf mapping, and product analysis remain important before commercial operation.

Thermal Uniformity and Product Quality

Freeze-drying is often selected because the final product must retain high quality. Fruits and vegetables should maintain attractive shape and color. Herbs and medicinal materials should preserve valuable characteristics. Prepared foods should rehydrate effectively. Biological materials may require carefully controlled temperature exposure. The heating surface is therefore not merely a utility component; it directly affects the process window.

The BLK-FD-30’s panel configuration is designed to support consistent heat transfer across the loading area. When combined with a stable vacuum and suitable product loading, more consistent shelf temperature can help reduce batch-to-batch variation. It can also make recipe development easier because the process engineer can work with a more predictable thermal environment.

Temperature uniformity should be verified during commissioning. Sensors may be placed at different shelf locations to evaluate the actual distribution under cooling and heating conditions. The results can be used to establish operating limits, loading rules, and product-specific recipes.

6. Cold Recovery and Heat Recovery Technologies

Energy consumption is one of the most important operating costs in freeze-drying. The process requires refrigeration to freeze the product and condense water vapor, as well as heating during sublimation and final drying. Vacuum pumps, compressors, circulation systems, control equipment, and auxiliary utilities also contribute to total energy demand.

The BLK-FD-30 is standard-equipped with a residual cold recovery system. The supplied product information states that this design can reduce energy consumption by approximately 10% to 15% compared with traditional equipment. Additional company materials describe energy-saving performance in broader terms, including potential reductions of approximately 20% to 40% depending on system configuration and operating conditions. Actual savings depend on the product, batch cycle, ambient conditions, loading rate, utility prices, and comparison equipment.

Cold recovery works by using available cooling energy more effectively instead of allowing it to be discharged after a single use. In the described system, cold energy from the refrigeration process is recycled to pre-cool the next refrigeration stage. This can reduce the compressor load and improve the utilization of the refrigeration circuit.

The company identifies this technology with patent reference CN206047043U and states that it can reduce overall compressor load by approximately 20% to 30% in suitable operating conditions. The practical benefit is not limited to electricity consumption. A lower compressor load may also reduce thermal stress on refrigeration components and contribute to more stable operation.

Heat recovery is available as a customization option. During sublimation and heating, excess heat that might otherwise be discharged can be recovered and reused for material drying. The supplied information references patents CN209030727U and CN204392676U for radiant and double-radiant panel technology, and CN119468635B for a heat recovery system.

Heat recovery is especially relevant when the product requires moderate heating temperatures. The provided information states that when the required material heating temperature is no more than 35 degrees Celsius, a very high proportion of energy consumption may be saved under the applicable system conditions. It also indicates that when the required material heating temperature is below 80 degrees Celsius, approximately 10 percent of energy consumption may be saved through a waste-heat-enhanced vacuum freeze-drying system.

These figures should be treated as application-dependent engineering estimates rather than universal guarantees. A technical proposal should identify whether heat recovery is included, what heat source is available, the required temperature range, and how savings will be measured. Even so, the ability to incorporate both cold and heat recovery provides a stronger platform for reducing lifecycle operating costs than equipment designed only around basic refrigeration and vacuum functions.

Integrated Refrigeration Architecture

The company also describes an integrated energy structure in which cooling and drying processes share a refrigeration circuit. Traditional systems may use separate energy systems for cold storage and freeze-drying chambers. Such duplication can increase investment, equipment losses, maintenance requirements, and operating complexity.

An integrated structure can reduce the number of separate refrigeration systems and allow the equipment to coordinate the available cooling capacity more efficiently. The approach is identified with patent reference CN205784249U. For a medium-sized producer, reduced system duplication may be valuable because it lowers the amount of auxiliary equipment required around the main freeze dryer.

System integration must nevertheless be balanced with redundancy and serviceability. Customers should discuss backup strategies, critical component availability, maintenance access, refrigerant requirements, and the effect of a component fault on production. A well-engineered integrated system should not only reduce energy loss but also provide clear service procedures and reliable safety controls.

7. Heat Pump and Economizer Performance

The equipment materials identify a heat pump and economizer system that can increase compressor coefficient of performance to a stated range of 4.8 to 5.9. The coefficient of performance, or COP, expresses the useful heating or cooling effect delivered in relation to the energy consumed. A higher COP generally indicates better energy efficiency under the defined operating conditions.

The stated system is described as improving energy efficiency by approximately five to six times compared with traditional freeze-drying equipment. Such a comparison depends on the reference system, operating temperature, refrigerant circuit design, ambient conditions, and measurement method. Customers should request a clear test basis when comparing equipment from different suppliers.

Even with this qualification, high-efficiency compressor operation can make a significant difference over the life of a freeze dryer. Freeze-drying cycles may run for many hours, and a commercial plant may operate several batches each week. Small improvements in power demand can therefore accumulate into meaningful annual savings.

The heat pump and economizer arrangement also supports the wider energy strategy of the BLK-FD-30. Rather than treating refrigeration, heating, and vapor condensation as unrelated functions, the system is designed to manage them as connected energy flows. This is consistent with the trend toward lower-carbon manufacturing and more efficient industrial utility systems.

8. Energy Savings Compared with Conventional Freeze Dryers

Conventional freeze dryers can perform the basic requirements of freezing, vacuum drying, and vapor condensation, but their energy use may be increased by duplicated refrigeration systems, inefficient compressor loading, poor heat recovery, or uncontrolled heat discharge. A manufacturer comparing systems should therefore examine the entire process rather than focusing only on the initial purchase price.

The BLK-FD-30 offers several features intended to improve its operating economy:

First, integrated pre-freezing and drying can reduce the need for separate cold-storage equipment and transfer operations.

Second, the standard cold recovery system reuses available refrigeration energy and reduces compressor loading.

Third, the double-layer radiant panel arrangement separates cooling and heating circuits, supporting more targeted thermal control.

Fourth, the integrated refrigeration structure can reduce duplication between cold storage and freeze-drying functions.

Fifth, optional heat recovery can reuse waste heat for drying under suitable temperature conditions.

Sixth, the heat pump and economizer system is designed to improve compressor efficiency.

According to the supplied company information, energy consumption may be reduced by approximately 20 percent to 40 percent in applicable configurations, while a single-batch cycle may be shortened by approximately 15 percent to 25 percent. The product summary specifically states a 10 percent to 15 percent reduction compared with traditional equipment through the standard residual cold recovery system. The differences between these figures likely reflect different system configurations and comparison conditions.

For a purchasing decision, energy claims should be verified through a defined acceptance test. The test should record product mass, initial moisture, final moisture, freezing temperature, shelf temperature profile, chamber pressure, batch duration, compressor power, vacuum pump power, auxiliary consumption, and ambient conditions. A transparent measurement method helps the customer estimate the actual return on investment.

Energy efficiency should also be evaluated together with throughput. A system that consumes slightly more power but completes a batch significantly faster may have a lower energy cost per kilogram. Similarly, a system that achieves more uniform drying may reduce rework, rejected batches, and excessive secondary drying. The most meaningful comparison is usually energy consumption per unit of saleable product.

9. Batch Processing Capacity by Material Type

The stated 300-kilogram standard loading capacity should not be interpreted as an identical capacity for every material. Bulk density, water content, tray loading height, viscosity, particle size, formulation, and desired final moisture all affect the actual mass that can be processed per batch.

The product information describes a 30-square-meter tray area with a loading height of approximately 35 millimeters. Under this arrangement, material processing capacity varies according to density and product category. The supplied capacity model indicates the following approximate ranges:

Material category	Approximate processing range	Important variables
Food category	Approximately 450 to 600 kilograms	Bulk density, moisture content, particle size, and loading uniformity
Solution category	Approximately 300 to 450 kilograms	Solids concentration, viscosity, freezing behavior, and layer thickness
Fruits and vegetables	Approximately 200 to 300 kilograms	Product shape, water content, cut size, and structural sensitivity

These values are indicative and should be adjusted according to material density and the customer’s process requirements. For example, sliced fruit may occupy more tray volume per kilogram than a concentrated liquid. A porous material may require more space than a dense formulation. A product with high free-water content may require a longer primary drying phase and greater condenser demand even if its mass is within the nominal limit.

Before ordering, customers should provide representative samples or complete product data whenever possible. The manufacturer can then evaluate freezing behavior, shelf loading, drying time, condenser requirements, vacuum performance, final moisture, and rehydration quality. Pilot testing is particularly important when several products will share the same equipment.

10. Applications Across Multiple Industries

Food and Prepared Foods

Freeze-dried food products can offer long shelf life, low weight, convenient storage, and rapid rehydration. The BLK-FD-30 can be used for fruits, vegetables, prepared meals, ingredients, snacks, dairy-related materials, and other suitable foods. The low-temperature process can help preserve color, aroma, shape, and texture compared with more aggressive thermal drying methods.

Food manufacturers may use a medium-sized freeze dryer to develop premium products, produce private-label goods, supply specialty retailers, or process seasonal harvests. The batch format is useful when multiple recipes or product formats must be manufactured in the same facility.

Fruits and Vegetables

Fruits and vegetables are often structurally sensitive because their shape and cellular arrangement influence appearance and texture after drying. Proper freezing is important because ice crystal size can affect the final pore structure. A controlled drying cycle can help maintain a light, porous product that rehydrates effectively.

Examples may include berries, apple pieces, mango, banana, vegetables, mushrooms, herbs, and mixed ingredient products. Actual loading capacity depends heavily on whether the products are whole, sliced, diced, pureed, or combined with other ingredients.

Medicinal Materials and Health Supplements

Medicinal herbs, extracts, nutritional ingredients, and health supplement components may benefit from low-temperature drying when heat exposure could affect sensitive compounds or sensory characteristics. The equipment’s controlled vacuum and shelf temperature management can support a more predictable process than open-air or high-temperature drying.

Manufacturers in this sector should define material handling, cleaning, validation, traceability, and documentation requirements before installation. Where products are intended for regulated markets, the system configuration and manufacturing records should be aligned with applicable quality standards.

Biological Products

Freeze-drying is widely used for selected biological materials because it can help stabilize products by removing water under controlled conditions. The correct formulation and cycle may be highly product-specific. Shelf temperature uniformity, chamber pressure stability, condenser capacity, and accurate recipe control are particularly important in these applications.

The BLK-FD-30 may serve biological production or development applications when the process and regulatory requirements are properly evaluated. Customers should confirm whether the standard configuration meets their requirements for sterilization, cleanability, data recording, validation, and containment.

Chemical and Research Materials

Some chemical materials and research products require low-temperature solvent or water removal to preserve structure or prevent thermal degradation. A medium-sized batch system provides more capacity than a laboratory unit while retaining flexibility for different formulations. Material compatibility, solvent safety, vacuum pump selection, condenser temperature, and explosion-protection requirements must be reviewed before processing non-aqueous products.

11. Intelligent Central Control System

A modern freeze dryer must provide more than mechanical refrigeration and vacuum generation. Operators need a central interface that can coordinate chamber temperature, shelf temperature, pressure, refrigeration, heating, vacuum pumping, condenser operation, alarms, and recipe steps.

The BLK-FD-30 is equipped with an intelligent central control system intended to manage the operational status of connected equipment. A centralized system can simplify batch operation by bringing key parameters into one control structure. It can also help standardize recipes and reduce the risk of inconsistent manual adjustments.

Remote monitoring through a mobile application is supported according to the supplied information. Remote access can help production managers review equipment status, receive alerts, and respond more quickly when a batch requires attention. This feature is particularly valuable for facilities with multiple machines or production teams operating across different shifts.

Multiple language options can be customized. Multilingual interfaces are useful for export projects and international production sites because they allow operators, maintenance teams, and managers to work with a familiar control language. Clear alarms and logical screen design are important for reducing operator errors.

An intelligent control system should also support data recording. Important information may include batch identification, recipe version, shelf temperature, chamber pressure, condenser temperature, vacuum status, cycle time, alarm history, and operator actions. The exact data architecture depends on the selected configuration and the customer’s software requirements.

Automation cannot replace process knowledge. Operators still need training in loading, freezing, vacuum operation, recipe selection, cleaning, inspection, and emergency procedures. However, a well-designed control system can make the process more repeatable and provide better visibility into equipment performance.

12. Manufacturing Strengths and Engineering Capabilities

The performance of a freeze dryer depends heavily on the manufacturer’s engineering capabilities. A machine may contain high-quality compressors, pumps, valves, sensors, and control components, but these parts must be correctly selected, integrated, assembled, tested, and supported.

Jiangsu BoLaiKe Refrigeration Science and Technology Development Co., Ltd. was established in 2014 in Changzhou, Jiangsu, China. Its predecessor entered the refrigeration industry in 2003, providing a longer background in refrigeration engineering before the current company focused on vacuum freeze-drying technology and related equipment.

The company describes itself as a national high-tech enterprise specializing in the research, development, manufacture, and sale of vacuum freeze-drying and refrigeration equipment. Its products serve food, fruits and vegetables, medicinal herbs, health supplements, biological materials, chemical materials, and other industries.

A major strength is the company’s integrated team structure. Research and development, engineering, sales, installation, commissioning, and after-sales service are described as connected parts of the organization. This can be beneficial because freeze-drying projects often require technical discussion before purchase, site coordination during installation, process support during commissioning, and maintenance assistance after production begins.

The company also reports long-term cooperation with universities and research institutions, including agricultural and food-related research organizations. Such cooperation can contribute to process development, equipment improvement, material testing, and the transfer of technical knowledge into commercial manufacturing.

More than 100 national invention and utility model patents are reported by the company. Several technologies associated with the BLK-FD-30, including radiant panels, double radiant panels, integrated energy structures, cold recovery, heat recovery, and economizer systems, are identified by patent numbers in the supplied materials.

Patent activity can be an indicator of engineering investment, but customers should also evaluate manufacturing quality, testing procedures, documentation, spare-parts supply, service response, and references from comparable applications. The strongest supplier is not necessarily the one with the most claims; it is the one that can consistently translate engineering concepts into reliable production equipment.

13. Quality Management and International Standards

The BLK-FD-30 is described as being designed according to international specifications. The supplied product information identifies European Union CE certification and compliance with mechanical health and safety standards, as well as China quality management system certification.

CE-related compliance is important for customers exporting equipment to markets that require conformity with applicable European directives and safety requirements. It may involve assessment of machinery safety, electrical systems, pressure-related risks, documentation, labeling, and technical files, depending on the final equipment configuration.

A quality management system provides a framework for controlling design, procurement, manufacturing, inspection, corrective action, and customer feedback. In freeze-dryer manufacturing, quality management should cover pressure-vessel work, welding, insulation, refrigeration piping, electrical wiring, instrumentation, software, factory acceptance testing, packaging, and installation support.

Customers should request the certification scope and relevant technical documentation during the procurement process. They should also confirm whether the supplied certificate applies to the exact equipment model and final configuration. For regulated industries, additional requirements may include hygienic design, material certificates, surface finish, validation documents, electronic records, and site acceptance testing.

14. Manufacturing and Factory Acceptance Considerations

Advanced manufacturing begins with accurate engineering. The chamber, shelves, refrigeration system, vacuum system, condenser, piping, controls, insulation, and support frame must be designed as a coordinated unit. Dimensional accuracy is essential because poor alignment can affect door sealing, shelf installation, tray loading, and maintenance access.

Fabrication quality is particularly important for the chamber and radiant panels. Welds should be consistent and suitable for the pressure and temperature conditions. Internal surfaces should be designed for the intended cleaning method and product environment. Thermal insulation should minimize heat leakage and condensation. External panels should protect internal systems while allowing service access.

Refrigeration assembly requires correct component selection, clean piping practices, pressure testing, leak testing, evacuation, refrigerant charging, and performance verification. Vacuum systems require careful attention to sealing, valve quality, pump capacity, condenser temperature, and the elimination of unnecessary dead volume.

Electrical and control assembly should follow approved schematics and include appropriate protection, grounding, emergency stops, alarms, interlocks, and sensor calibration. Software should be checked against the specified operating sequences. Every major subsystem should be tested before the equipment is shipped.

A factory acceptance test may include chamber leak testing, vacuum pull-down testing, shelf temperature mapping, freezing performance checks, heating performance checks, condenser performance verification, control system testing, alarm verification, and inspection of external dimensions. A customer may also request a water test, empty-cycle test, or product trial using representative material.

Because the BLK-FD-30 is a large and heavy system, shipping and installation planning should begin early. The customer must verify door openings, ceiling height, route clearances, lifting points, foundation capacity, utility locations, drainage, and service access. The manufacturer can provide dimensional drawings and connection requirements for site preparation.

15. Installation, Commissioning, and After-Sales Support

Once the equipment reaches the customer’s facility, installation involves more than positioning the chamber. The refrigeration circuit, vacuum system, water connections, electrical supply, control network, drainage, ventilation, and safety systems must be connected and checked.

The product information states that after assembly, on-site connection of water and electricity is required for operation. The exact utilities depend on the final configuration. Customers should confirm cooling-water requirements, electrical voltage and frequency, power demand, compressed air requirements if applicable, drainage design, environmental temperature, and ventilation needs.

Commissioning should include empty-machine testing followed by product trials. The first product trials help determine freezing time, shelf temperature settings, chamber pressure, primary drying duration, secondary drying requirements, and final moisture. Operators should receive training in routine operation, recipe management, cleaning, inspection, troubleshooting, and emergency shutdown.

After-sales support is especially important for freeze-drying equipment because the system contains refrigeration, vacuum, electrical, mechanical, and software components. A reliable support program should include spare-parts recommendations, maintenance schedules, remote technical assistance, service documentation, and escalation procedures for urgent problems.

The company’s integrated team covering installation, commissioning, and after-sales service is a practical advantage for international customers. A single technical organization can retain knowledge of the equipment from design through operation. This may reduce communication gaps between the original specification, the delivered machine, and the customer’s production requirements.

16. Advantages Over Conventional and Competing Designs

The BLK-FD-30 competes in a market that includes basic batch freeze dryers, separate pre-freezing systems, circular-chamber designs, laboratory-to-production systems, and large-scale industrial units. Its main advantages arise from the combination of features rather than from one isolated specification.

Compared with a basic freeze dryer, the BLK-FD-30 offers integrated pre-freezing and drying, energy recovery, a double-layer radiant panel system, centralized controls, and a rectangular chamber configuration. These features can improve process integration, energy management, and workshop utilization.

Compared with equipment that uses a separate pre-freezer, the integrated design may reduce product transfers, duplicated refrigeration, and additional floor-space requirements. This can simplify production planning and reduce handling risks for fragile materials.

Compared with circular chambers of similar capacity, the rectangular chamber may provide a more efficient footprint and a more natural arrangement for rectangular trays and radiant shelves. This can be especially useful for facilities with limited floor space or strict material-flow requirements.

Compared with conventional single-circuit radiant shelves, the double-layer panels with independent cooling and heating circuits are intended to improve thermal control and shelf uniformity. This may support more consistent batch quality and more efficient transitions between process stages.

Compared with machines lacking recovery technology, the standard cold recovery system and optional heat recovery can reduce wasted energy. Over the equipment’s service life, lower utility consumption may offset part of the initial investment difference, particularly where electricity costs are high or the equipment operates frequently.

Compared with suppliers that only deliver hardware, a manufacturer with in-house research, engineering, installation, commissioning, and after-sales capabilities can offer a more complete project solution. This is important for customers who need a customized chamber, product trials, process development, or international installation support.

17. Selecting the Correct Configuration

The BLK-FD-30 is a flexible platform, but every project should begin with a clear process definition. Customers should identify the product type, annual production target, batch size, operating days, loading format, target moisture, required shelf temperature range, freezing method, drying cycle, cleaning method, and regulatory environment.

The customer should also determine whether products will be loaded as liquids, semi-liquids, pieces, powders, or trays of prepared material. The stated liquid capacity of 600 liters does not automatically mean that every liquid can be loaded at that volume. Viscosity, solids concentration, foaming behavior, freezing point, and layer thickness may affect the safe and efficient loading volume.

Heat recovery should be discussed if the facility has suitable heating requirements and if the expected energy savings justify the added complexity. Customers should request a comparison between standard cold recovery and a configuration that includes both cold and heat recovery.

Customization of length, width, and height should be evaluated against the available workshop. A smaller footprint may be desirable, but reducing dimensions can also affect tray area and internal arrangement. The best configuration is the one that balances capacity, access, loading efficiency, serviceability, and future expansion.

Control-system requirements should also be defined in advance. Customers may require mobile monitoring, multiple languages, data export, batch records, user permissions, alarm history, integration with factory management software, or other features. These requirements should appear in the technical specification and acceptance criteria.

18. Practical Operating Recommendations

To obtain reliable performance, operators should load trays evenly and avoid excessive product depth. Uneven loading can affect freezing time, vapor flow, heat transfer, and final moisture distribution. The stated 35-millimeter loading height is a reference for capacity evaluation and may not be suitable for every product.

Products should be prepared consistently. Piece size, slice thickness, formulation, concentration, and initial temperature should be controlled as much as possible. Variations in raw material can produce variations in drying time even when the equipment operates correctly.

The chamber door and seals should be inspected regularly. Vacuum performance depends on the integrity of the chamber, valves, piping, and seals. Leaks can increase cycle time, reduce process stability, and place additional demand on the vacuum system.

Refrigeration components, pumps, sensors, filters, electrical connections, and safety devices should be maintained according to the manufacturer’s schedule. Preventive maintenance is generally less costly than responding to an unexpected failure during a production batch.

Recipes should be reviewed periodically. A recipe developed for one product may not be suitable for another product with a different density or moisture content. Operators should record batch results and use the information to refine freezing, primary drying, and secondary drying parameters.

19. Return on Investment and Total Cost of Ownership

The purchase price is only one part of the financial evaluation. A freeze dryer’s total cost of ownership includes installation, utilities, labor, maintenance, spare parts, product losses, downtime, cleaning, validation, and eventual upgrades.

The BLK-FD-30 can contribute to financial performance through its batch capacity, integrated configuration, energy-saving systems, and flexible application range. A manufacturer may use one machine for several products, increasing utilization throughout the year. Seasonal fruits, prepared foods, medicinal materials, and specialty ingredients may be processed at different times, depending on the facility and market.

Energy savings can become particularly significant when the equipment operates frequently. Cold recovery reduces unnecessary compressor loading, while heat recovery may lower the demand for additional heating. The integrated structure may reduce the need for separate pre-freezing infrastructure. These advantages should be calculated using the customer’s expected operating schedule and local utility prices.

Product quality also affects return on investment. Better uniformity can reduce rejected batches and rework. More predictable drying can shorten development time for new products. Remote monitoring can reduce response time and limit the impact of alarms. A reliable service network can reduce downtime and protect production commitments.

A complete investment model should compare the BLK-FD-30 not only with another machine’s purchase price but also with its expected annual output, energy use per kilogram, labor requirements, maintenance cost, usable floor space, and service support.

20. Frequently Asked Questions

What type of equipment is the BLK-FD-30?

The BLK-FD-30 is a medium-sized batch production freeze dryer with a 30-square-meter freeze-drying area. It integrates pre-freezing and drying functions and is intended for commercial processing across food, agricultural, medicinal, biological, and chemical applications.

What is the standard loading capacity?

The standard loading capacity is 300 kilograms. The liquid loading capacity is stated as 600 liters. Actual capacity depends on the material’s density, moisture content, loading height, formulation, and process requirements.

Can the system process fruits and vegetables?

Yes. The equipment is suitable for freeze-drying many fruits and vegetables, including whole, sliced, diced, or prepared products. The recommended batch mass depends on product shape, water content, density, and tray arrangement.

What is the ultimate vacuum level?

The specified ultimate vacuum level is no more than 10 pascals. Actual operating pressure during a product cycle depends on the product, sublimation rate, condenser performance, vacuum system, and selected recipe.

What is the advantage of the rectangular chamber?

The rectangular chamber is designed to use workshop space efficiently and to pair effectively with rectangular radiant panels and trays. It may require a smaller footprint than a comparable circular chamber and can provide more flexible layout options for medium-sized facilities.

How does the double-layer radiant panel work?

The panel contains separate thermal layers and independent circuits. The upper layer is used for cooling and the lower layer for heating. This arrangement is intended to improve shelf temperature uniformity and provide more effective control during freezing and drying.

Is cold recovery included as standard?

Yes. The product information states that a residual cold recovery system is included as standard. The system recycles available cooling energy and is intended to reduce energy consumption and compressor loading.

Is heat recovery included?

Heat recovery is described as a customization option rather than a standard configuration. Customers should request a technical evaluation to determine whether heat recovery is suitable for their product, heating temperature, utility system, and operating schedule.

Can the dimensions be customized?

Length, width, and height can be customized according to the project requirements. Any dimensional change should be reviewed together with tray area, loading capacity, refrigeration performance, vacuum requirements, transport, and installation access.

Does the equipment support remote monitoring?

The intelligent central control system supports remote equipment monitoring through a mobile application according to the supplied information. The specific functions, network requirements, and user permissions should be confirmed in the final technical specification.

Is multilingual control available?

Multiple language options are available for customization. The preferred language and interface requirements should be agreed upon before production.

What certifications are associated with the equipment?

The supplied information identifies European Union CE certification and China quality management system certification. Customers should request the relevant certificates and confirm that they apply to the final equipment configuration and intended market.

What should be prepared before installation?

The customer should prepare a suitable foundation, lifting and transport route, electrical supply, water connections, drainage, ventilation, service clearance, and any required cleanroom or production-area infrastructure. Site drawings and utility requirements should be confirmed with the manufacturer before delivery.

Can one BLK-FD-30 process different products?

Yes, the batch design can support multiple products when their material compatibility, cleaning requirements, loading method, and process parameters are suitable. Each product should have a validated recipe, and cross-contamination controls should be established where necessary.

Conclusion

The BLK-FD-30 is designed as a practical bridge between pilot-scale freeze-drying and large industrial production. Its 30-square-meter freeze-drying area, 300-kilogram standard loading capacity, 600-liter liquid capacity, and integrated pre-freezing and drying design provide a substantial platform for commercial batch manufacturing.

Its main competitive strengths come from the integration of several technologies: a rectangular chamber for efficient workshop layout, double-layer radiant panels with independent cooling and heating circuits, standard cold recovery, optional heat recovery, an integrated refrigeration structure, high-efficiency heat pump and economizer technology, and intelligent central control with remote monitoring options.

These features are supported by the manufacturer’s experience in refrigeration and vacuum freeze-drying, reported patent portfolio, international project orientation, engineering capabilities, and integrated installation and after-sales service. The company’s reported partnerships with research institutions and its focus on food, agricultural, medicinal, biological, and chemical applications further support its role as an application-oriented equipment supplier.

As with any freeze-drying system, final performance depends on the material, process recipe, loading method, utility conditions, operator training, and maintenance program. Customers should validate capacity and energy performance using representative products and clearly defined acceptance criteria. When properly configured, installed, and operated, the BLK-FD-30 offers a balanced solution for manufacturers seeking commercial capacity, controlled product quality, flexible application, and lower long-term operating costs.

References

1. Product technical specification for the BLK-FD-30 medium-sized batch production freeze-drying equipment.

2. Manufacturer-provided information on integrated pre-freezing and drying systems, rectangular chamber design, and customized equipment dimensions.

3. Manufacturer-provided technical information on double-layer radiant panels and independent cooling and heating circuits.

4. Patent reference CN209030727U, radiant panel technology.

5. Patent reference CN204392676U, double radiant panel technology.

6. Patent reference CN205784249U, integrated energy structure.

7. Patent reference CN206047043U, cold energy recovery system.

8. Patent reference CN119468635B, heat recovery technology.

9. Patent reference CN209612254U, heat pump and economizer system.

10. Manufacturer-provided information on CE certification, quality management certification, engineering services, and international applications.

11. General principles of vacuum freeze-drying, sublimation, shelf temperature control, condenser operation, and batch process validation.

Product: BLK-FD-30
